9 mm Ballistic Test Images and test data!

This post is the result of hundreds of hours of work by “Tom from Northfield Township”. Over that past several years I have grown to admire Tom in his dedication to objective testing especially as it relates to ballistic testing. We started with the .380 acp, continued with the 40 S&W and now with the 9 mm Luger / Parabellum.

The 9 mm has again risen to the top of the defensive handgun hierarchy and will assist you in selecting effective ammunition for your needs.

Tom spent a career at Ford Motor Company as a test technician and now applies those same techniques to ammunition testing, which I am honored to share with you here on TriggerTalk Radio.

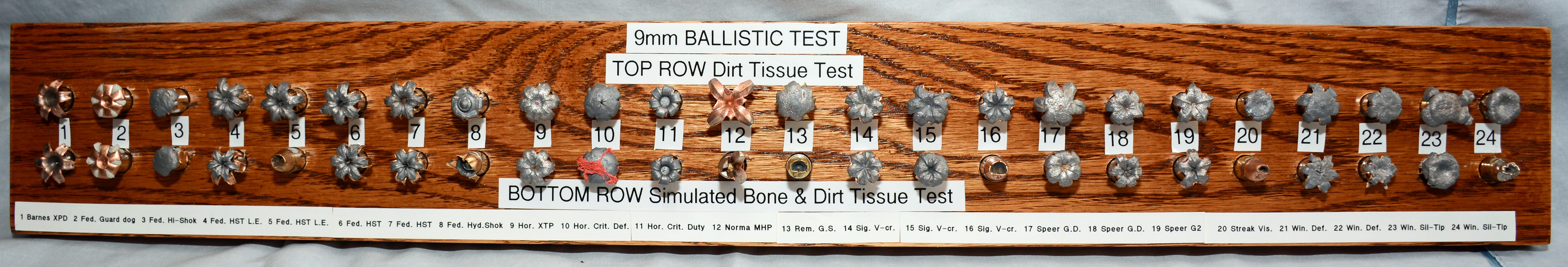

Tom has tested 24 different types of 9 mm ammo for ballistic terminal performance in a media that he has developed that simulate both tissue, and bone with tissue.

The results will be shard with pictures as well as data in a .pdf file and a downloadable Excel spreadsheet that you can sort by any parameter you desire.

Now the test data:

Link to 9mm test data.pdf

Link to Spreadsheet of 9mm test data

Link to Apple Pages file of test Data

Download the appropriate file from the links above for all the actual measurements of:

  • Expansion
  • Penetration
  • Velocity.

Please note the Feet per second number was measured with a Chronograph at a distance of 9 feet from the muzzle and represents the velocity of the projectile when it actually entered the test media. This number more closely represents the velocity in a self defense situation than measuring the velocity at the muzzle.

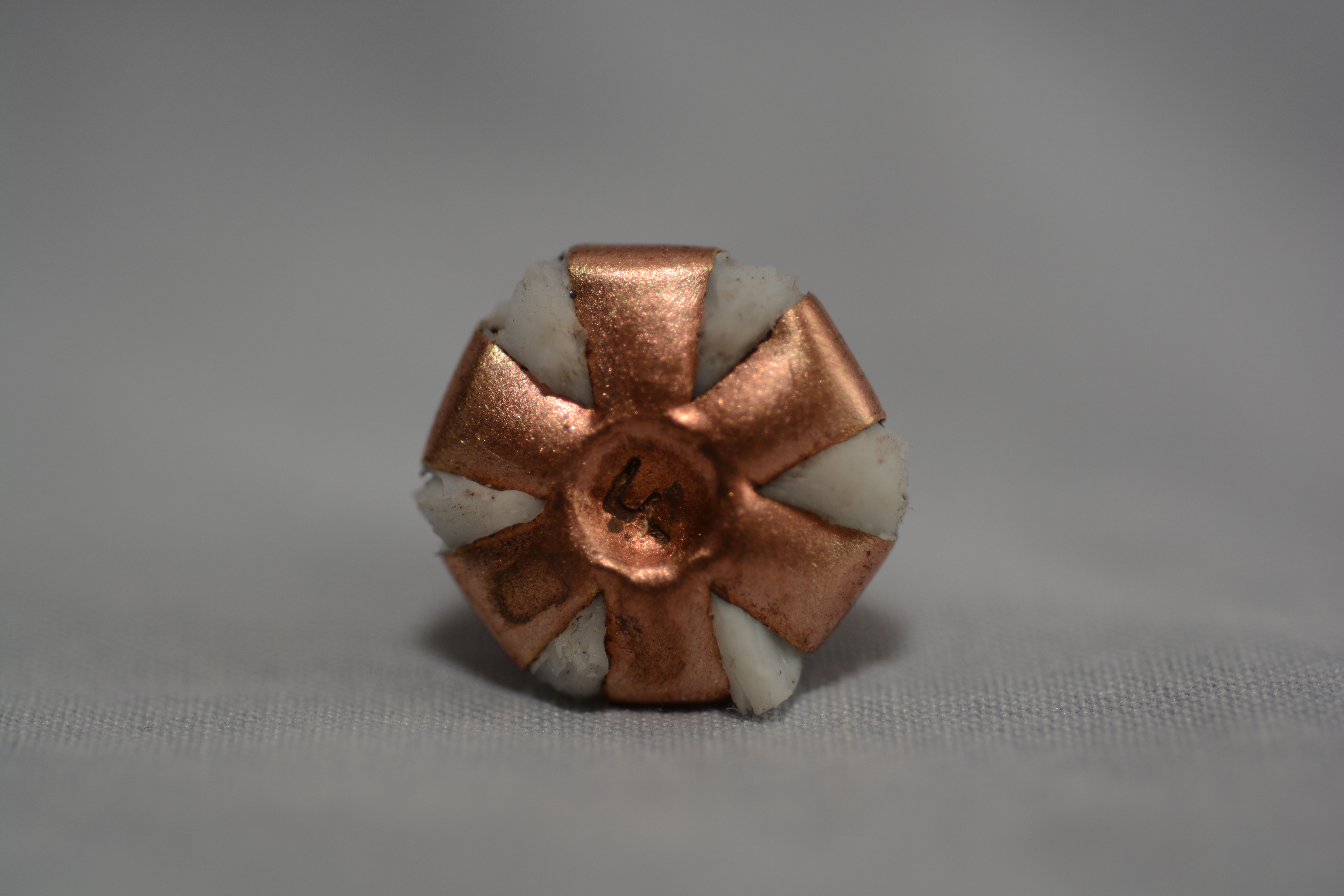

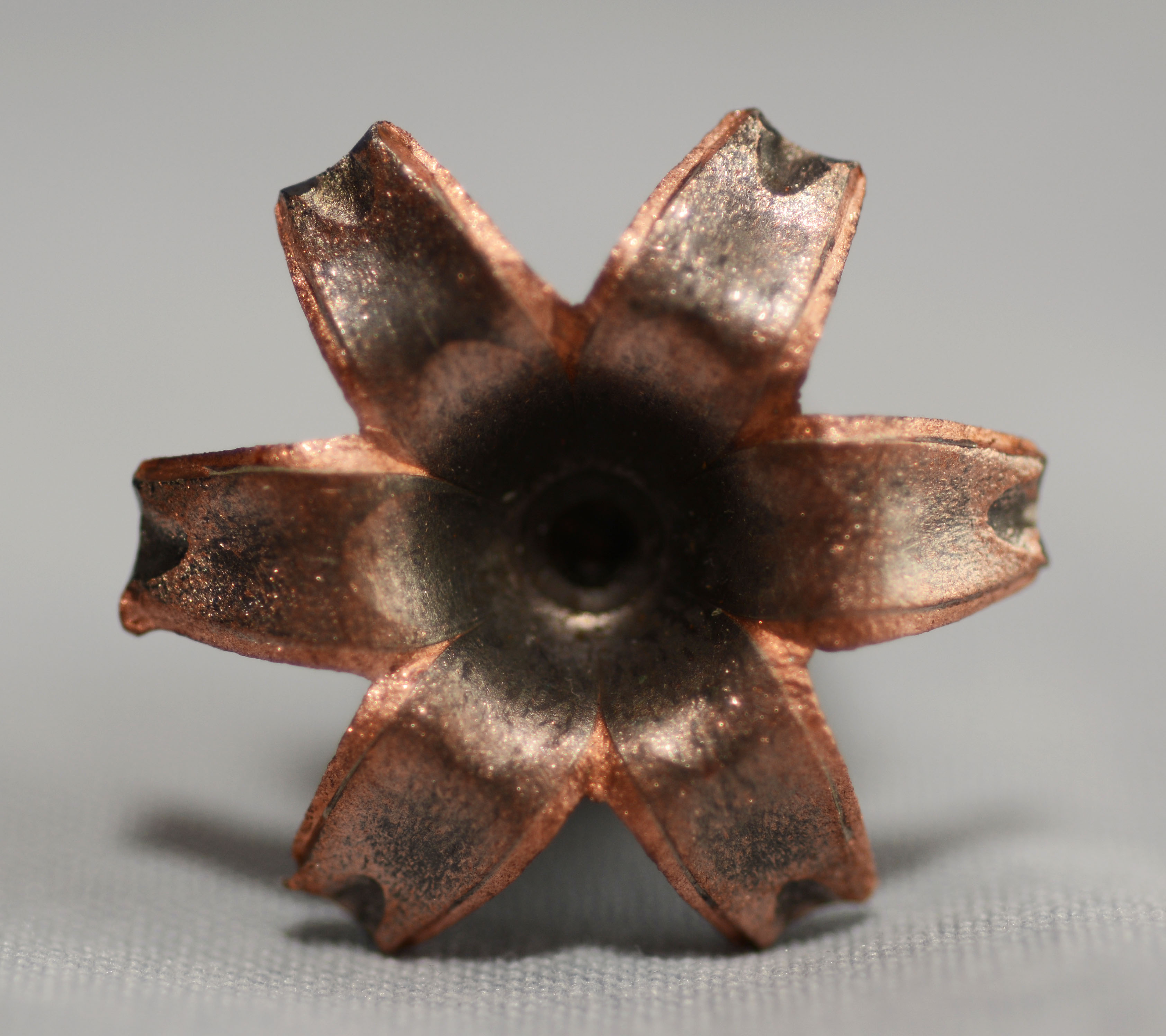

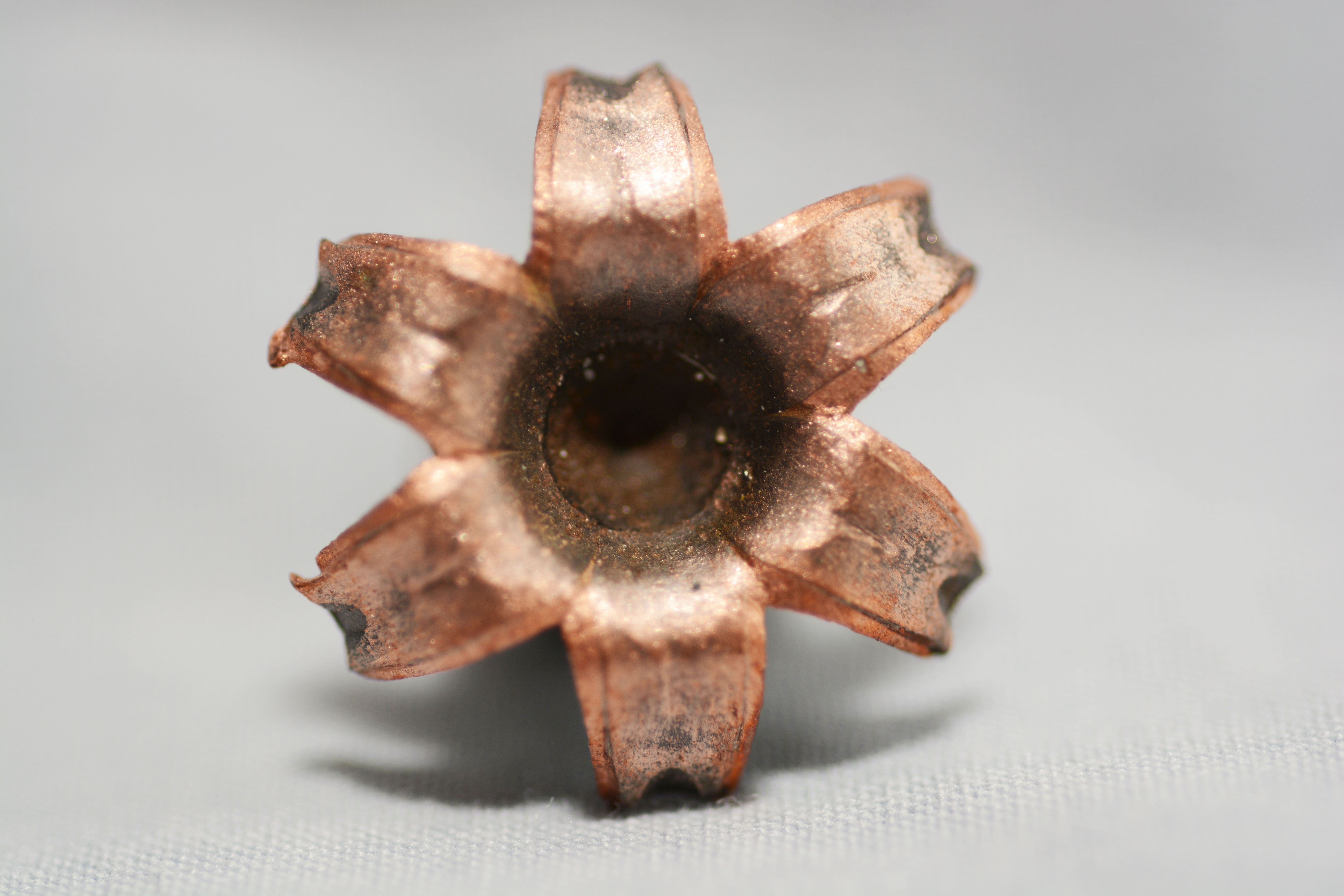

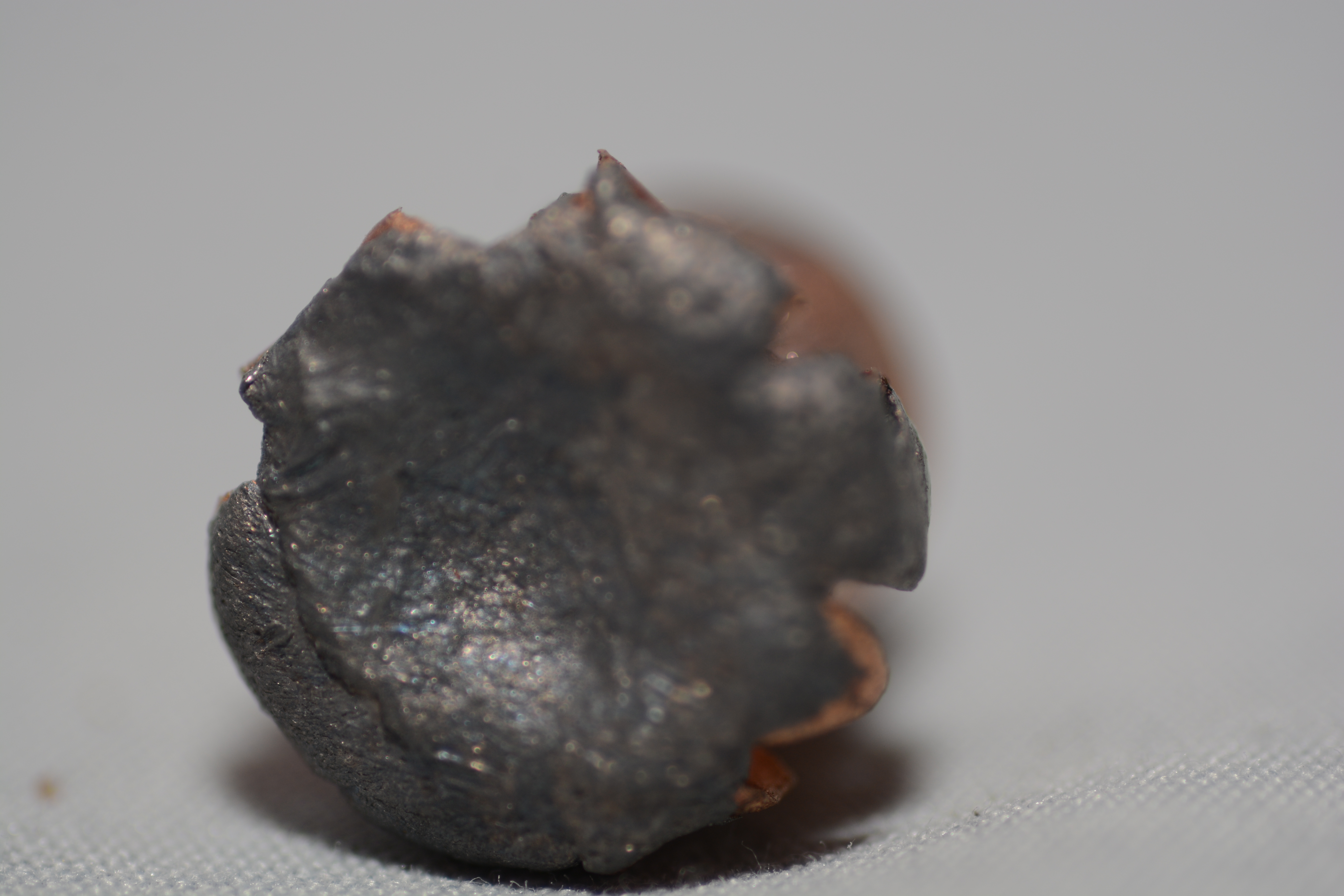

Barnes TAC-XPD in Tissue Simulation

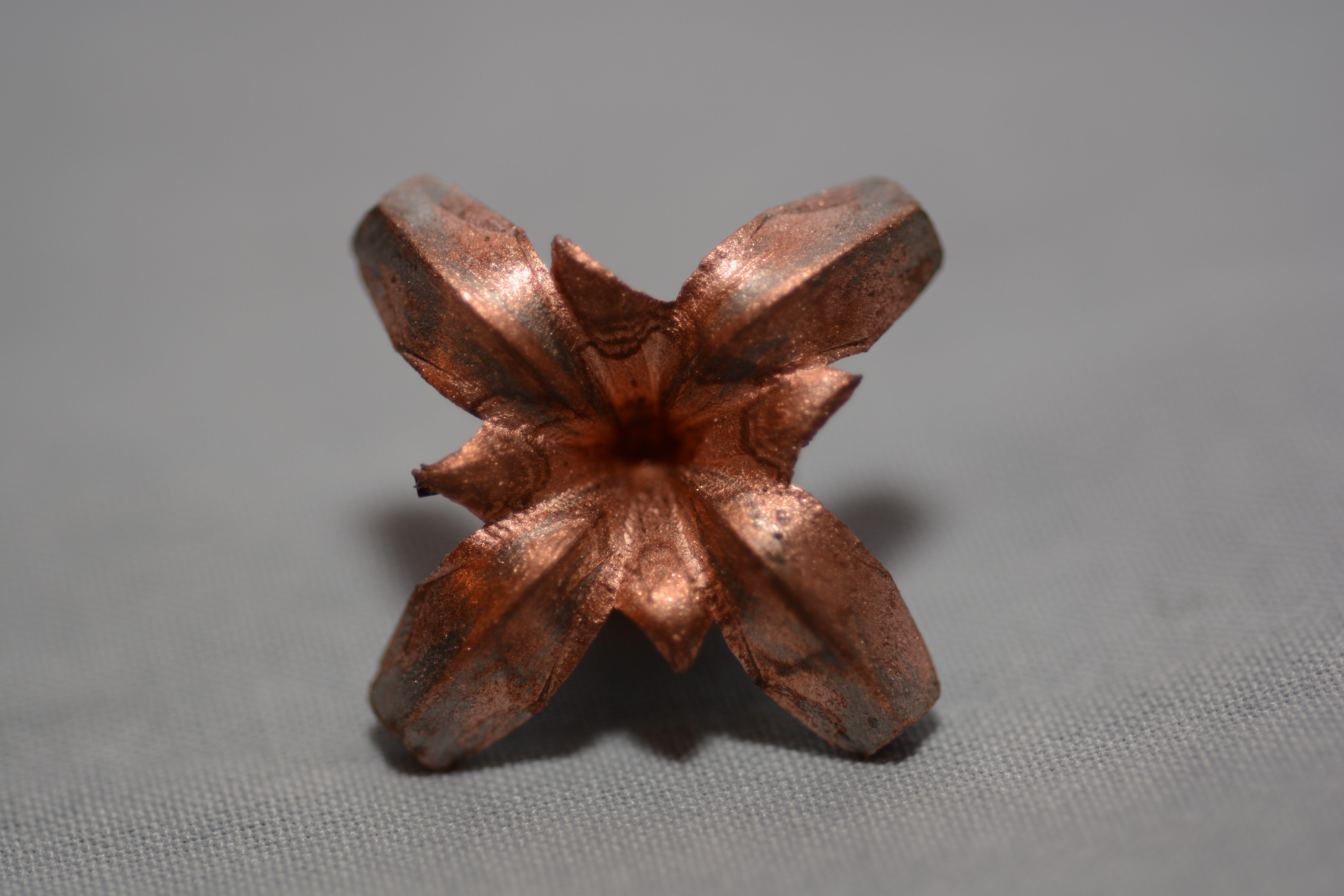

Barnes TAC-XPD in Bone and Tissue Simulation

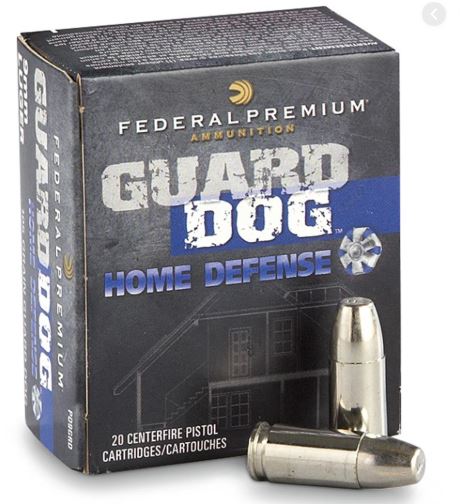

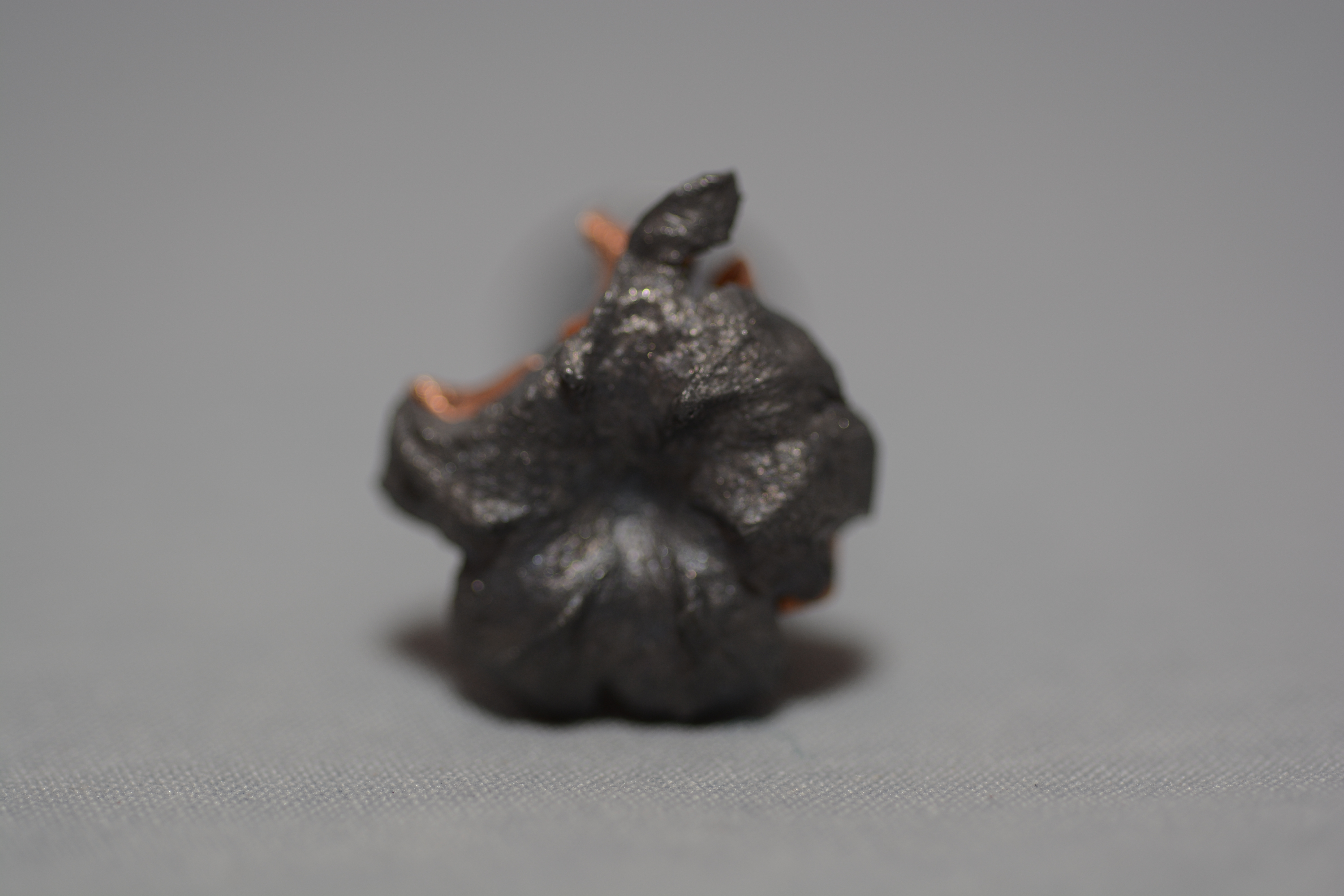

Federal EFMJ – Expanding Full Metal Jacket (Now sold as Guard Dog) in Tissue

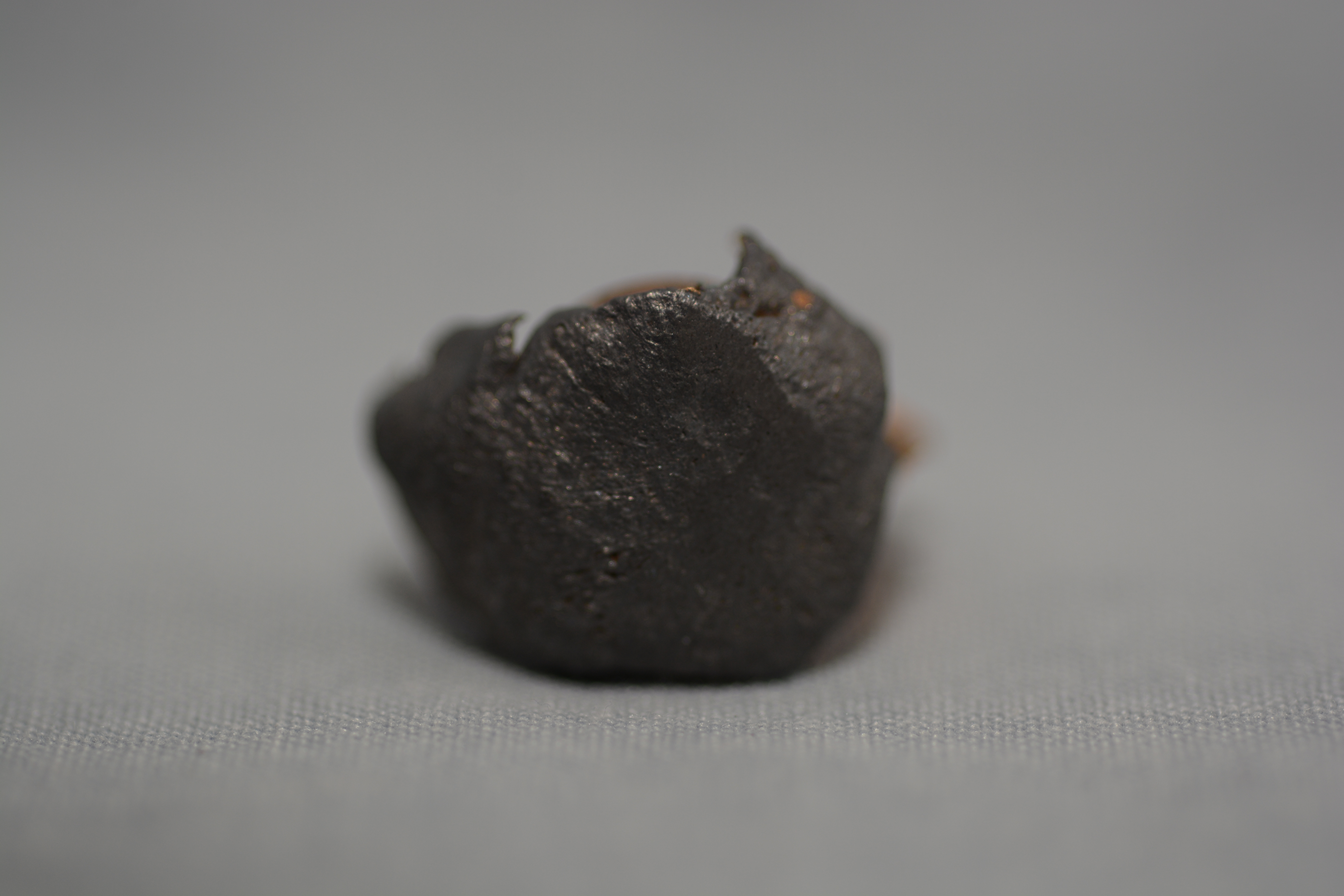

Federal EFMJ – Expanding Full Metal Jacket in Bone/ Tissue Simulation

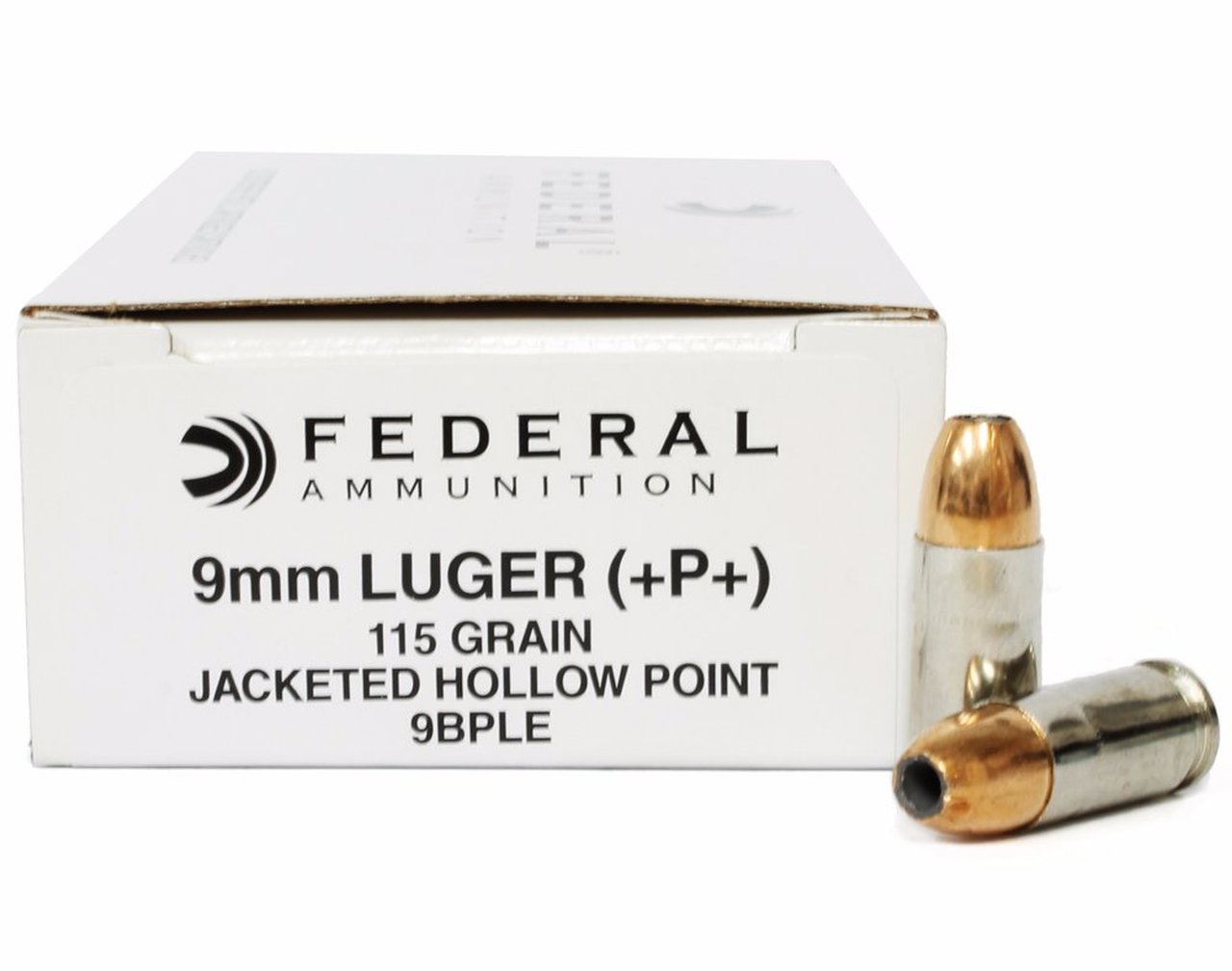

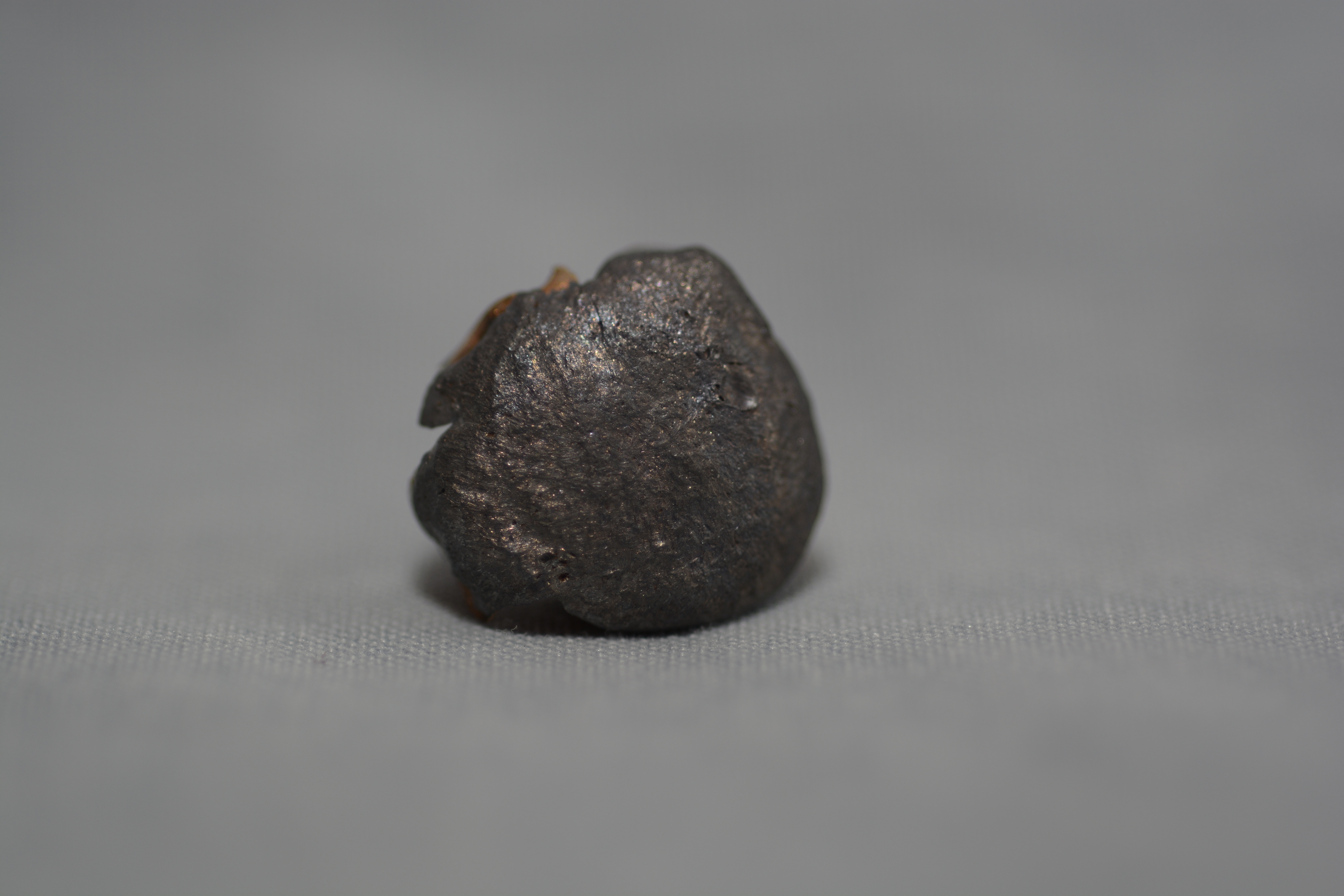

Federal 9BPLE (Law Enforcement +P+) in Tissue Simulation

Federal 9BPLE (Law Enforcement +P+) in Bone and Tissue Simulation

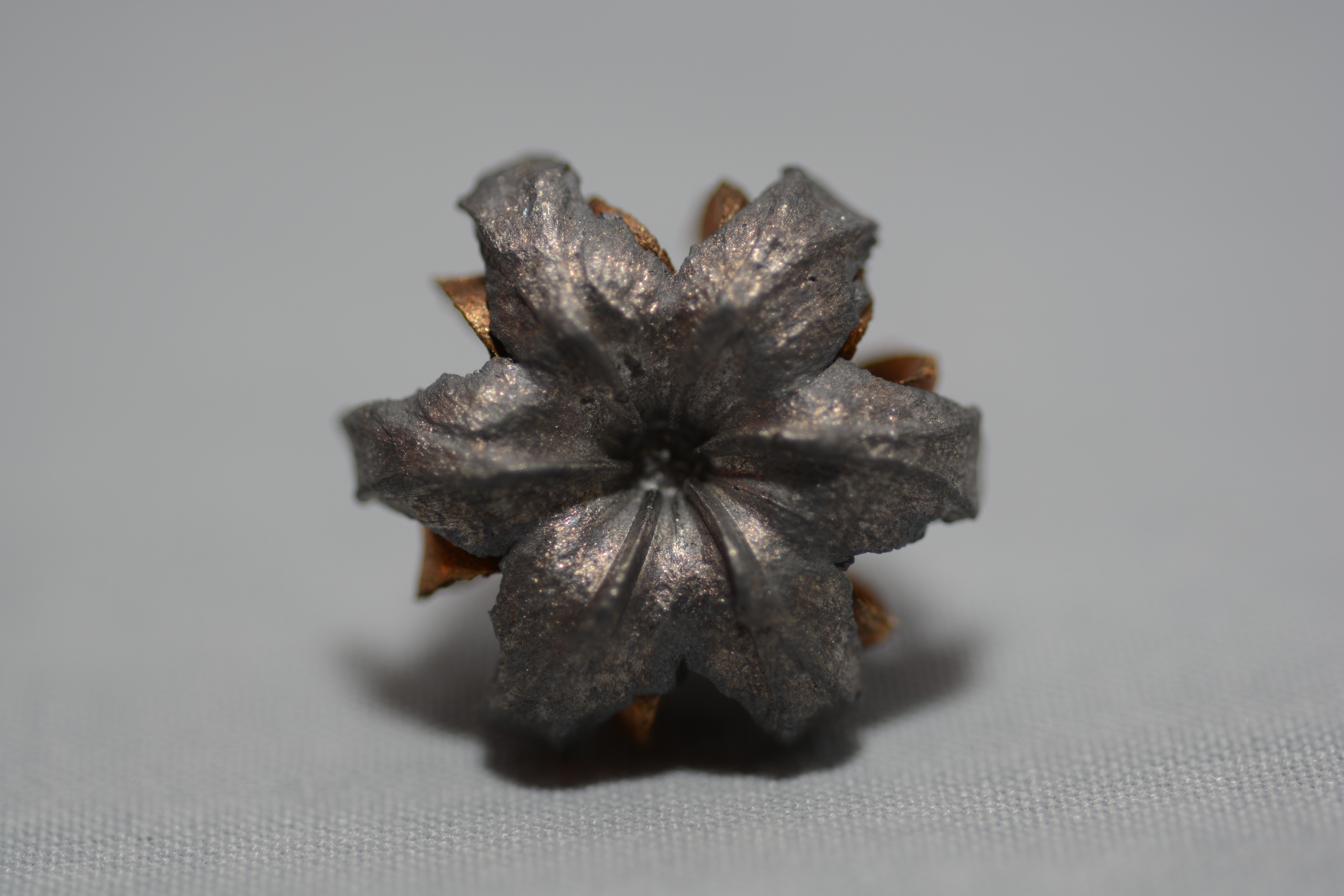

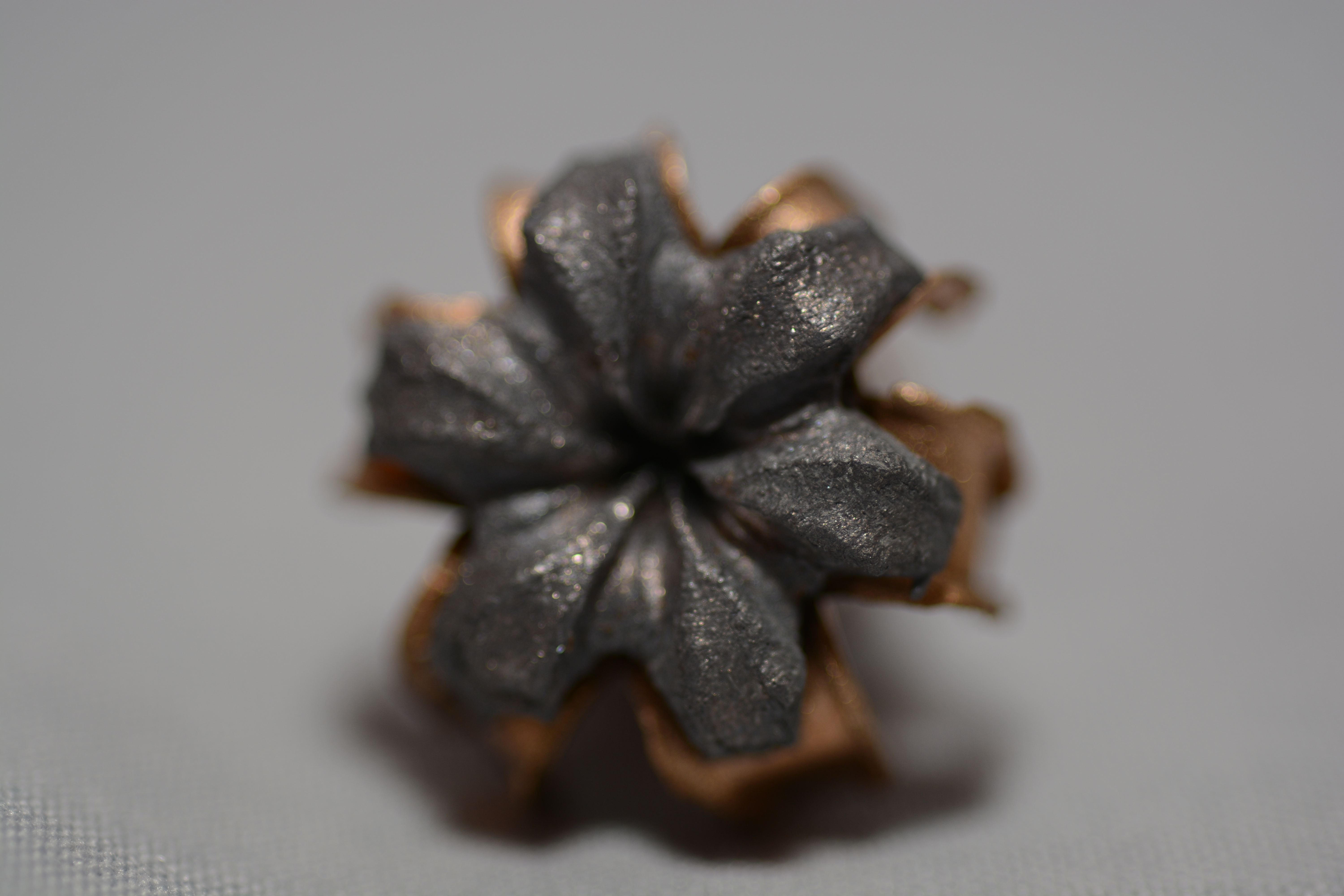

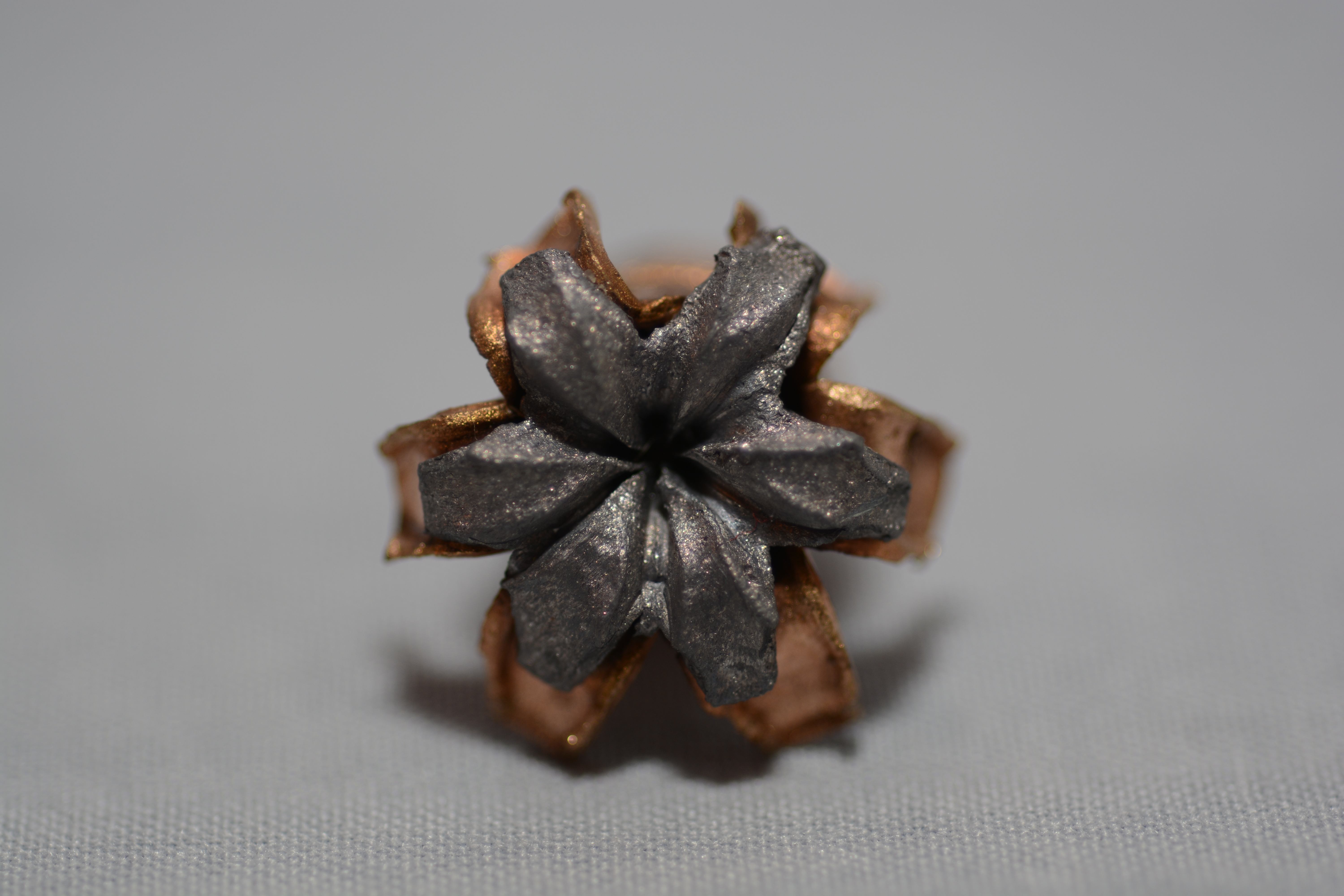

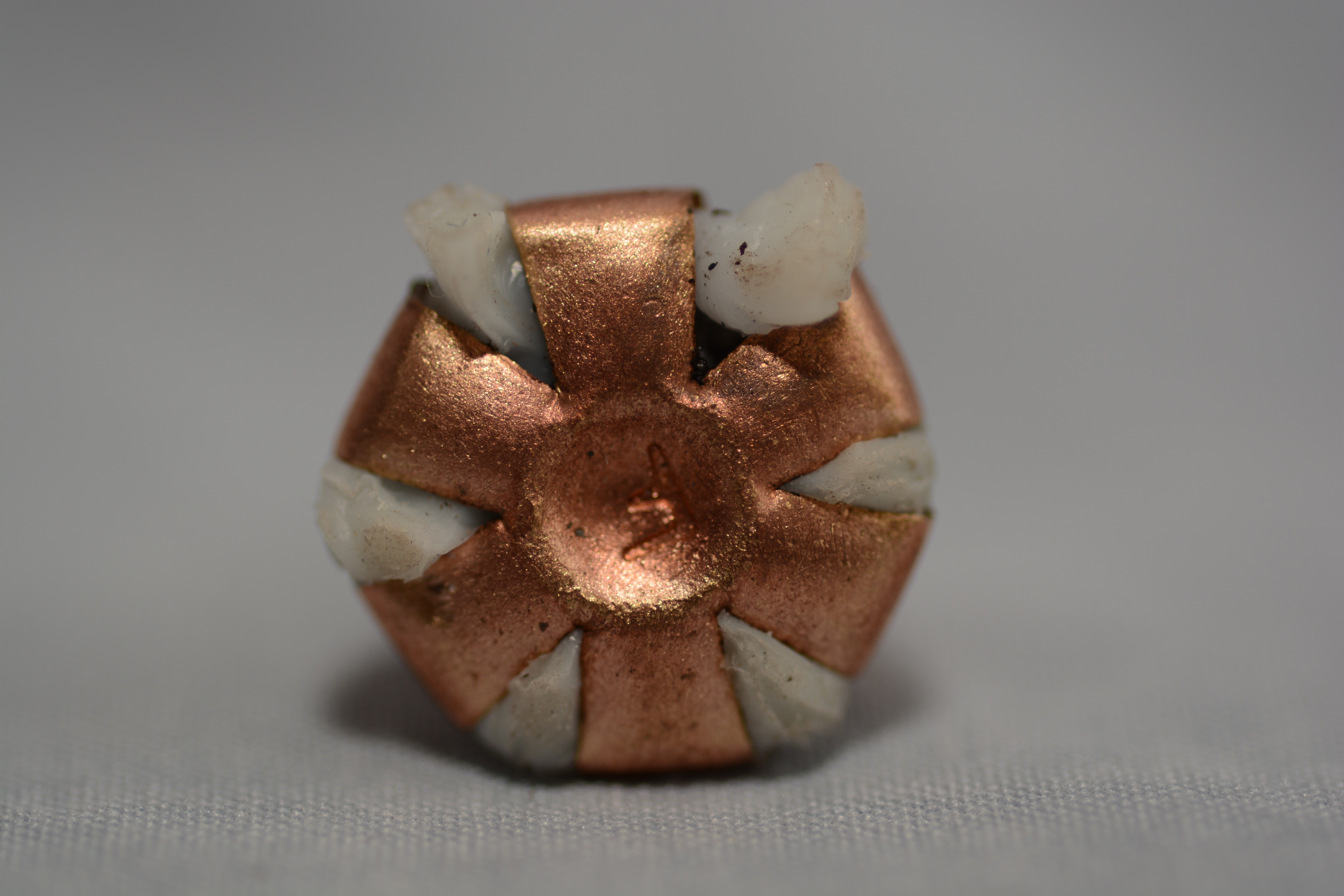

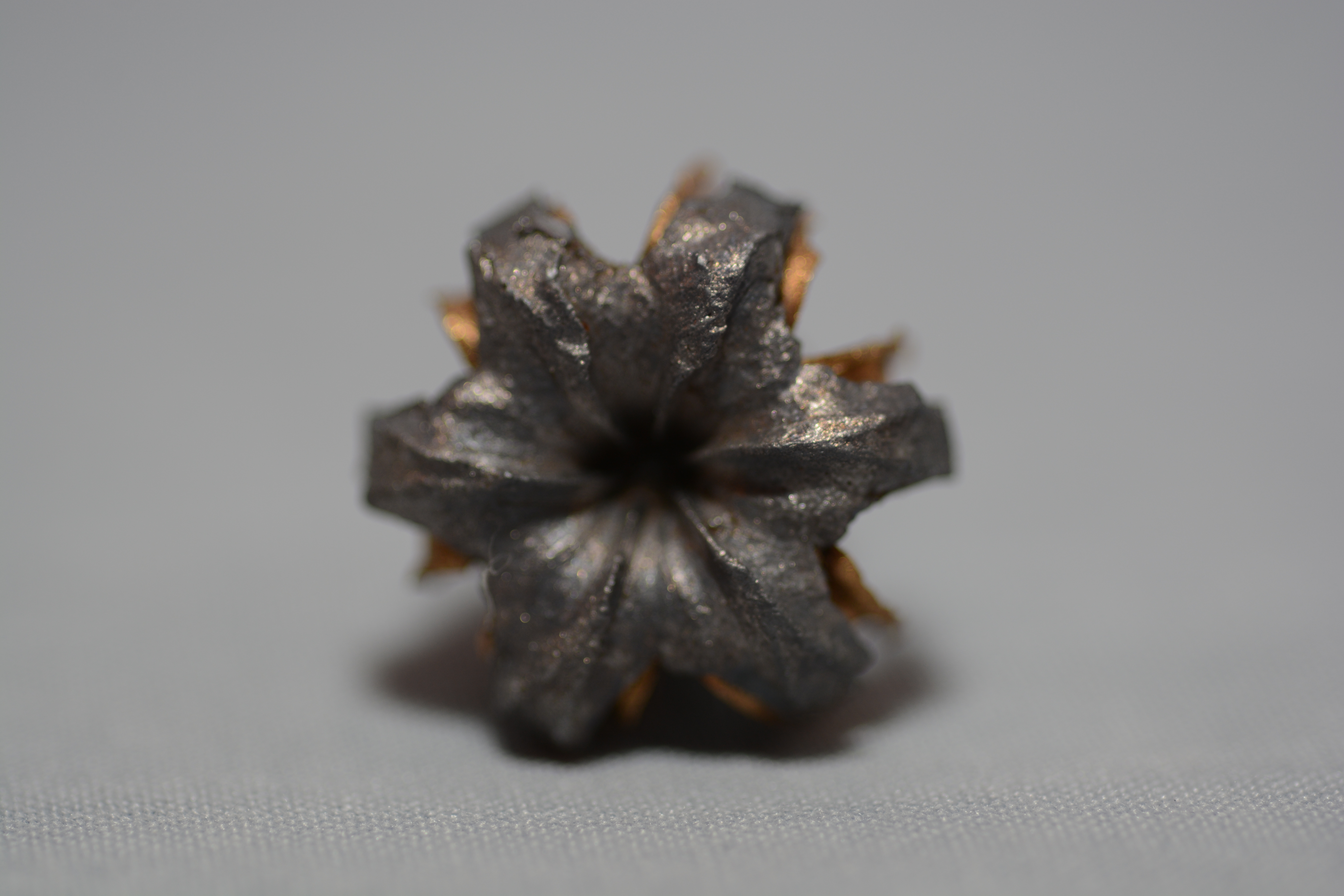

Federal Premium Law Enforcement HST 124 gr. in Tissue Simulation

Federal Premium Law Enforcement HST 124 gr. in Bone and Tissue Simulation

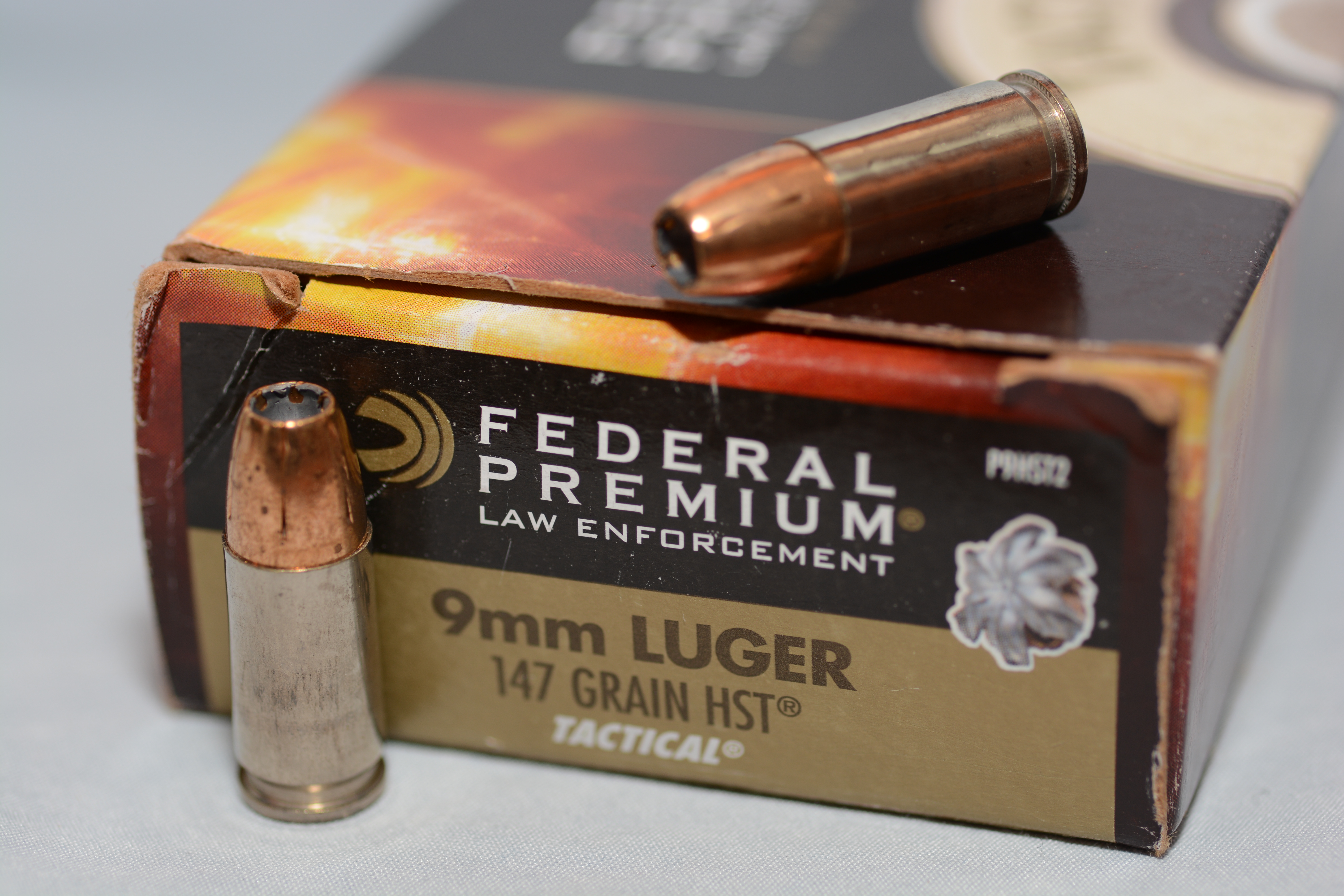

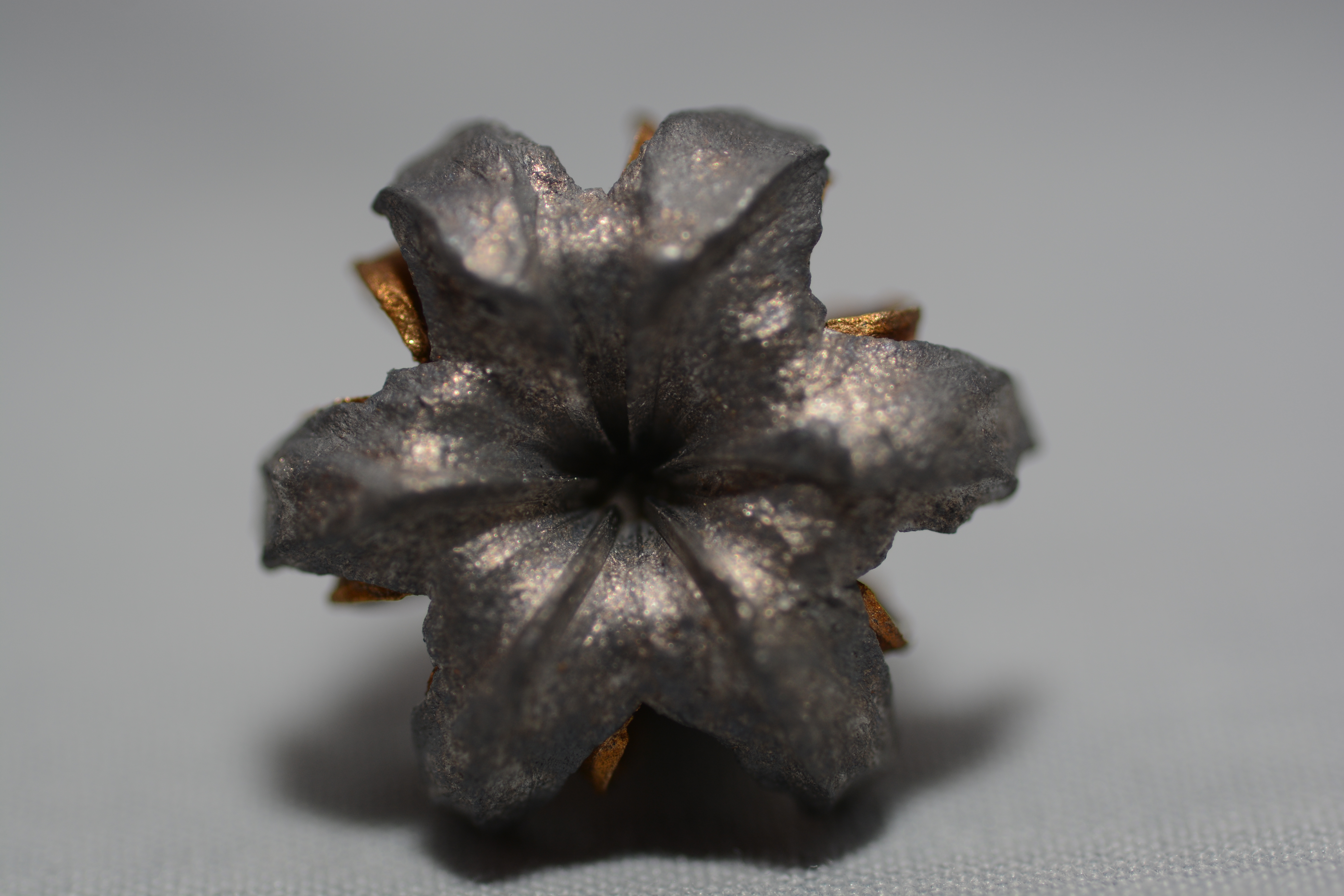

Federal Premium Law Enforcement HST 147 gr. in Tissue Simulation

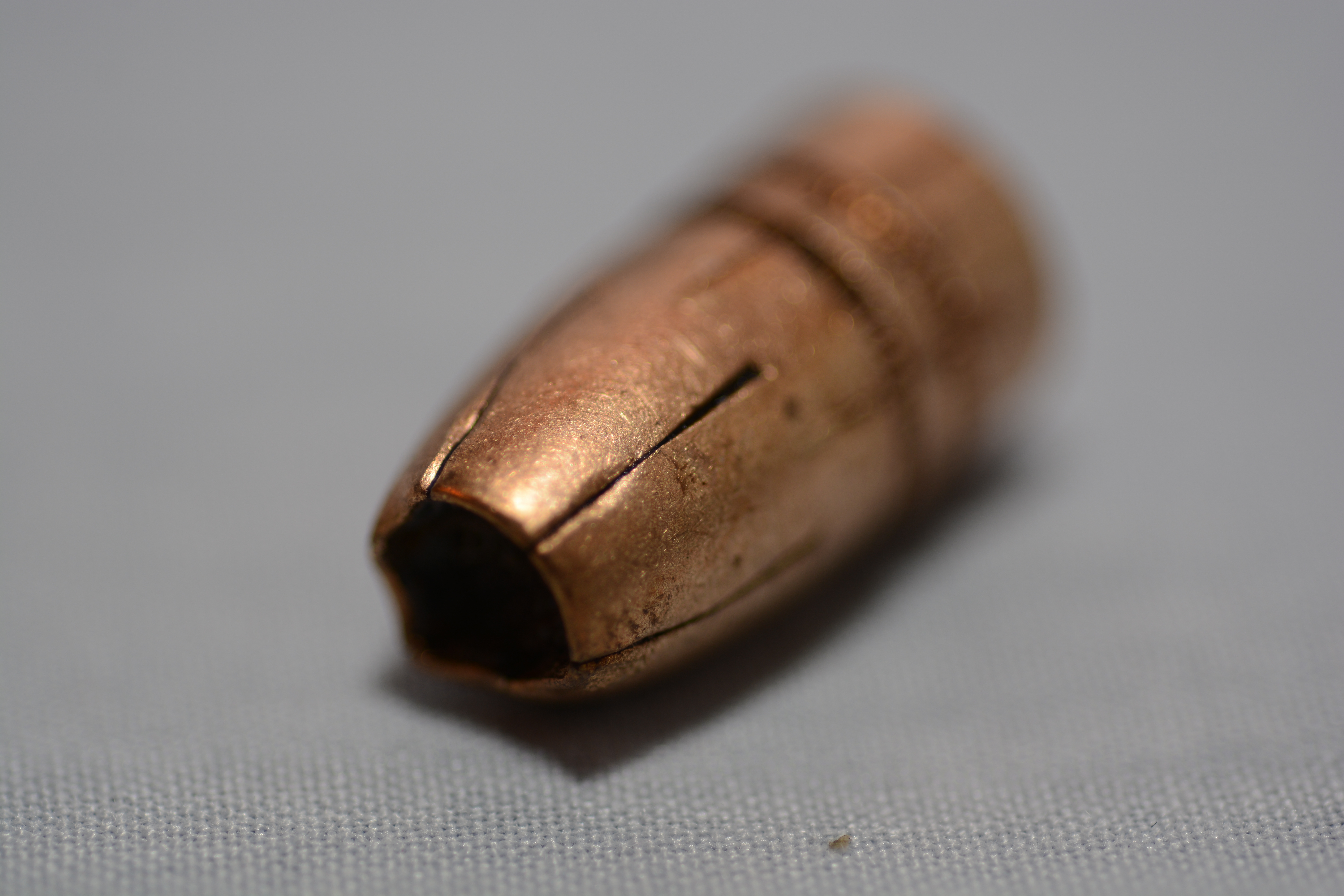

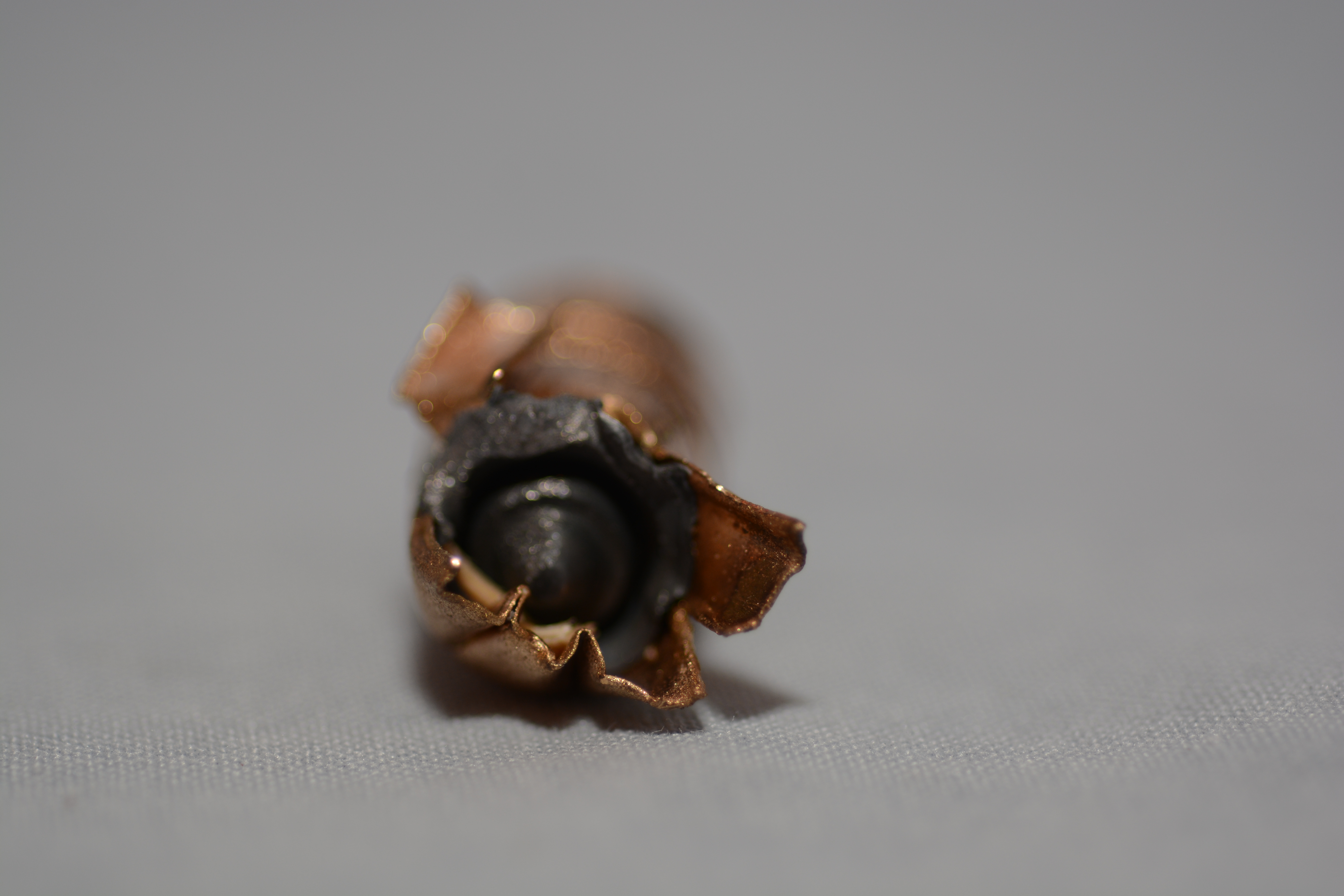

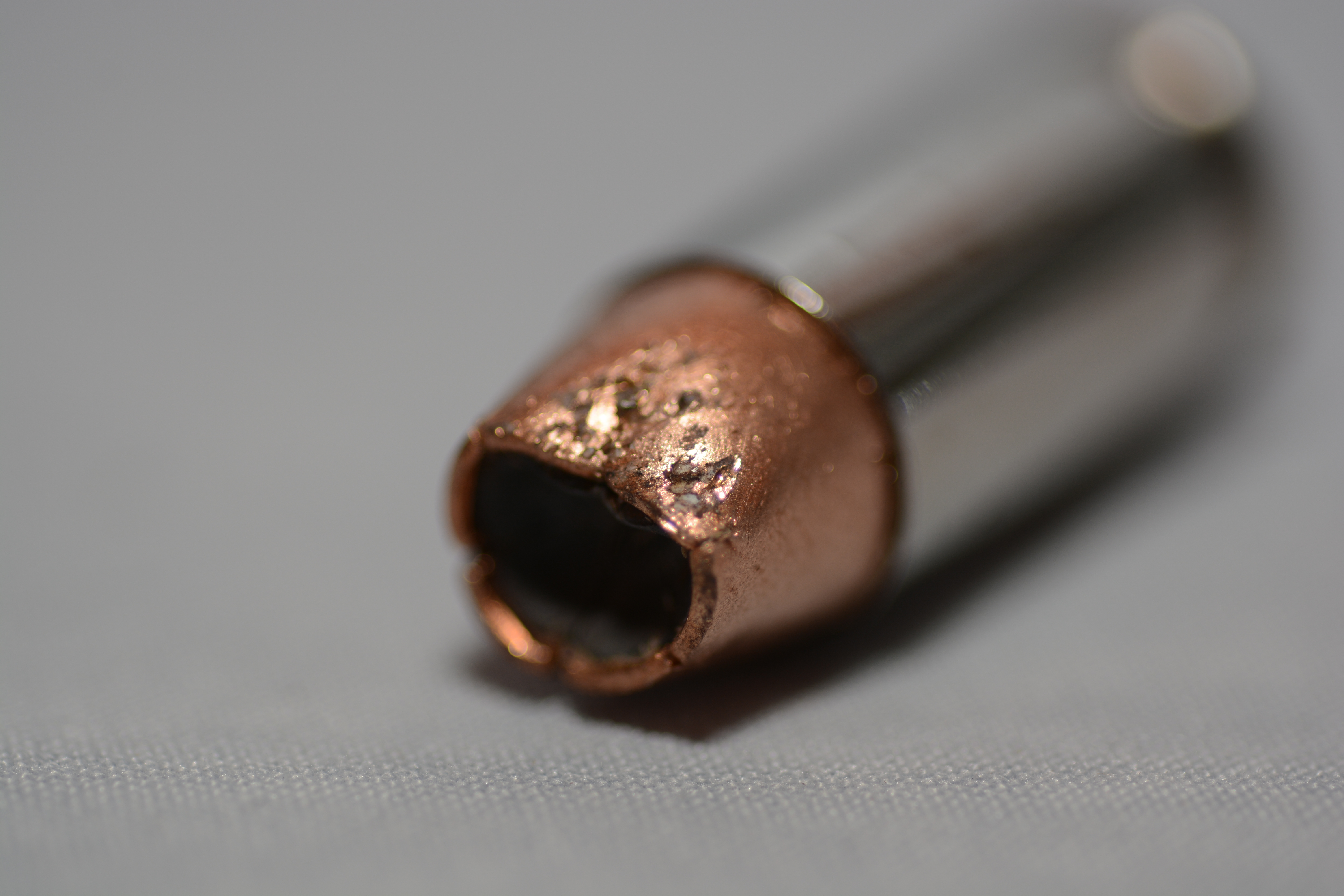

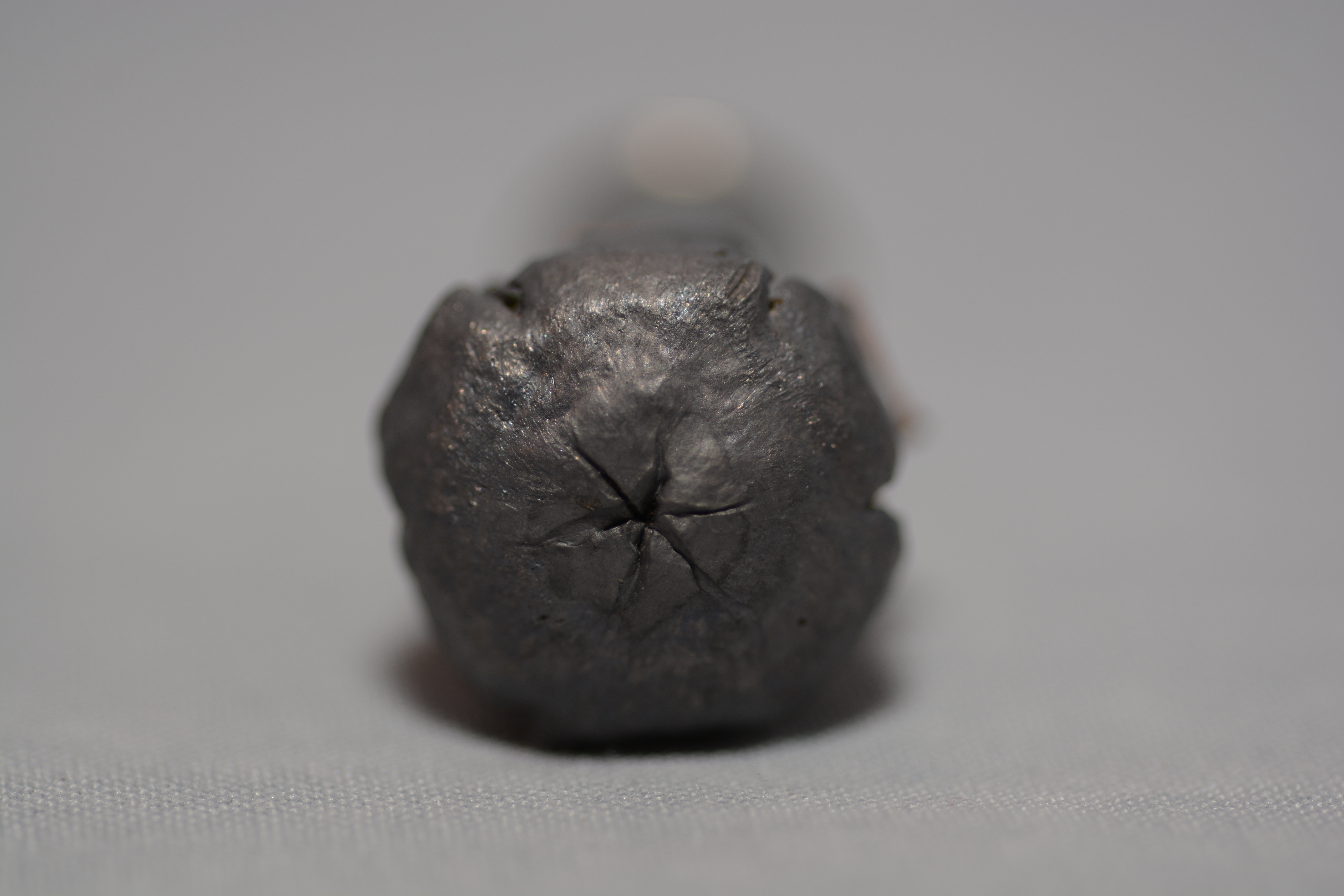

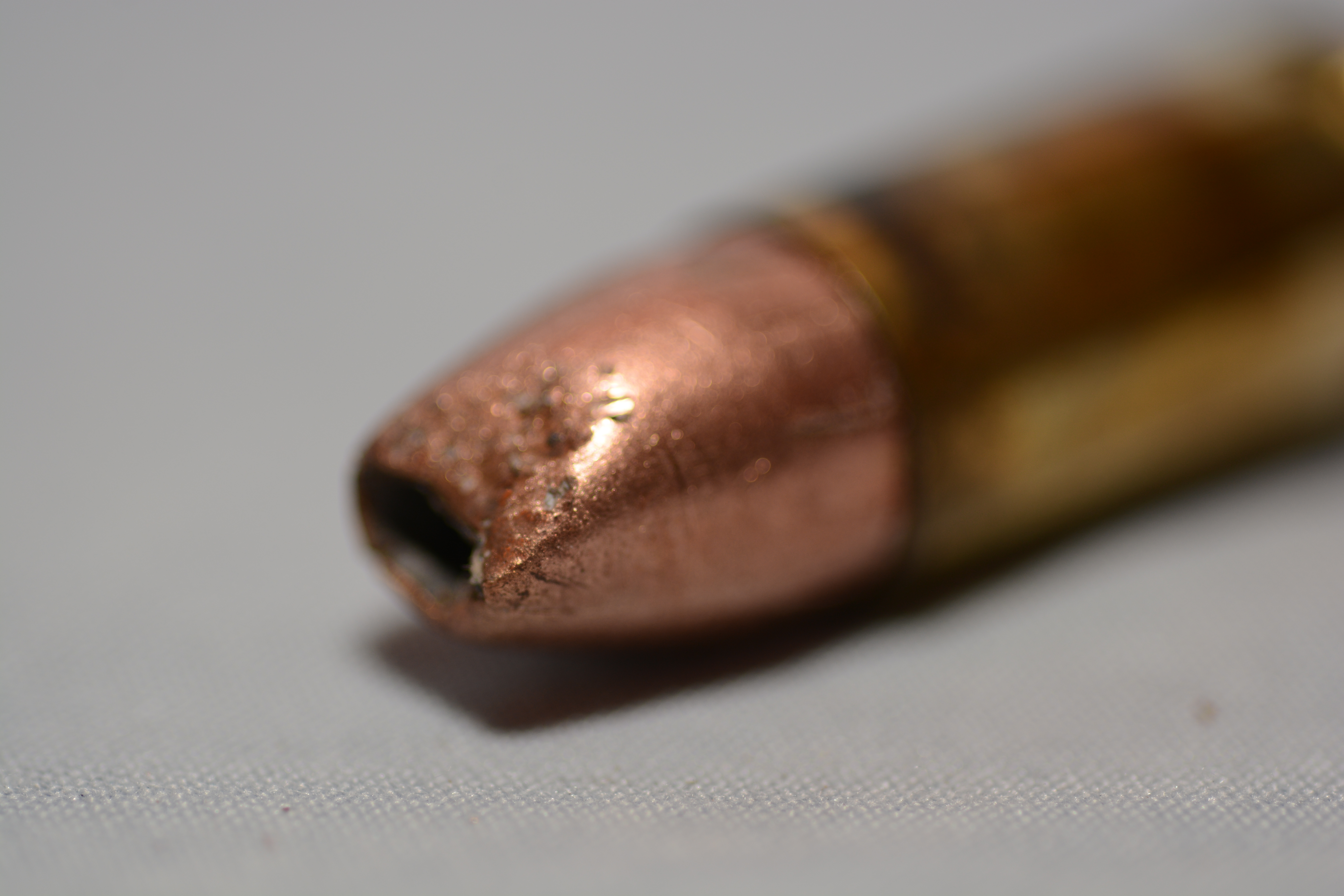

Federal Premium Law Enforcement HST 147 gr. in Bone and Tissue Simulation (No Expansion!)

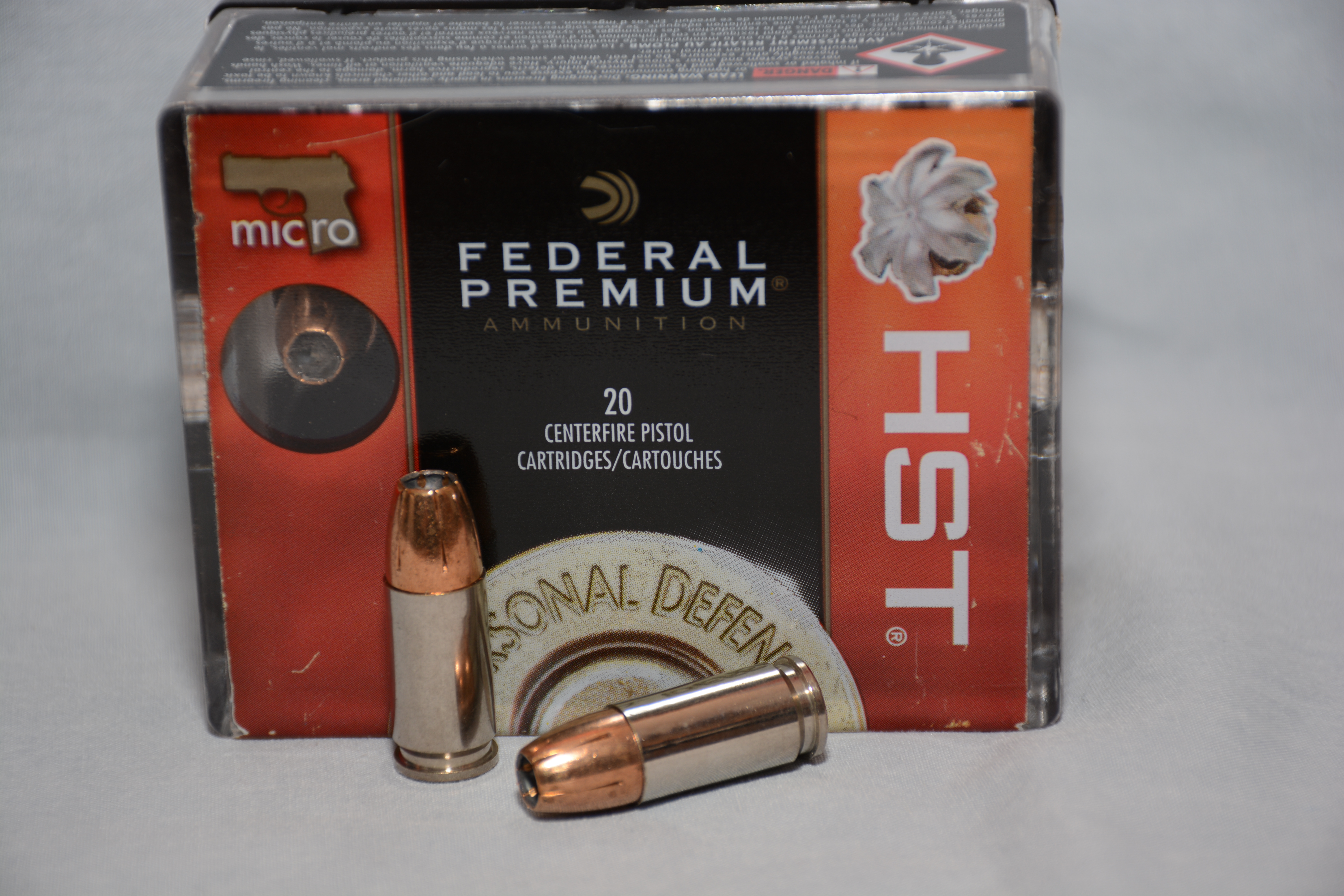

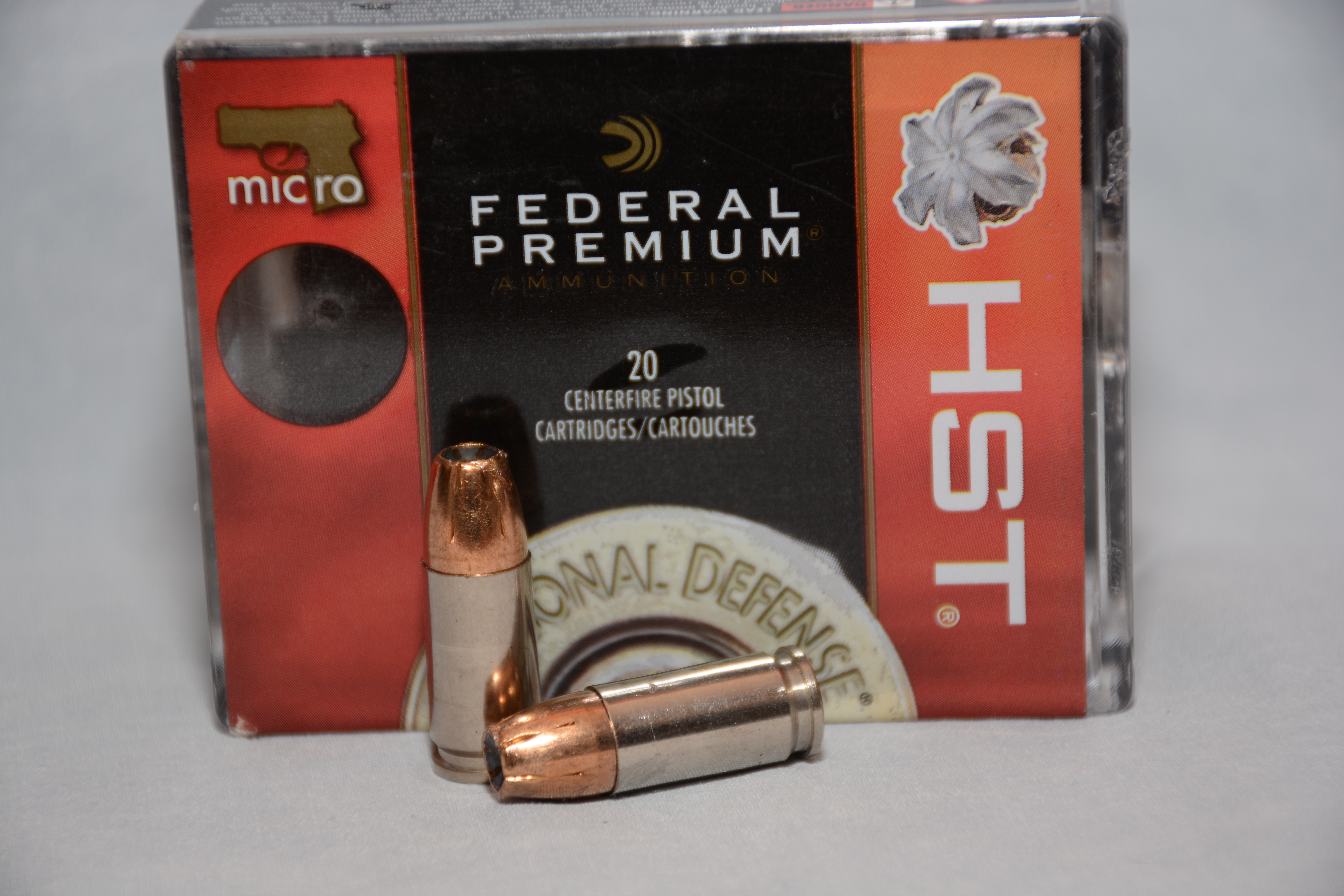

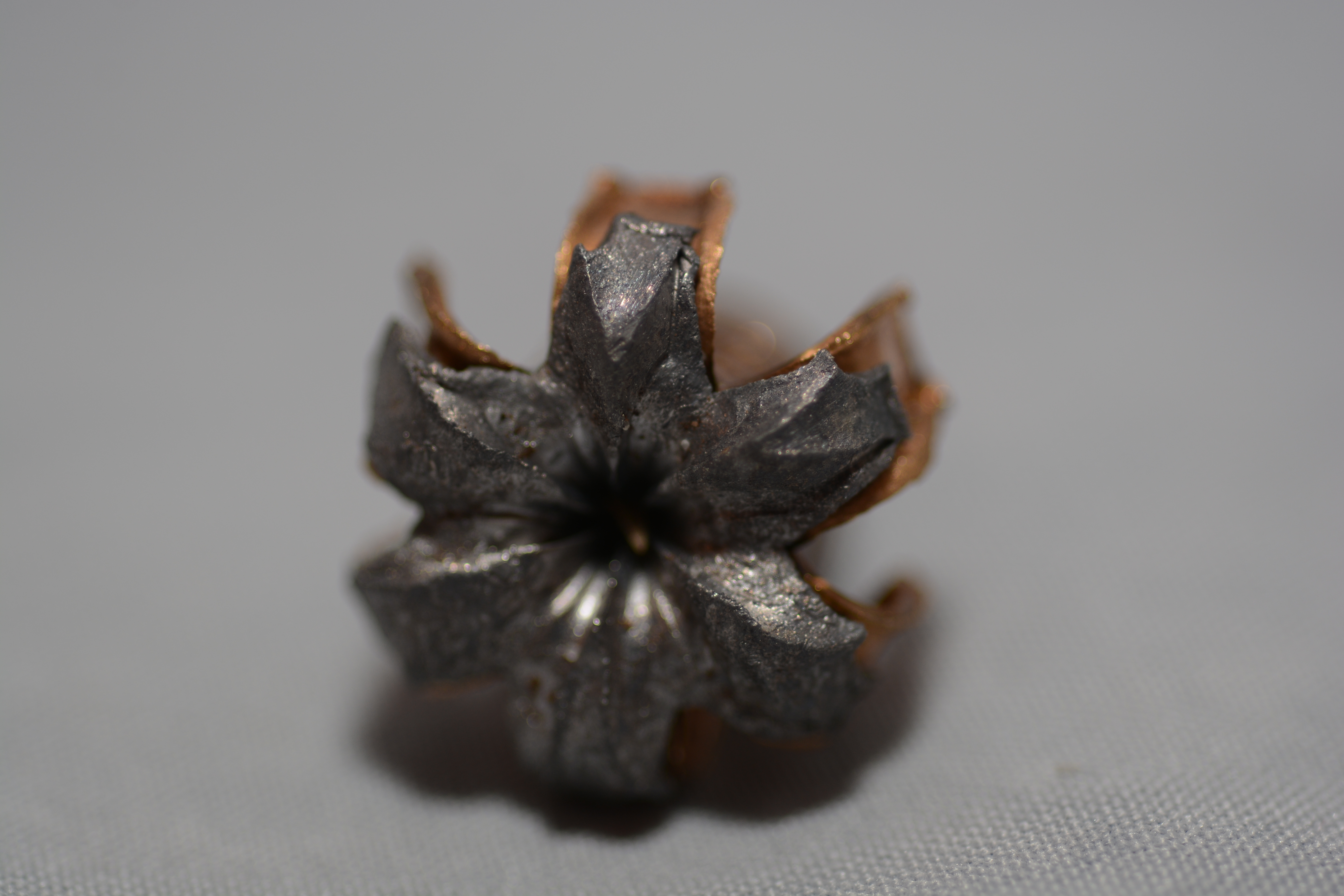

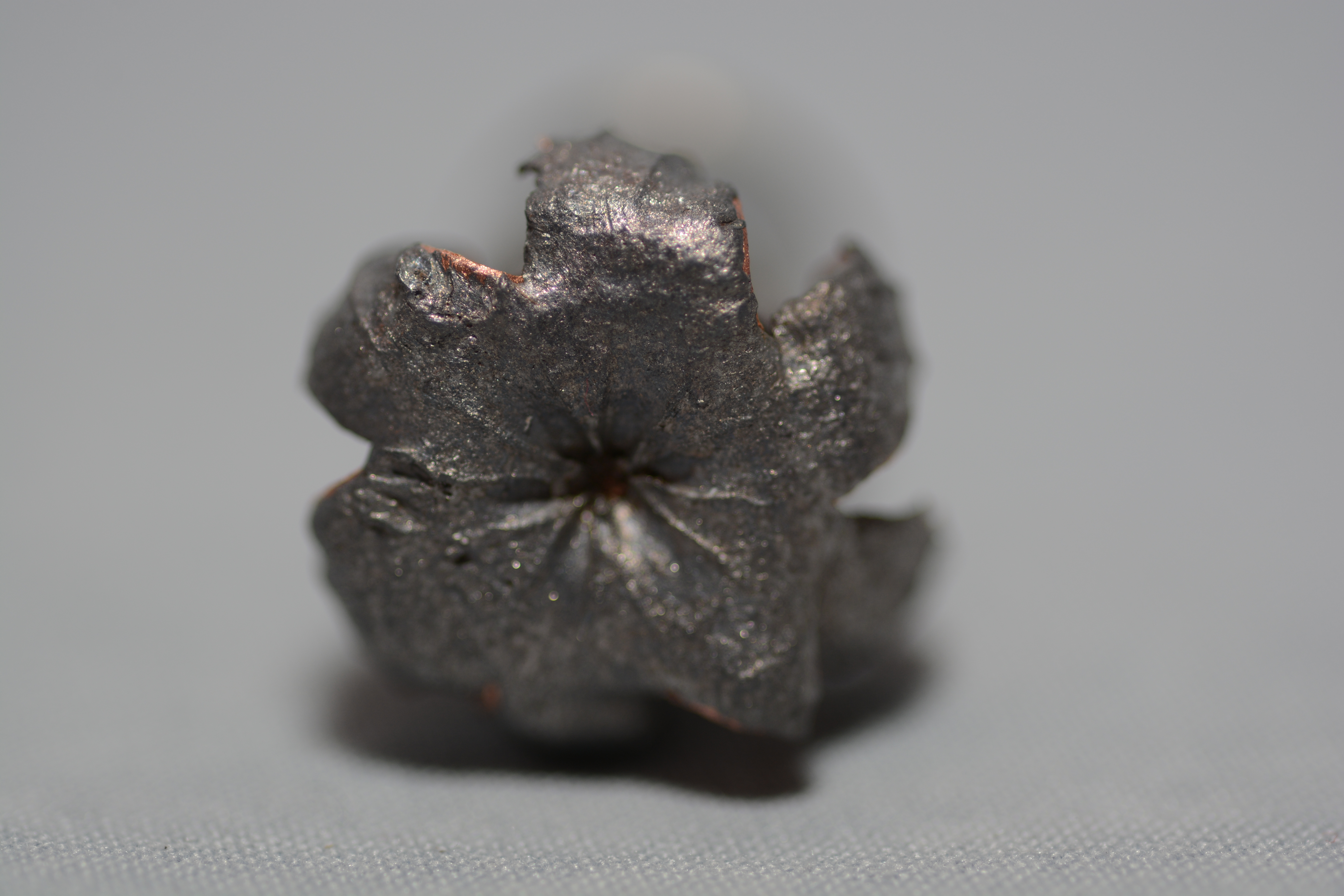

Federal Premium HST MICRO 147 gr. in Tissue Simulation

Federal Premium HST MICRO 147 gr. in Bone and Tissue Simulation

Federal Premium  HST MICRO 150 gr. in Tissue Simulation

Federal Premium  HST MICRO 150 gr.in Bone and Tissue Simulation

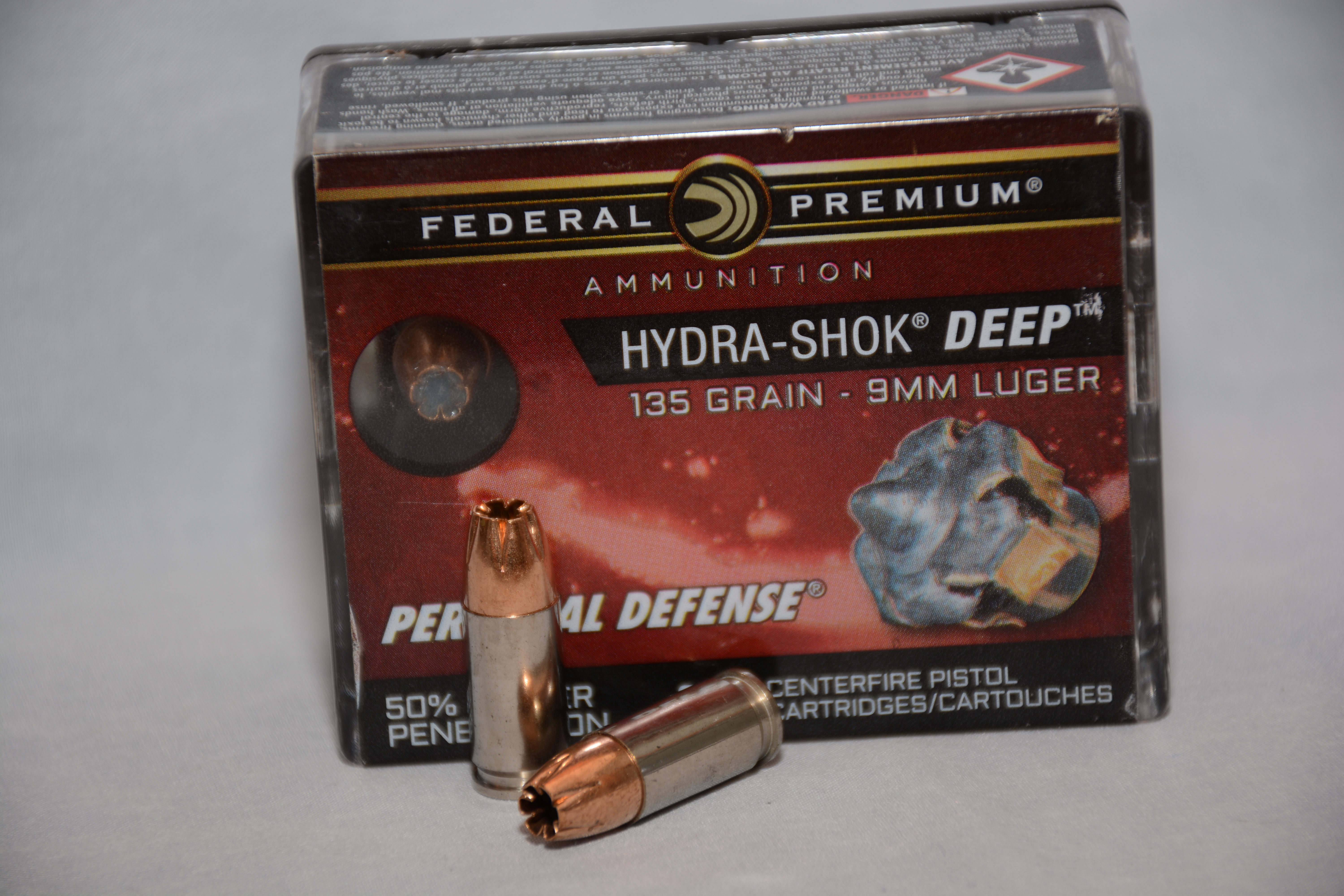

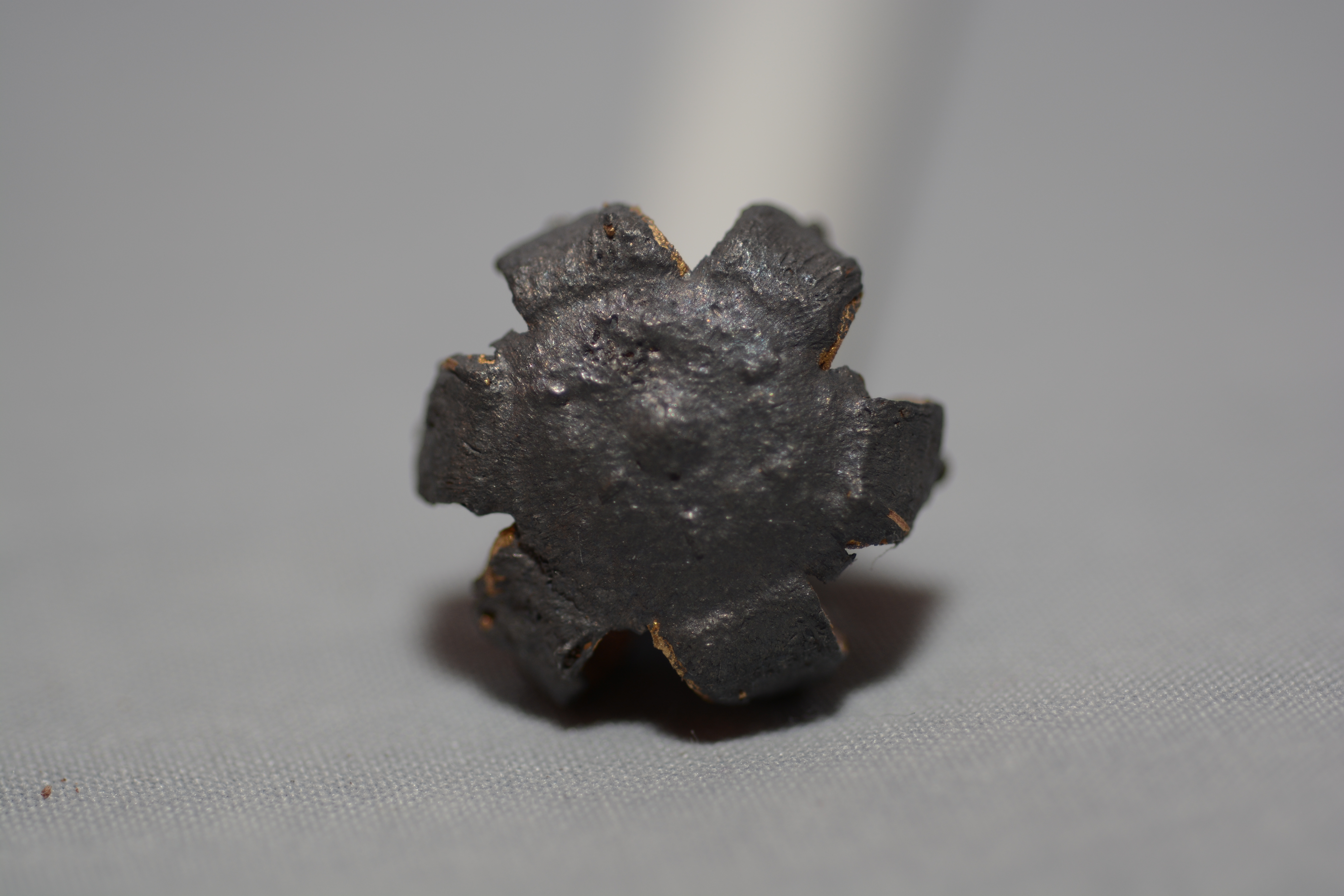

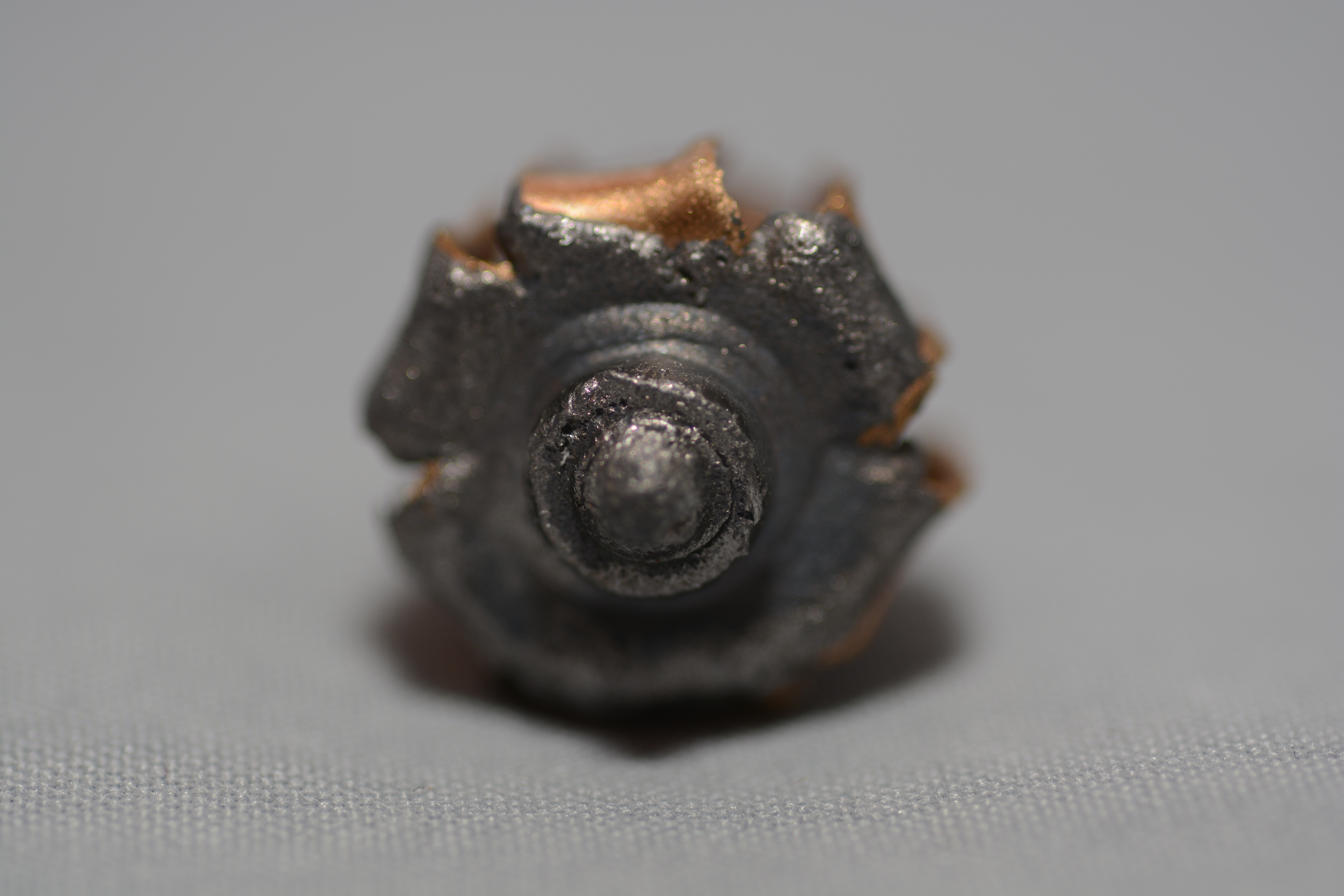

Federal Hydra-Shok Deep 135 gr. in Tissue Simulation

Federal Hydra-Shok Deep 135 gr. in Bone and Tissue Simulation

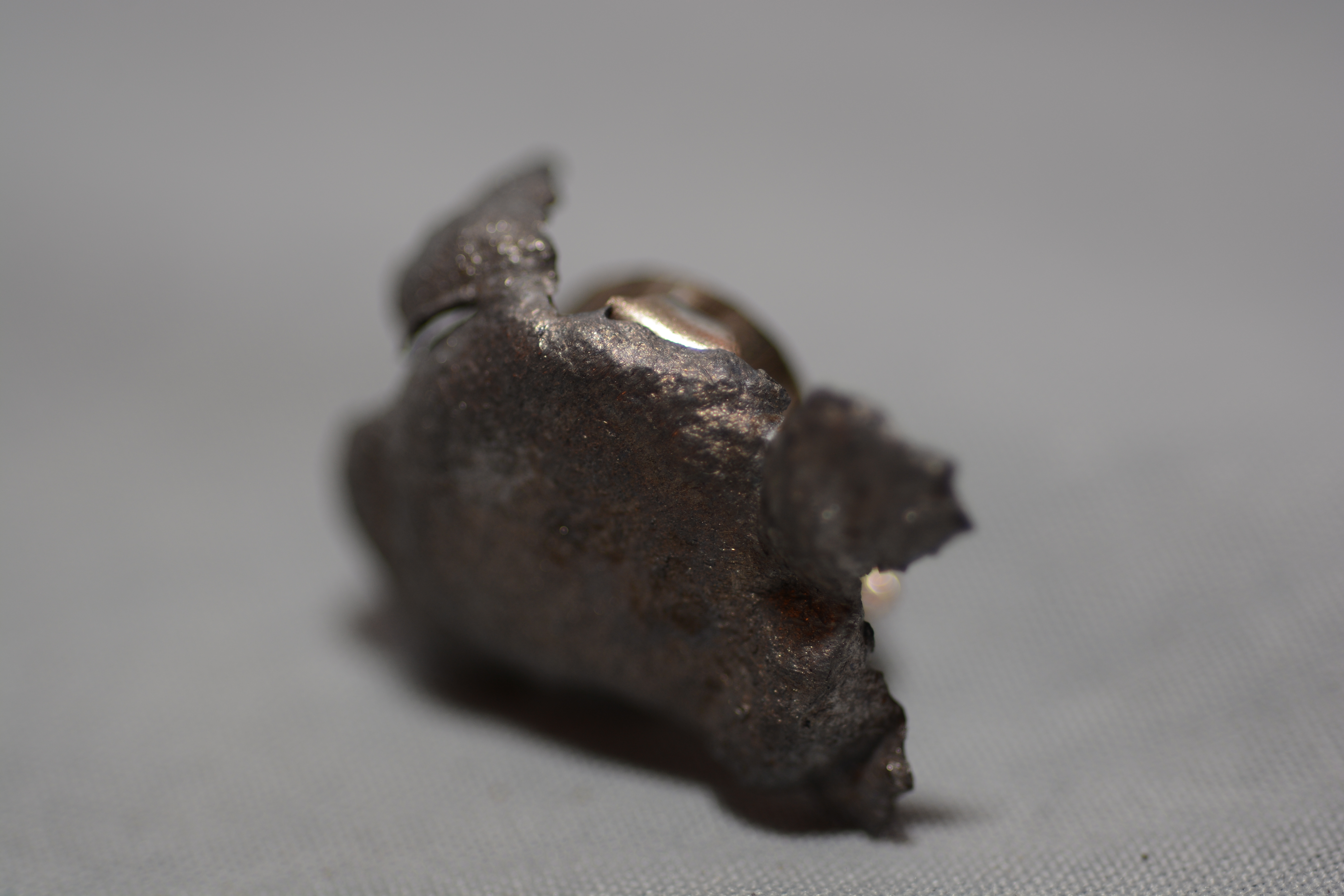

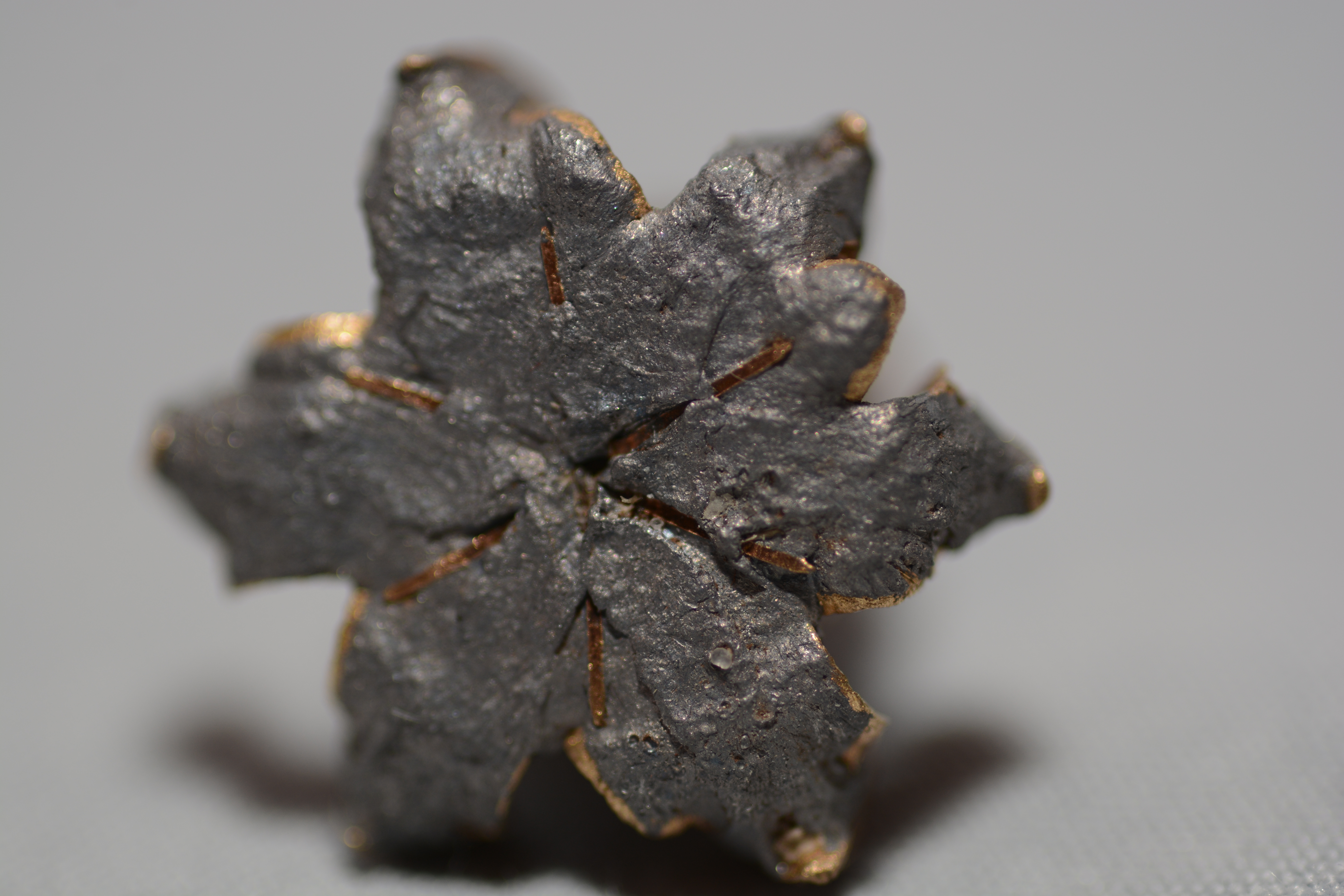

Hornady XTP Handload (6.7 grains of Alliant Power Pistol) 1141 F.P.S.) in Tissue Simulation

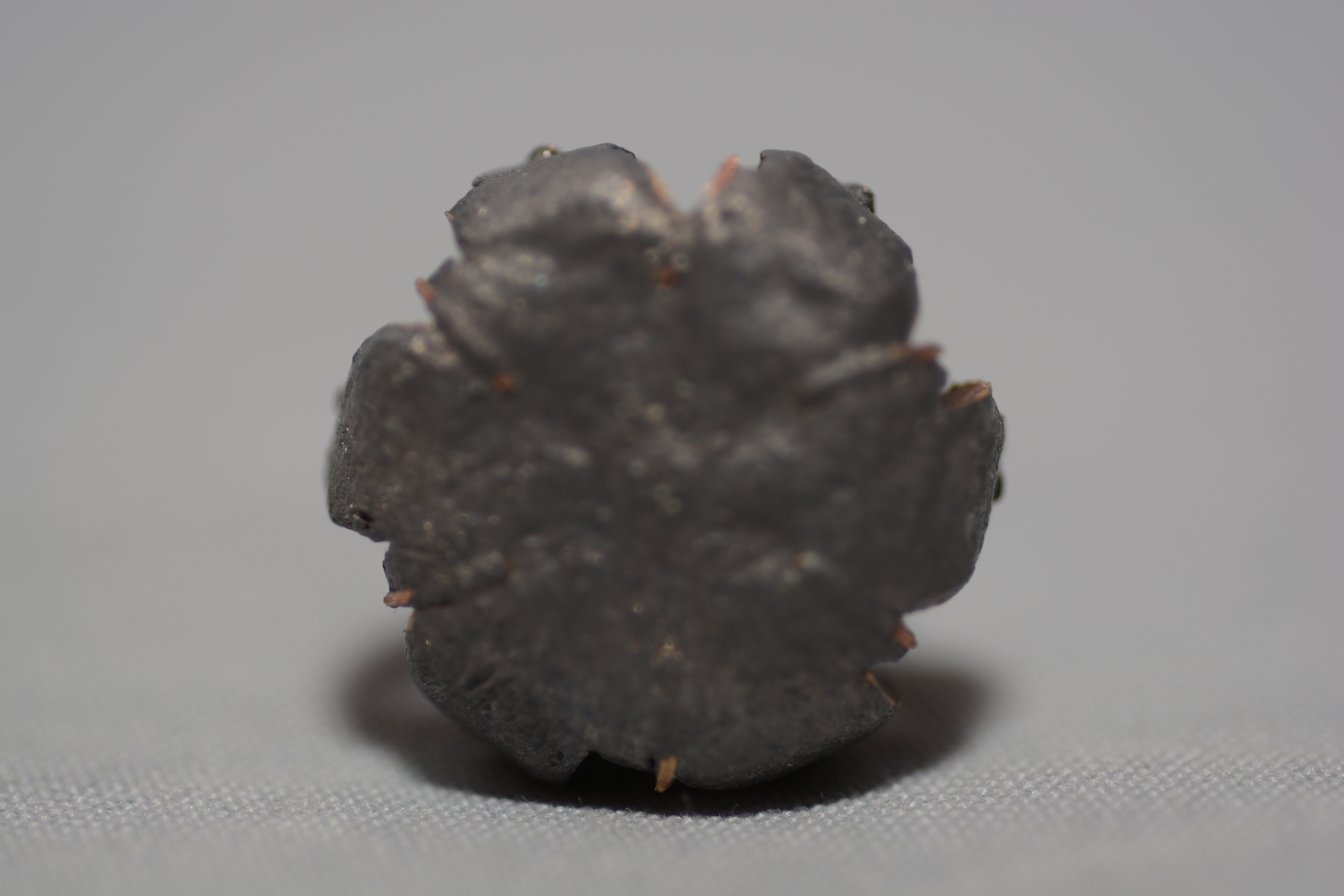

Hornady XTP Handload (6.7 grains of Alliant Power Pistol) 1141 F.P.S.) in  Bone and Tissue Simulation

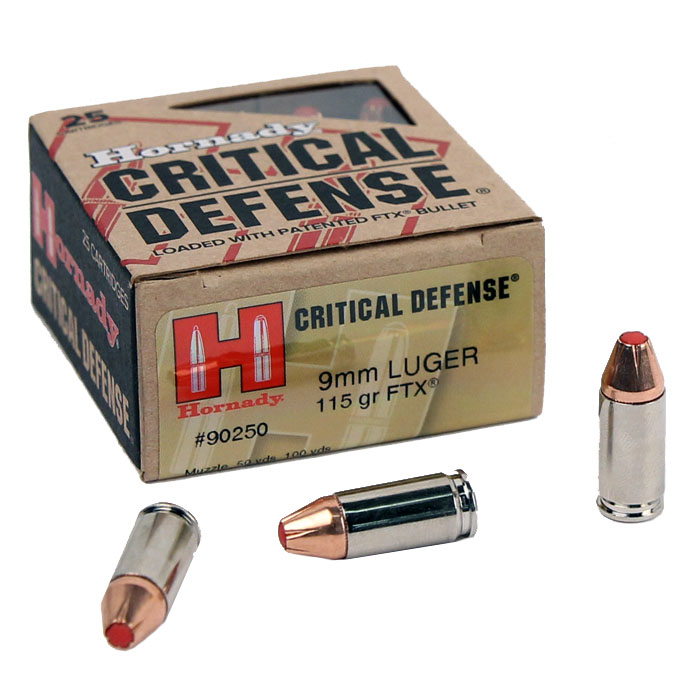

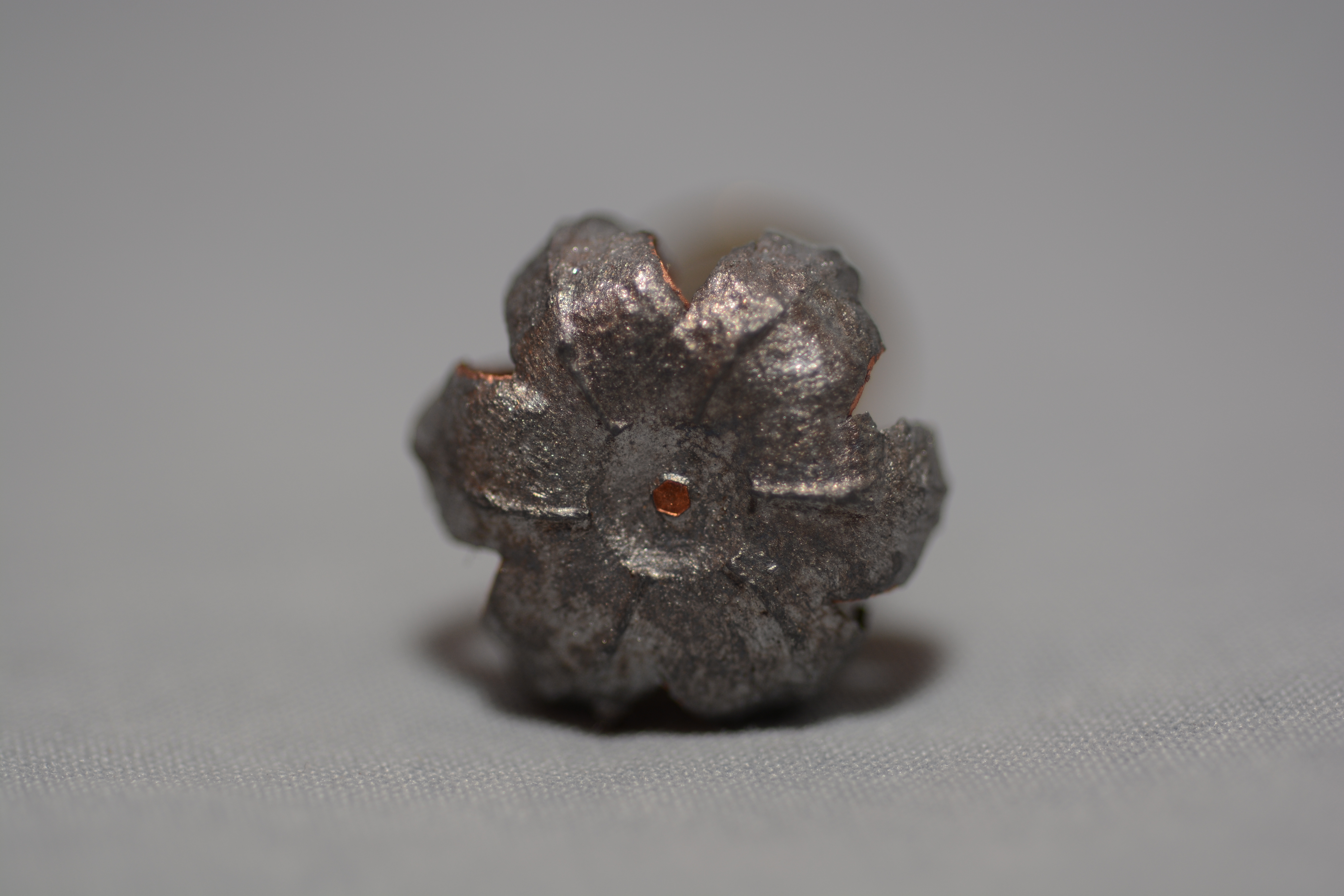

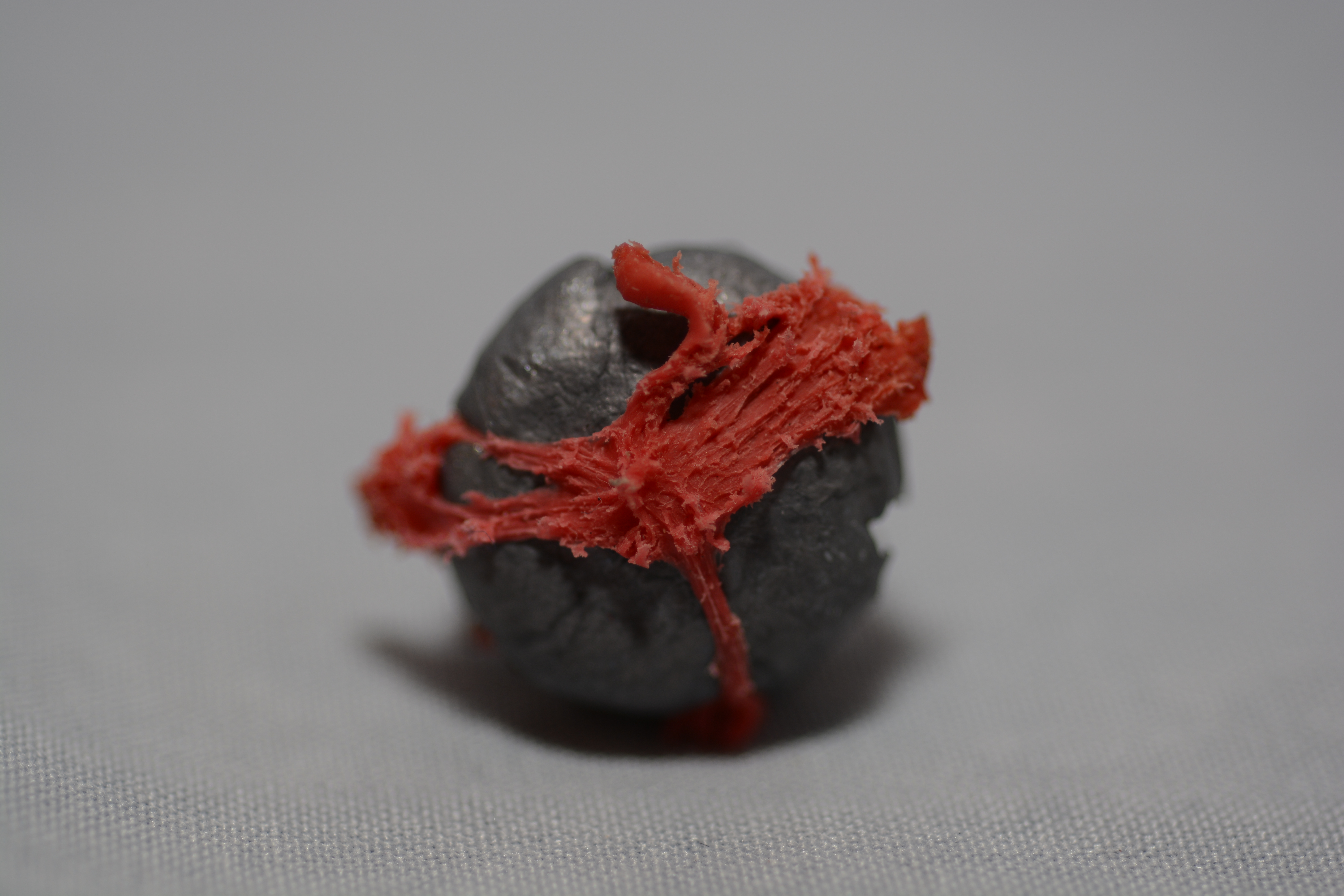

Hornady Critical Defense in Tissue Simulation

Hornady Critical Defense in Bone andTissue Simulation

Hornady Critical Duty in Tissue Simulation

Hornady Critical Duty in Bone and Tissue Simulation

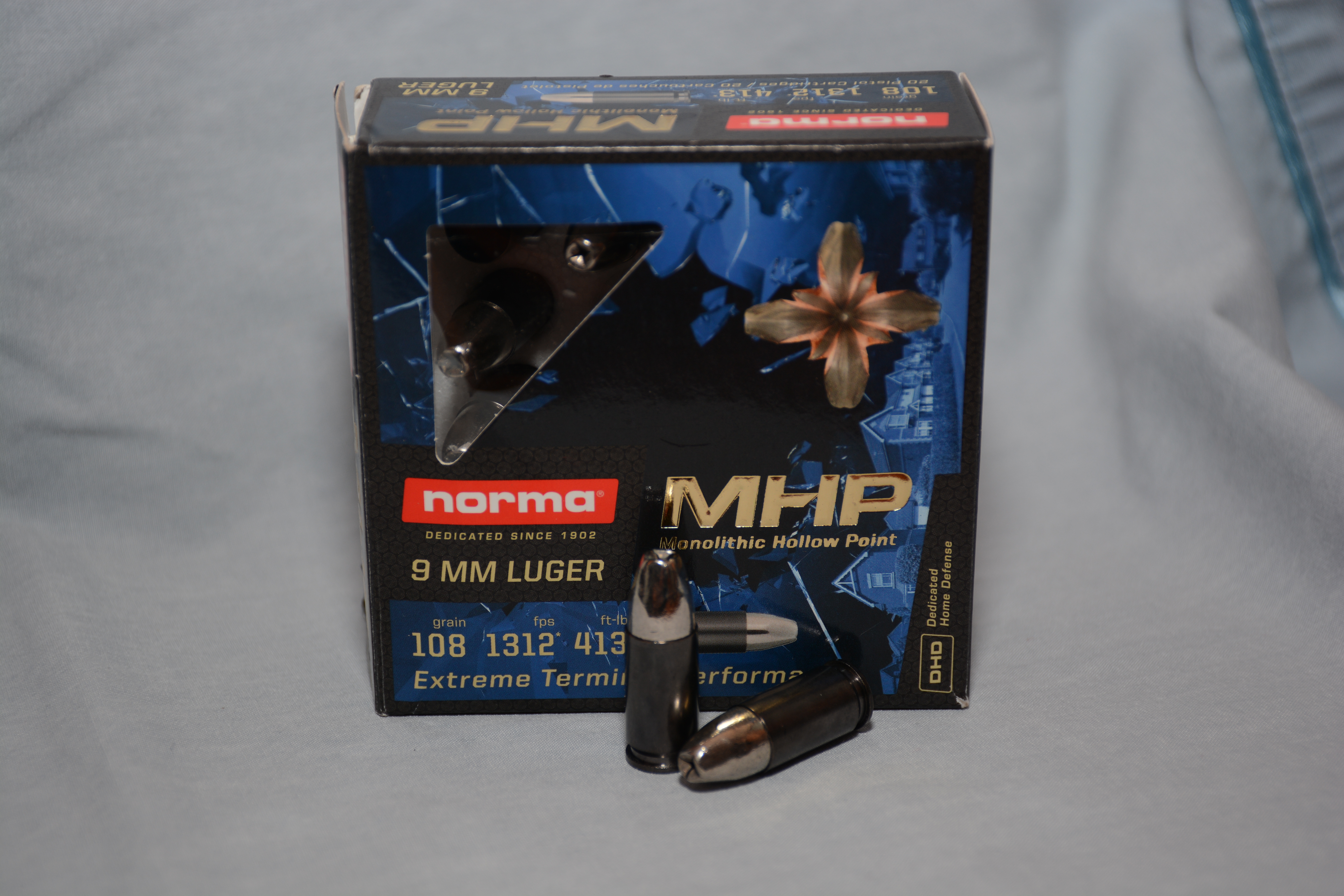

Norma M.H.P.  in Tissue Simulation

Norma M.H.P.  in Bone and Tissue Simulation

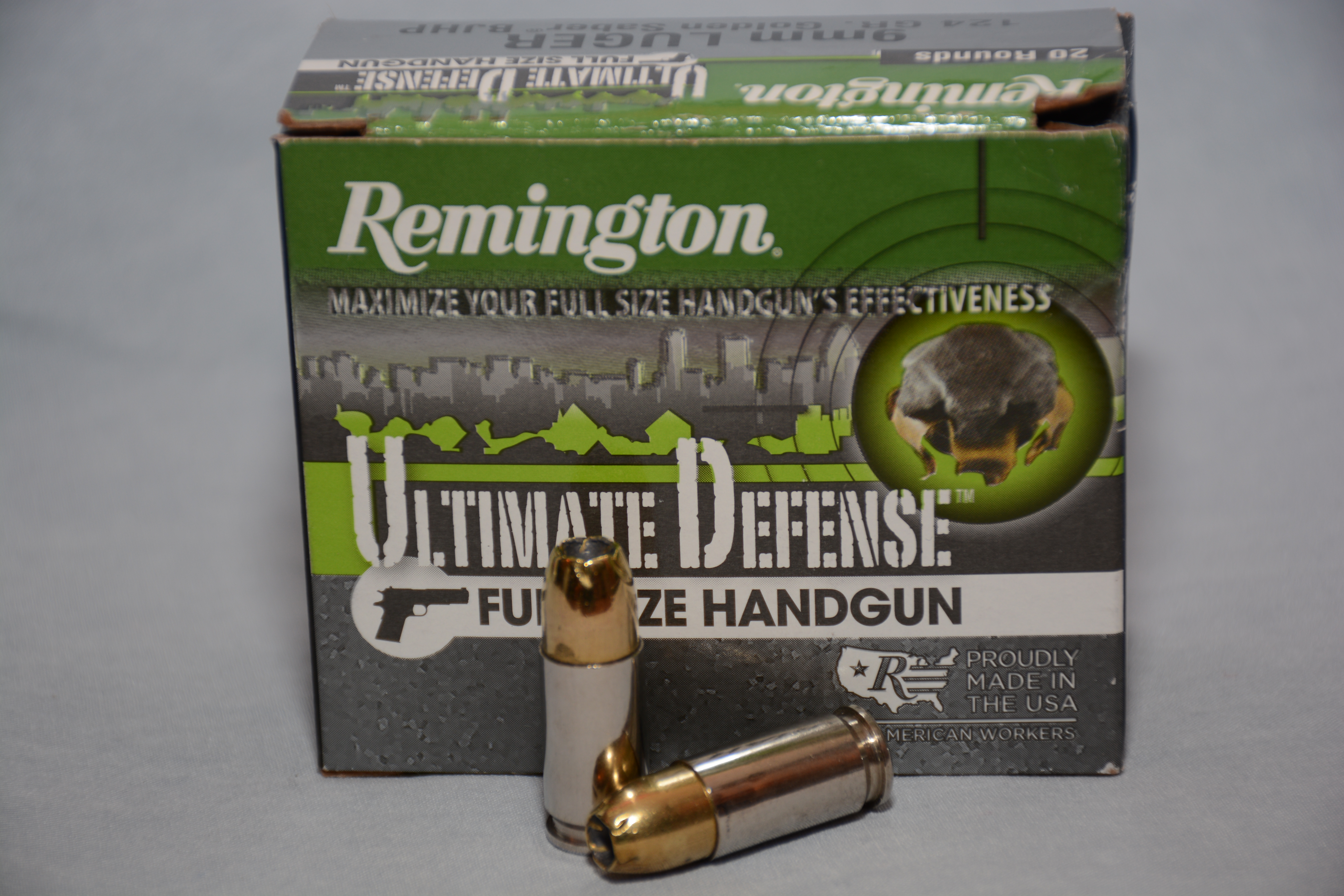

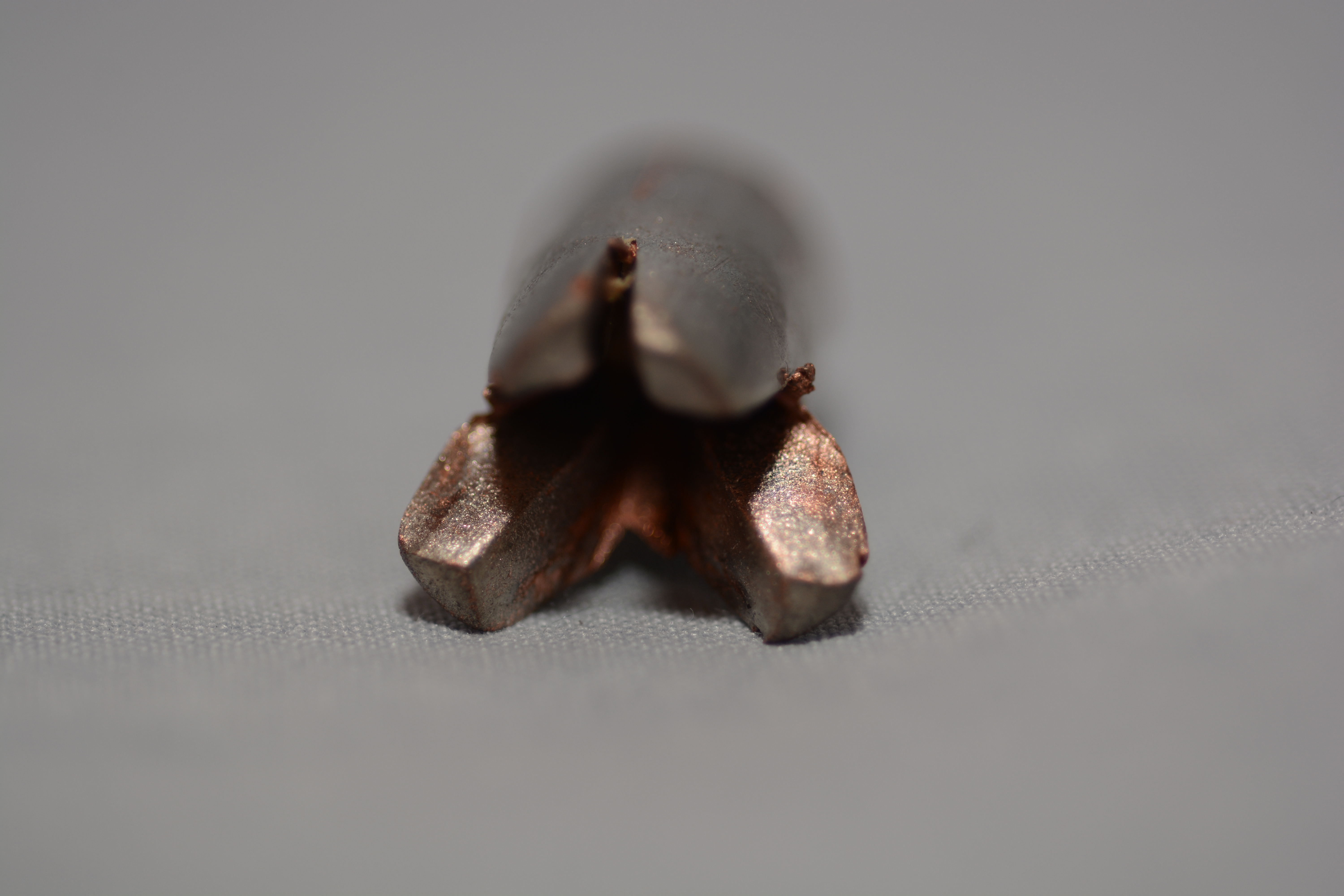

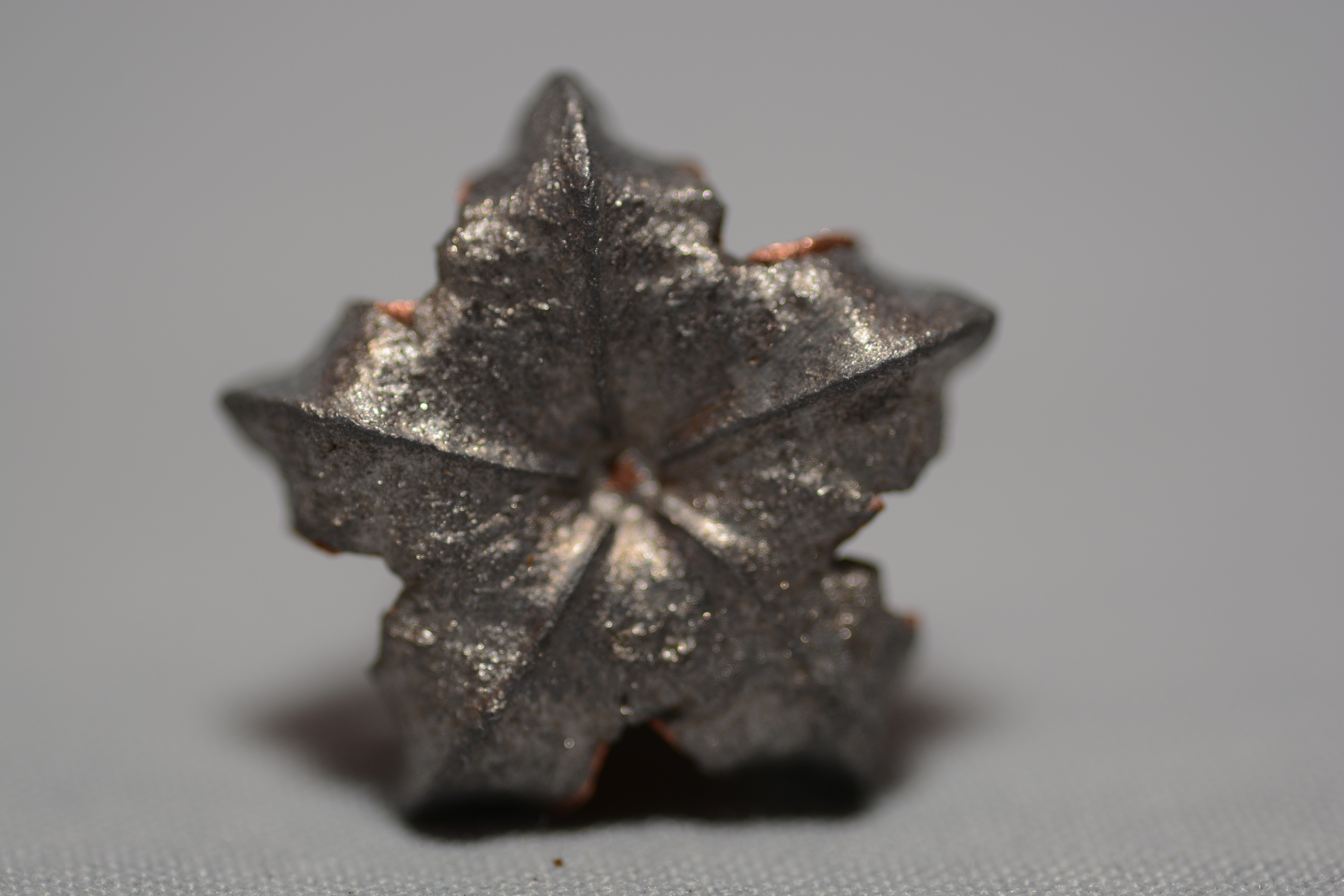

Remington Ultimate Defense Golden Sabre in Tissue Simulation

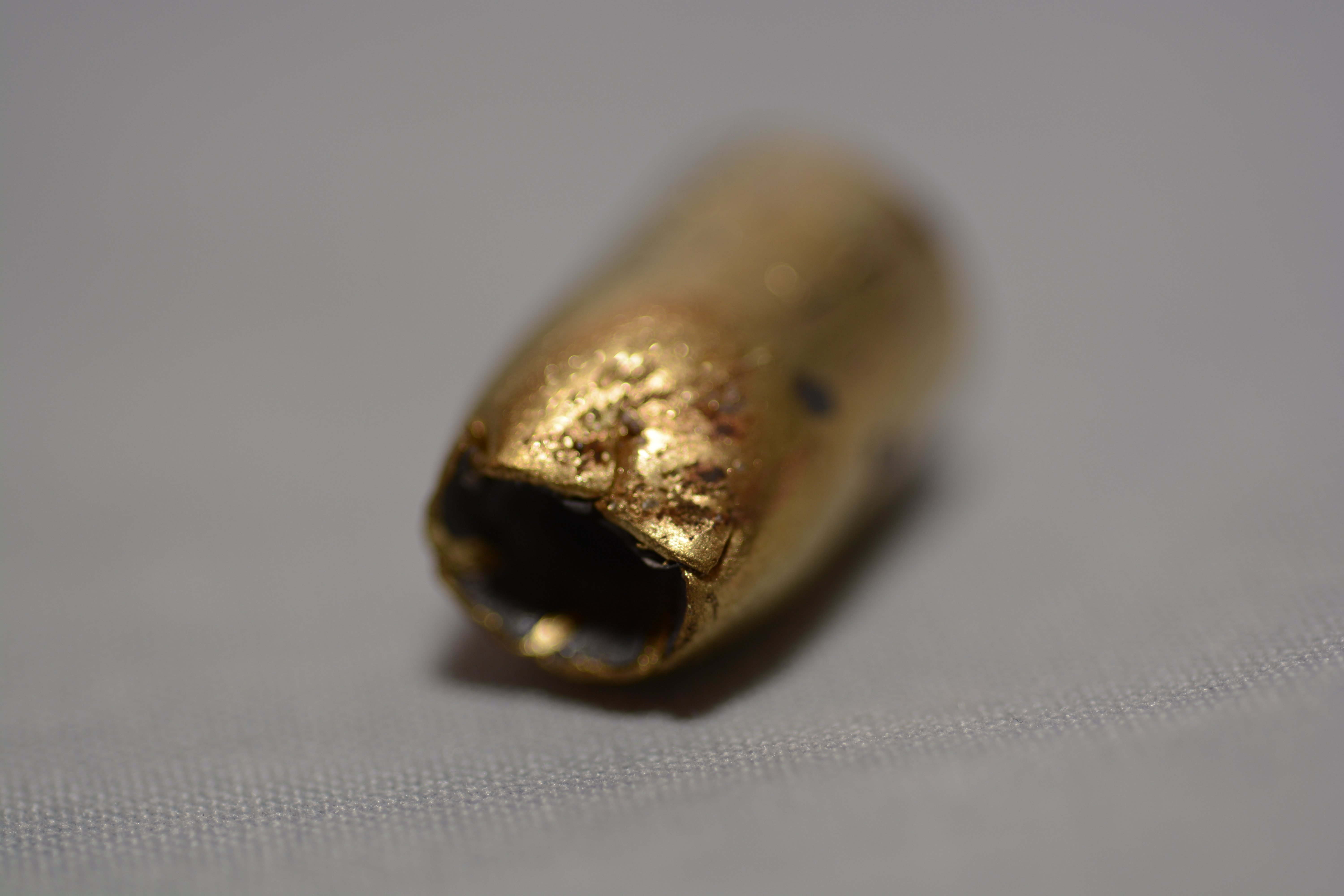

Remington Ultimate Defense Golden Sabre in Bone and Tissue Simulation

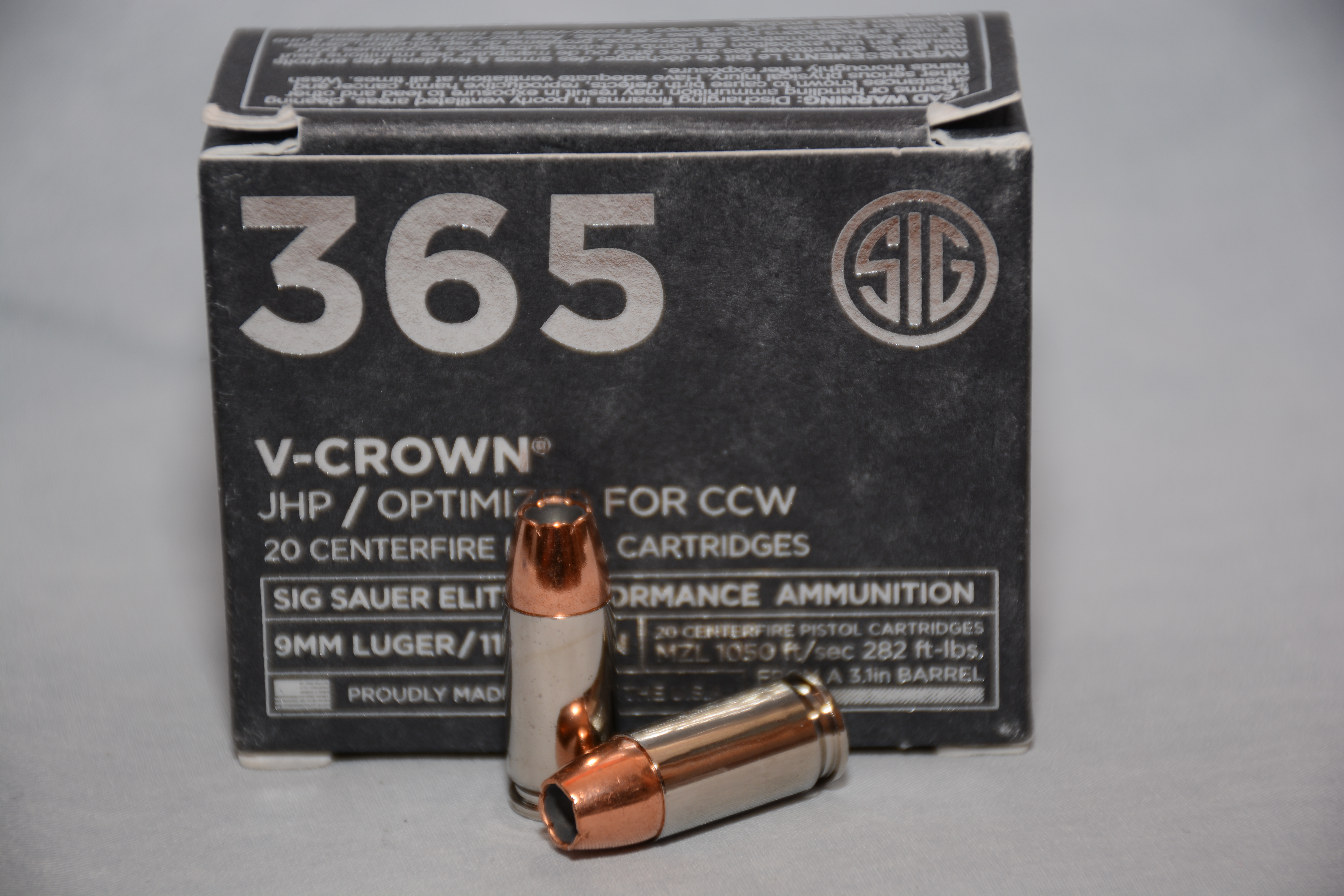

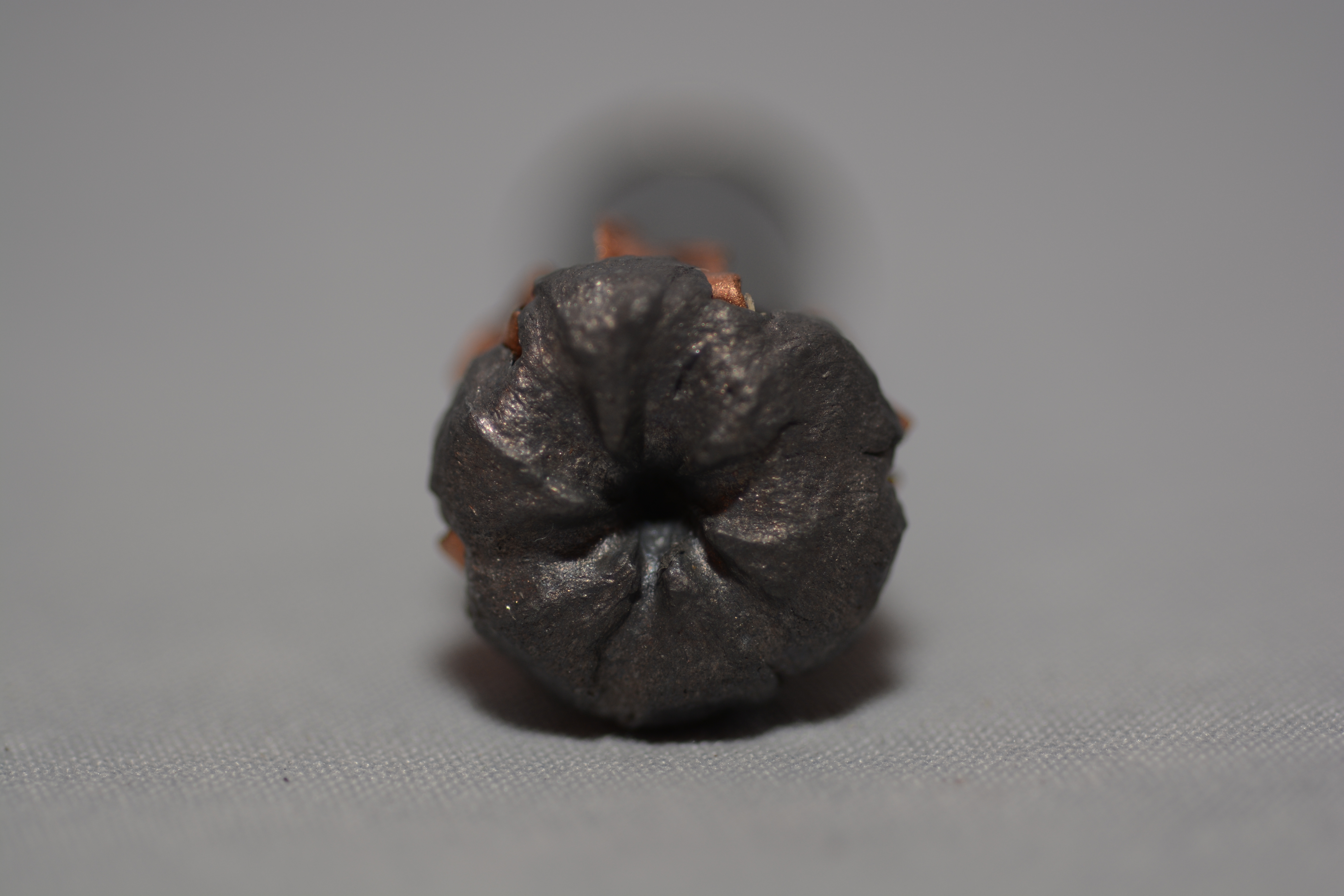

Sig Sauer 365 V-Crown  in Tissue Simulation

Sig Sauer 365 V-Crown  in Bone and Tissue Simulation

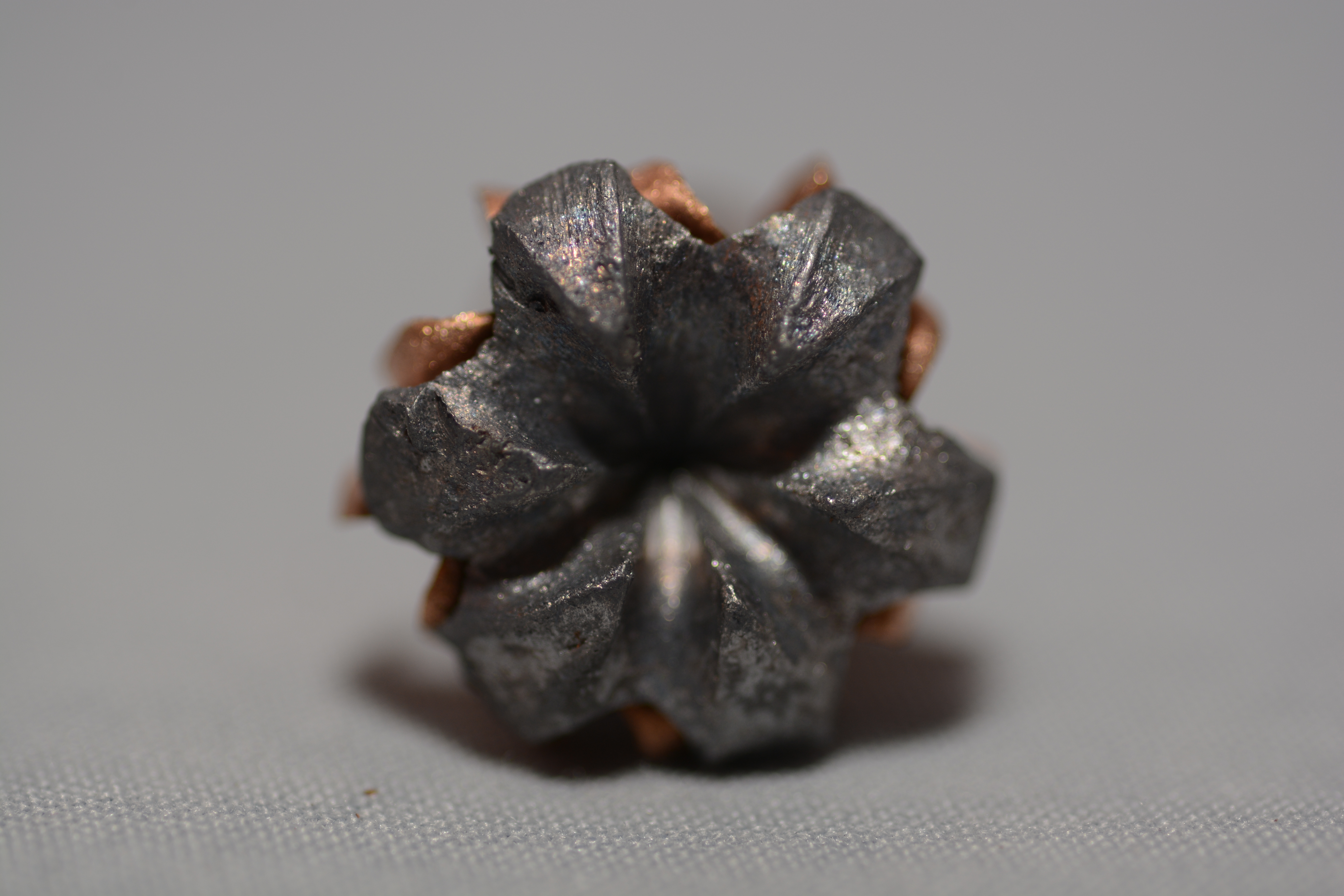

Sig Sauer 124 gr. V-Crown  in Tissue Simulation

Sig Sauer 124 gr.  V-Crown  in Bone and Tissue Simulation

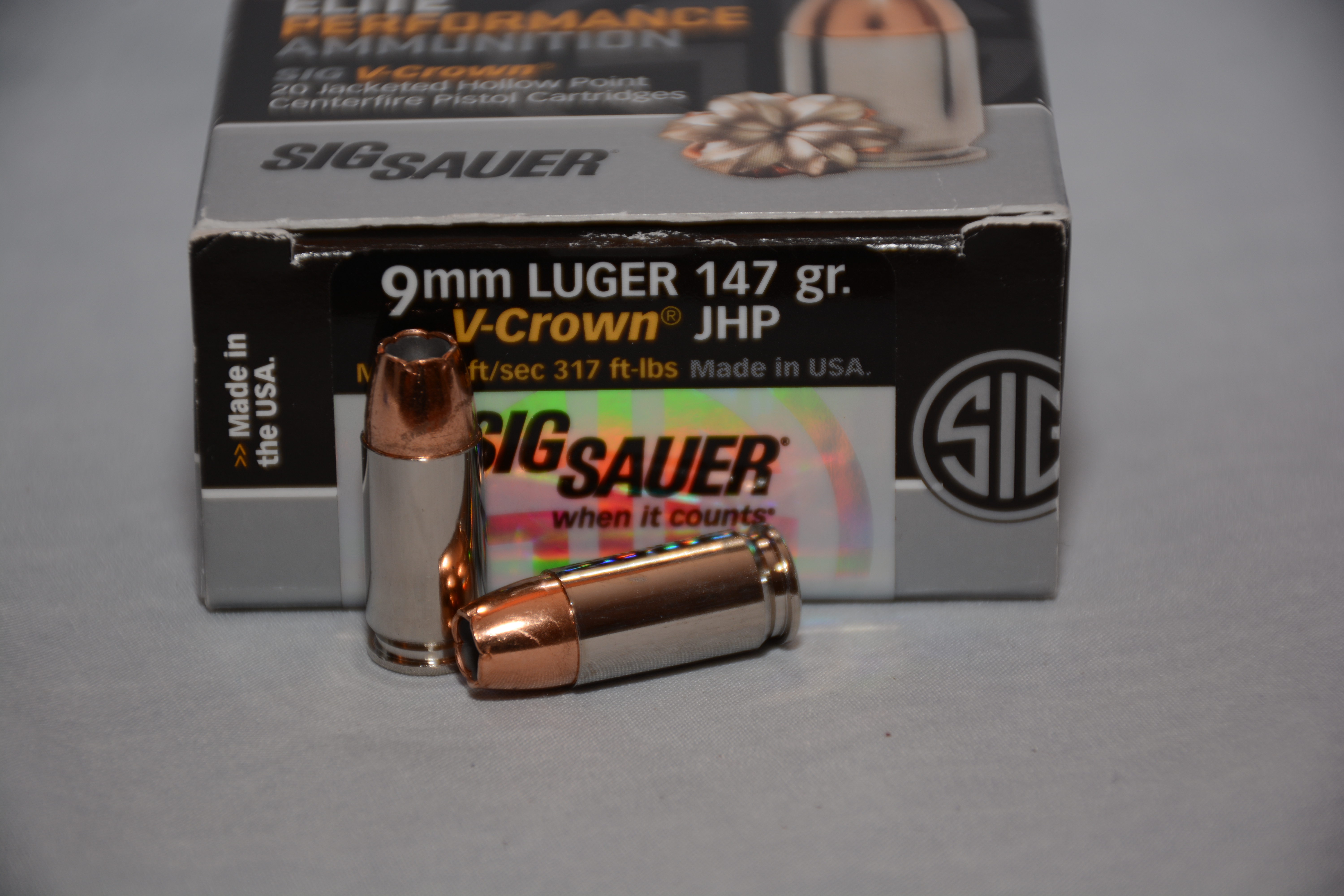

Sig Sauer 147 gr.  V-Crown  in Tissue Simulation

Sig Sauer 147 gr.  V-Crown  in Bone and Tissue Simulation

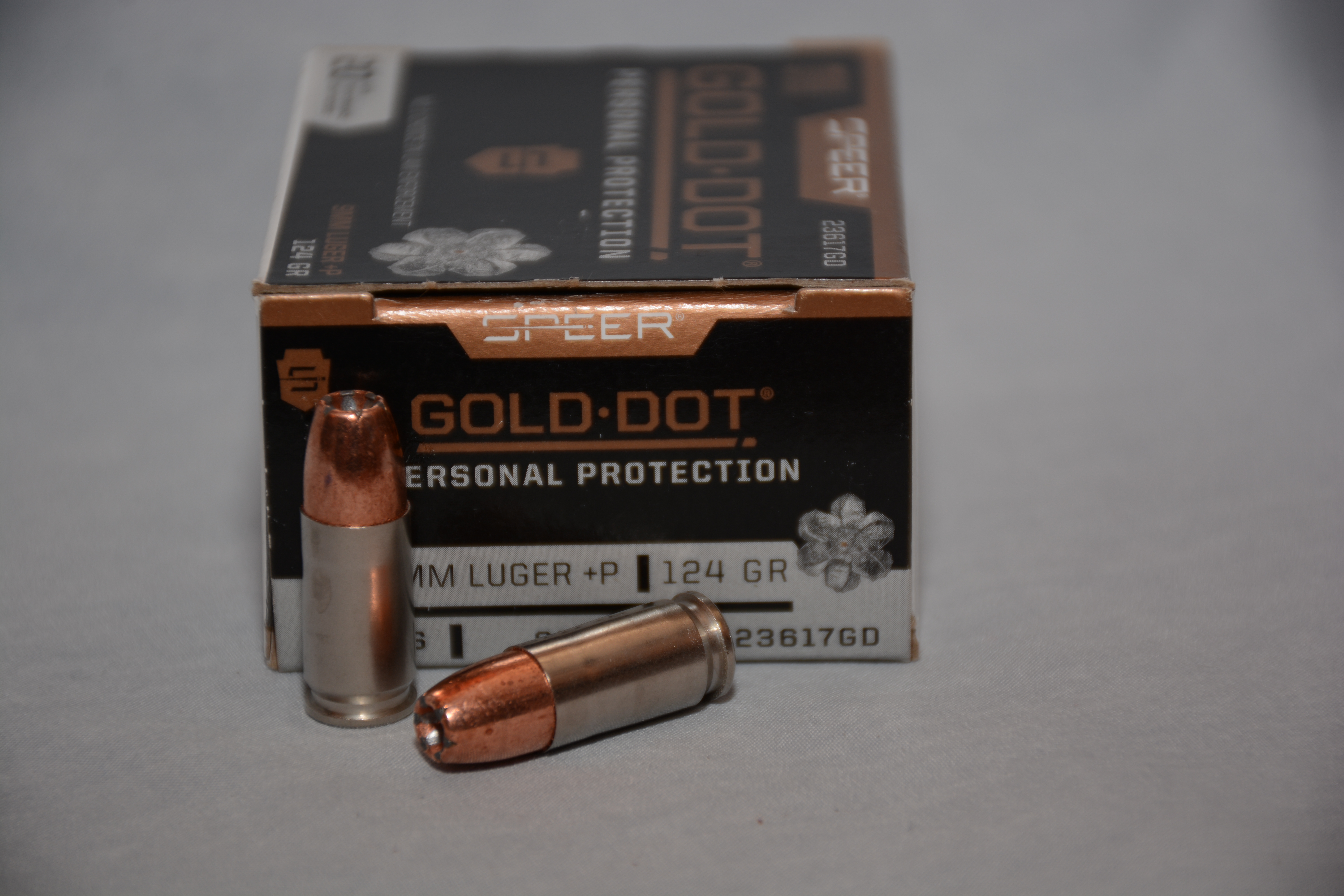

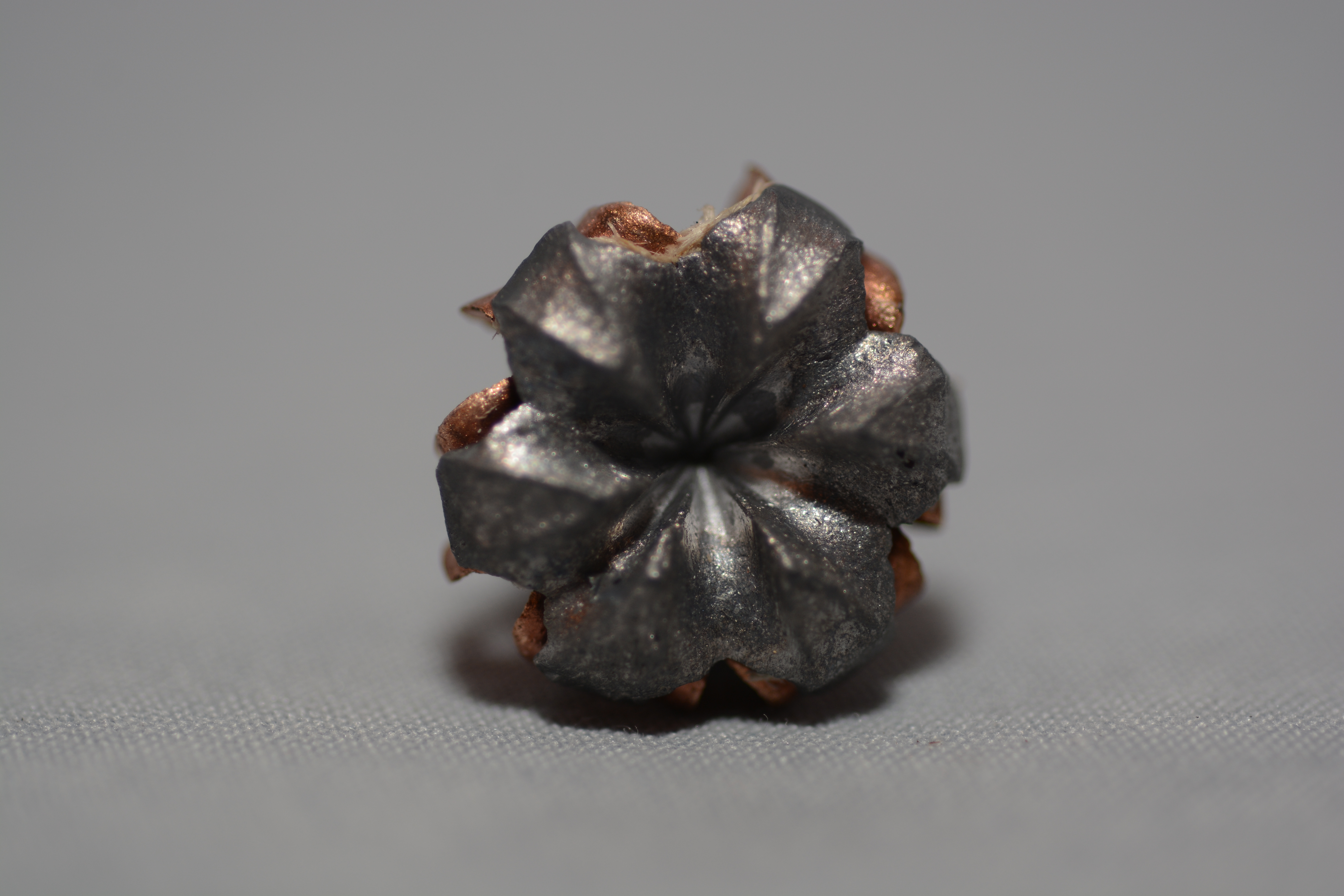

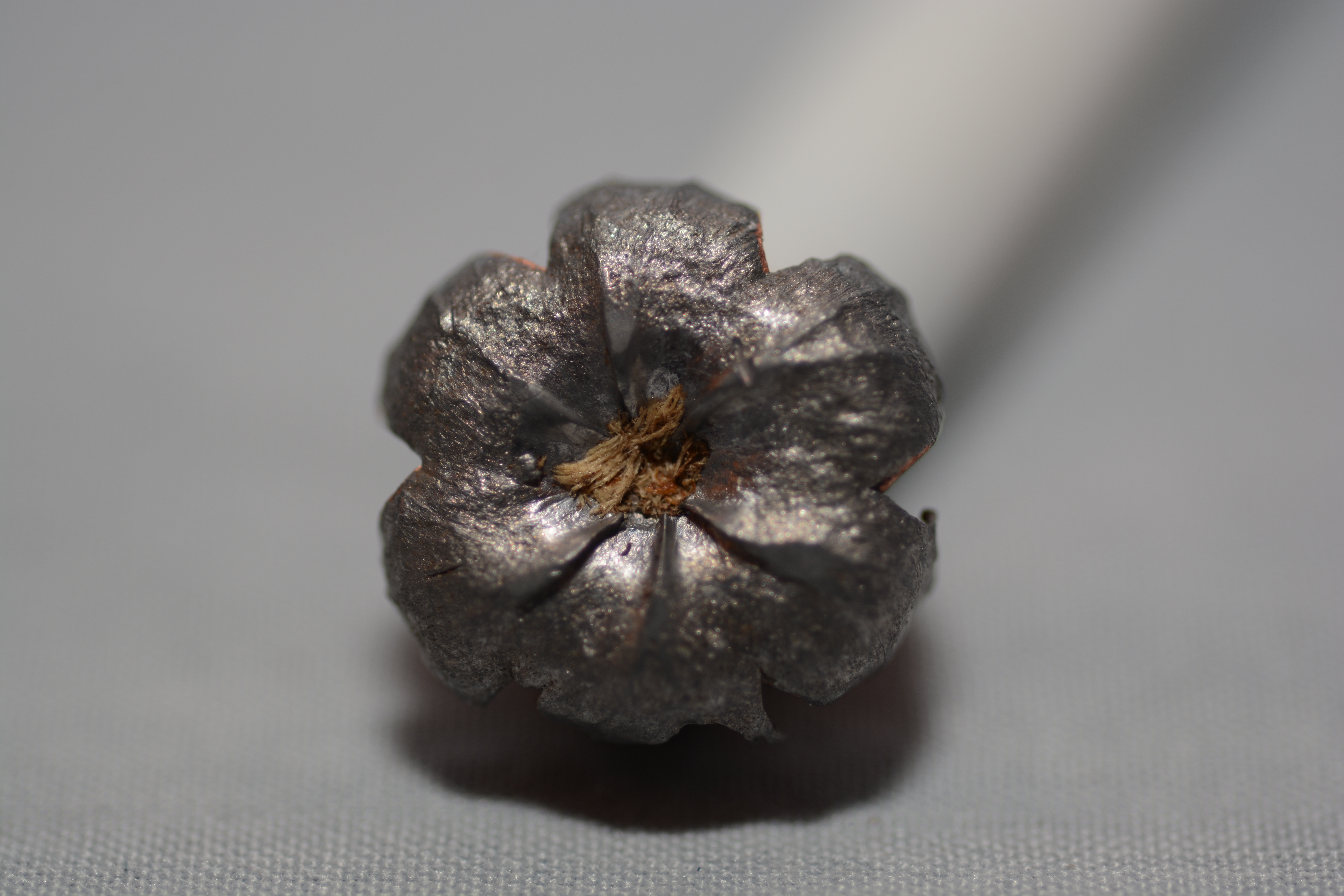

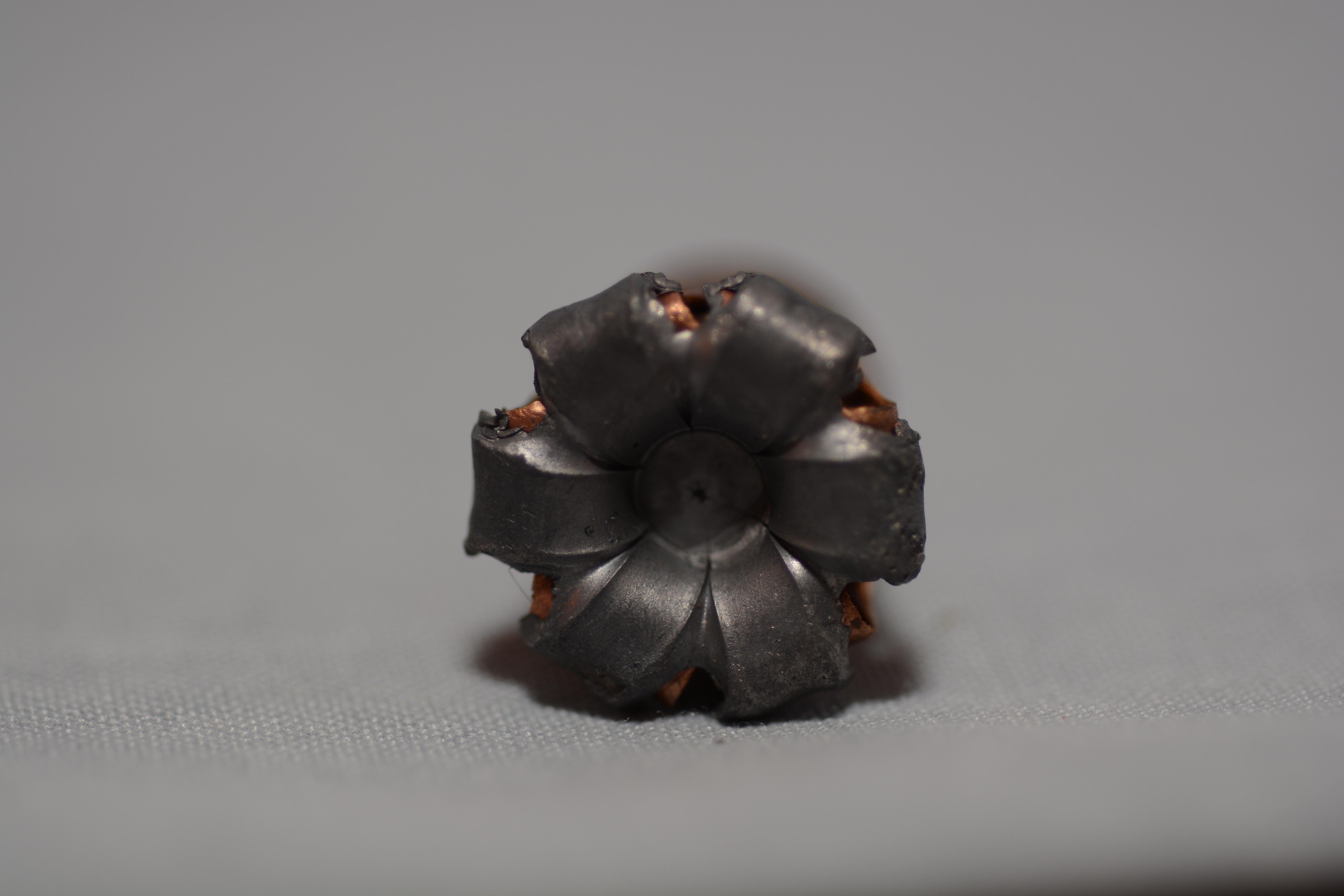

Speer Gold Dot 124 gr Tissue Simulation

Speer Gold Dot 124 gr Bone and Tissue Simulation

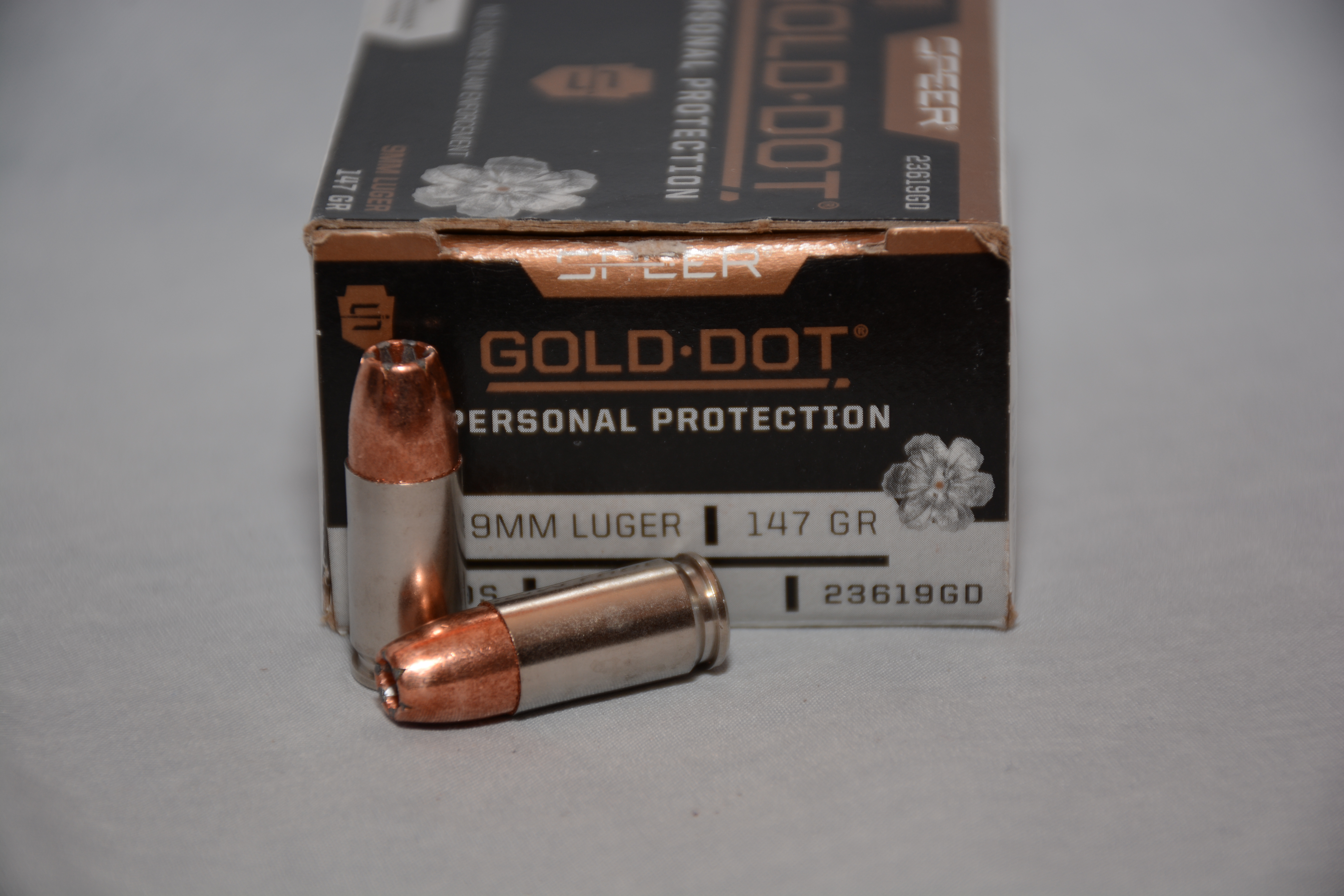

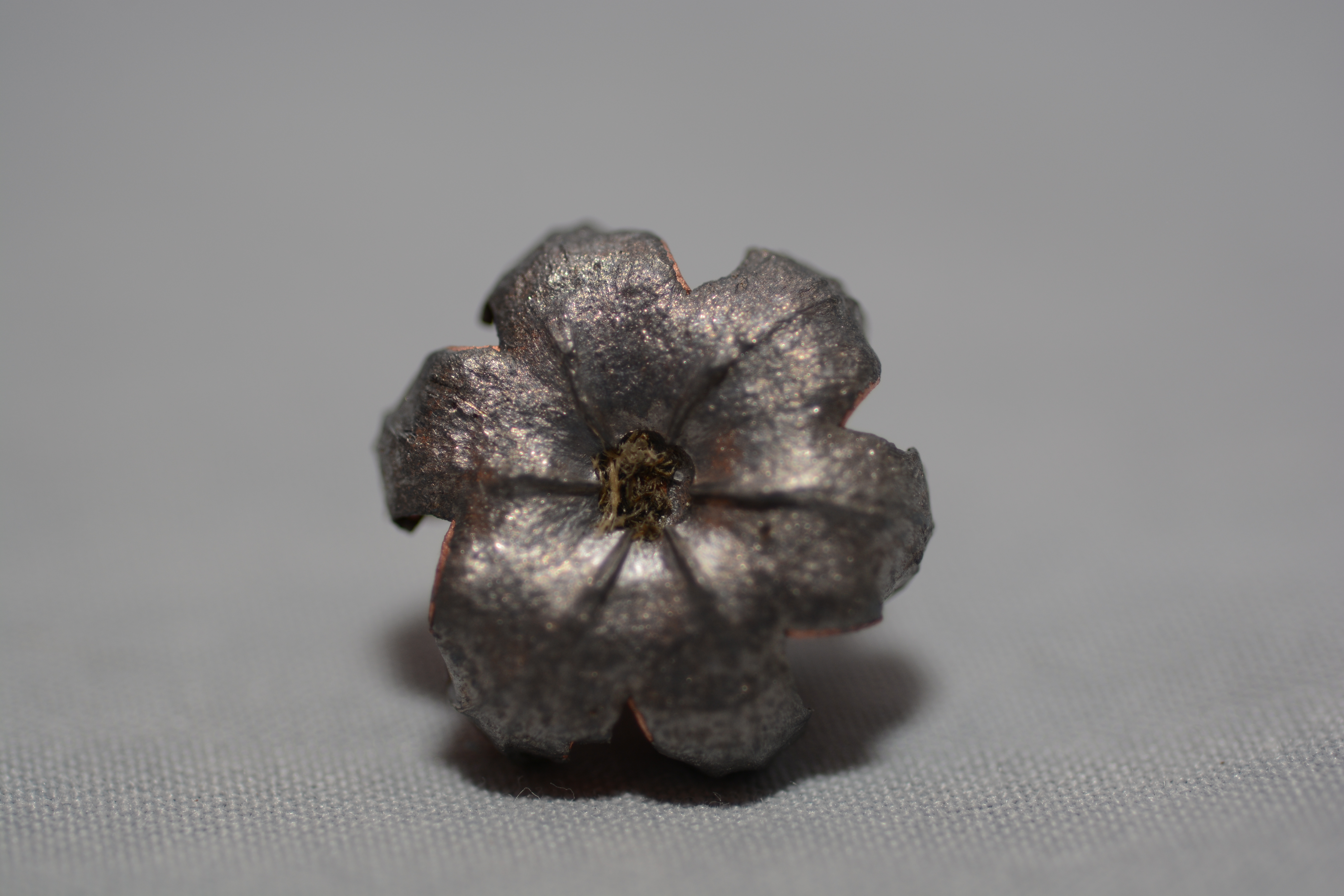

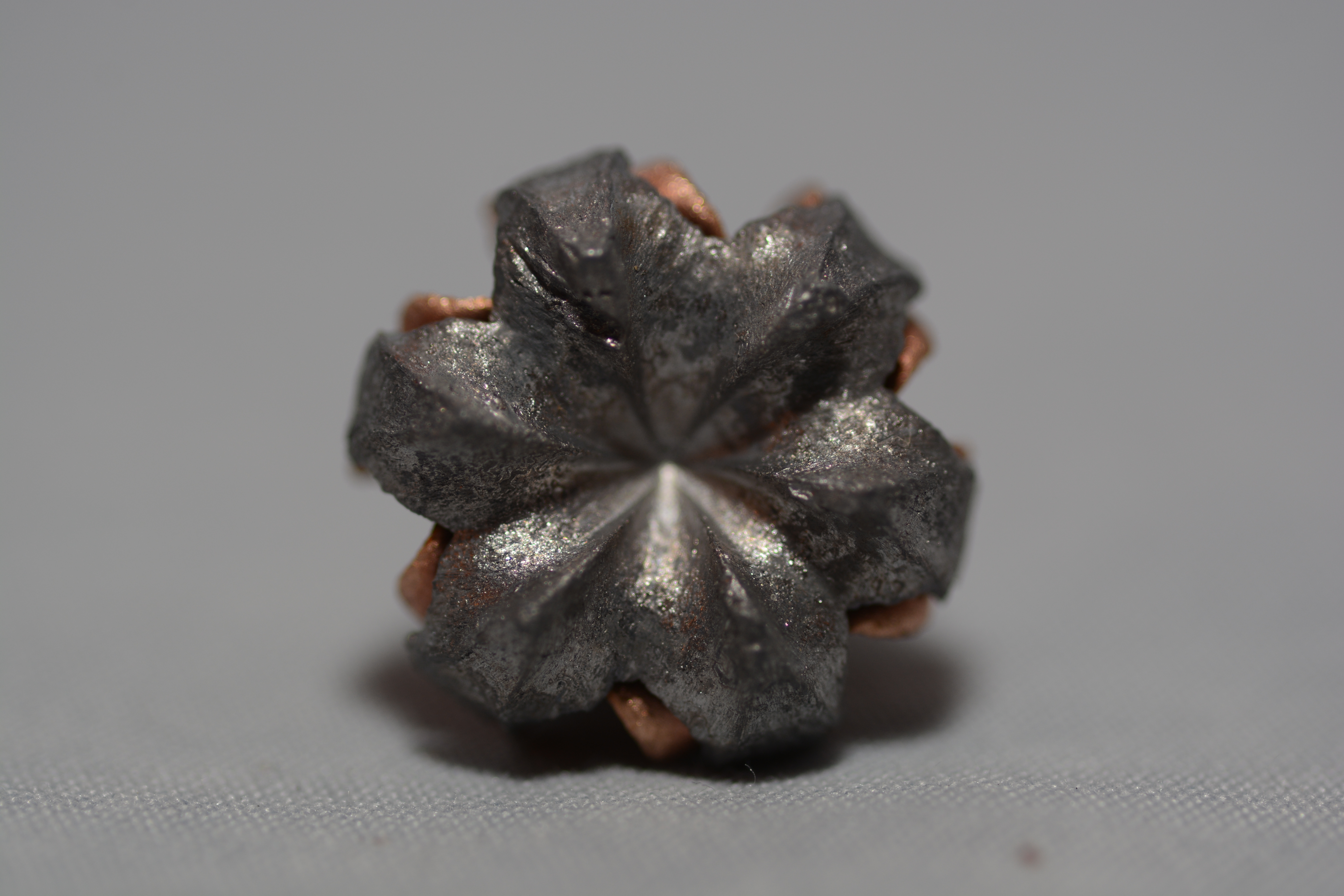

Speer Gold Dot 147gr Tissue Simulation

Speer Gold Dot 147 gr in Bone and Tissue Simulation



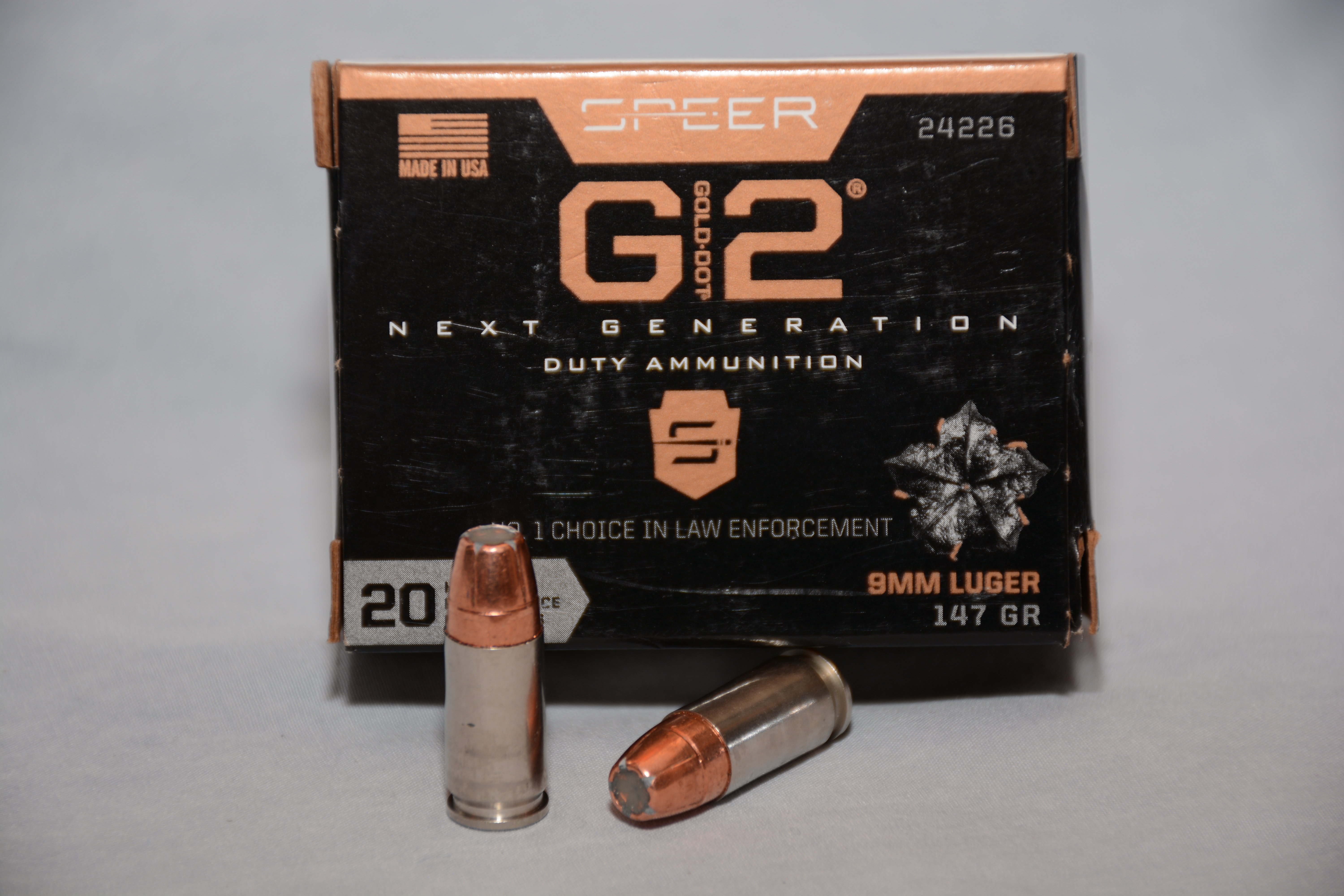

Speer Gold Dot G2 Duty 124 gr Tissue Simulation

Speer Gold Dot G2 Duty 124 gr in Bone and Tissue Simulation

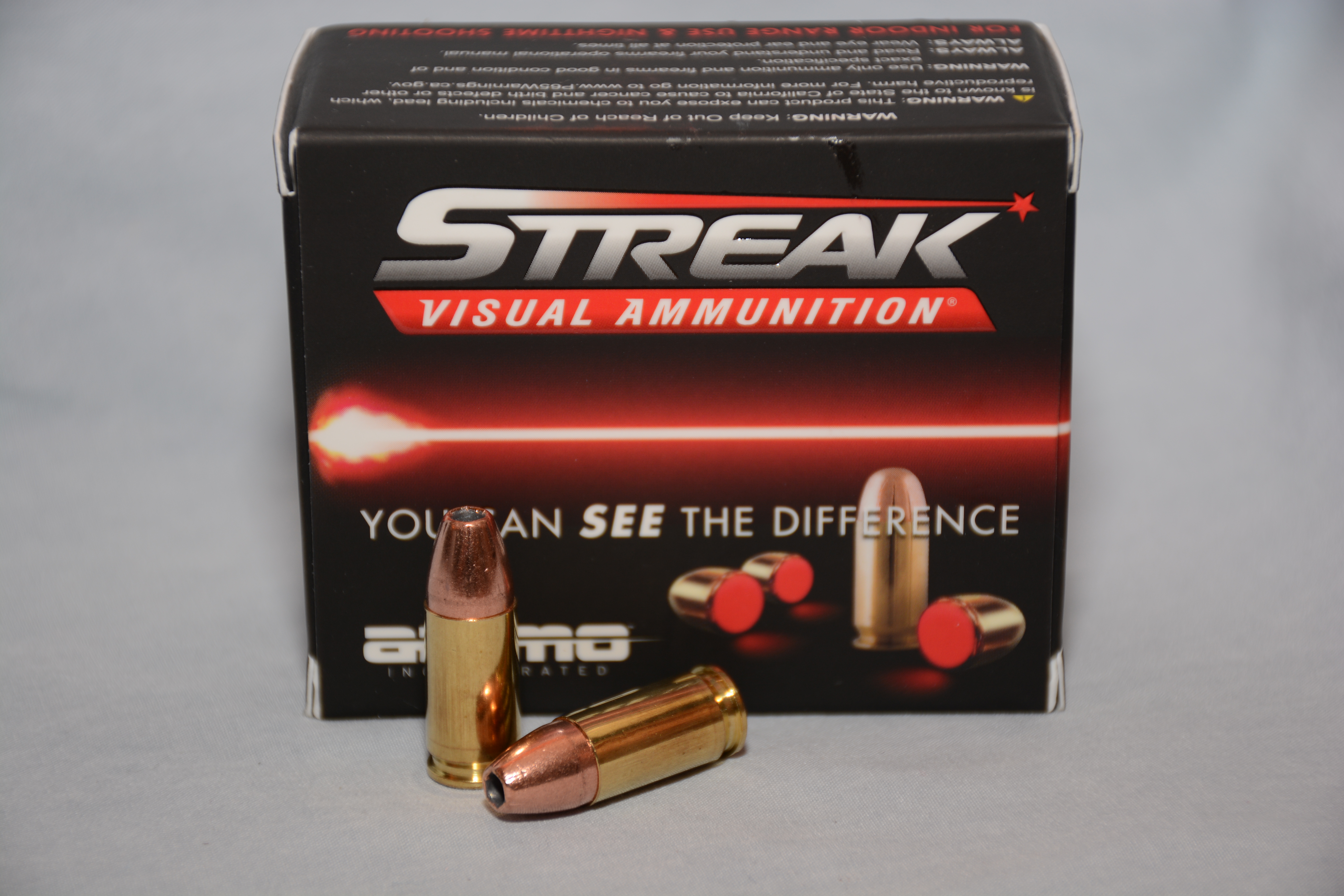

STREAK Visual Ammunition in Tissue Simulation

STREAK Visual Ammunition in Bone and Tissue Simulation

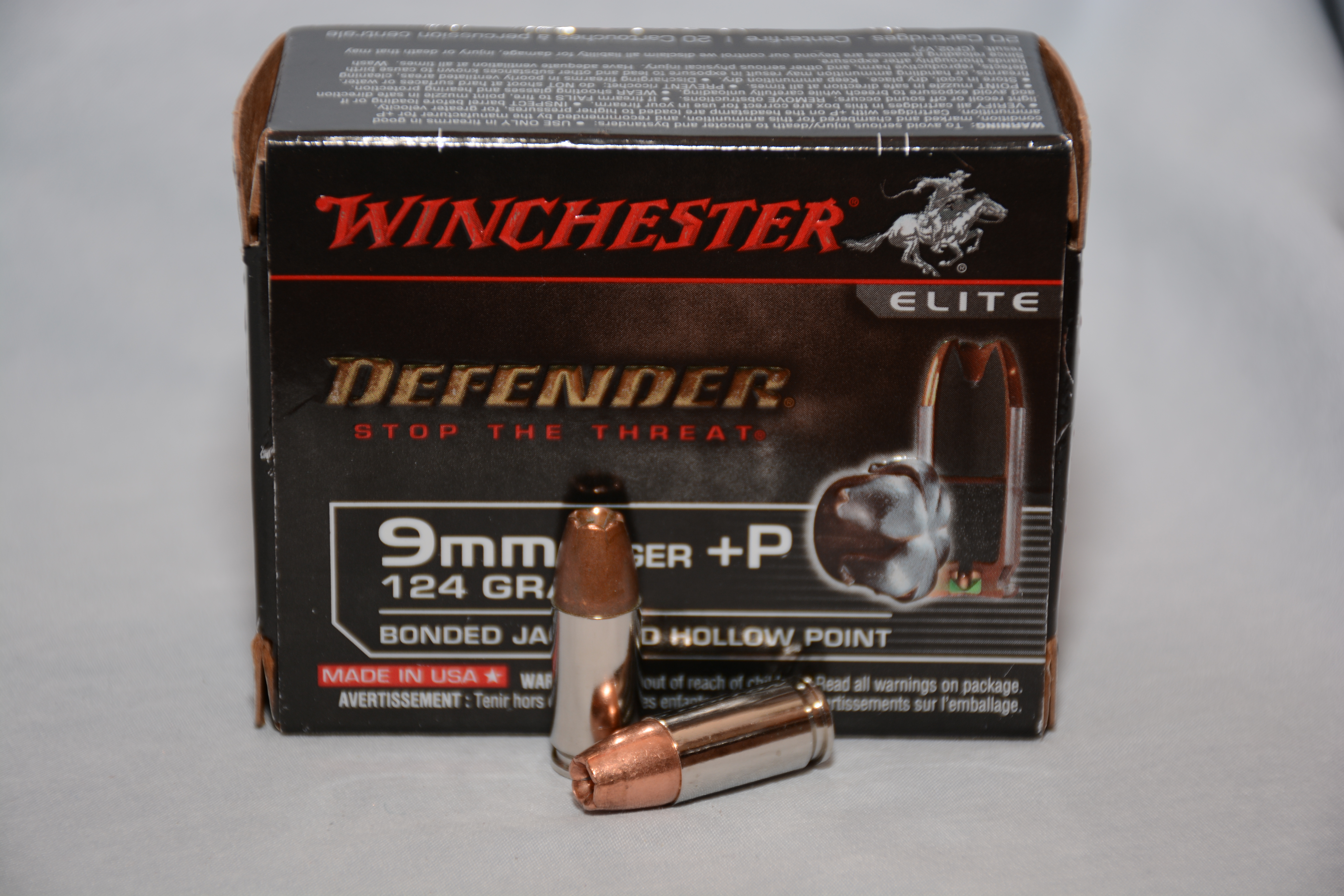

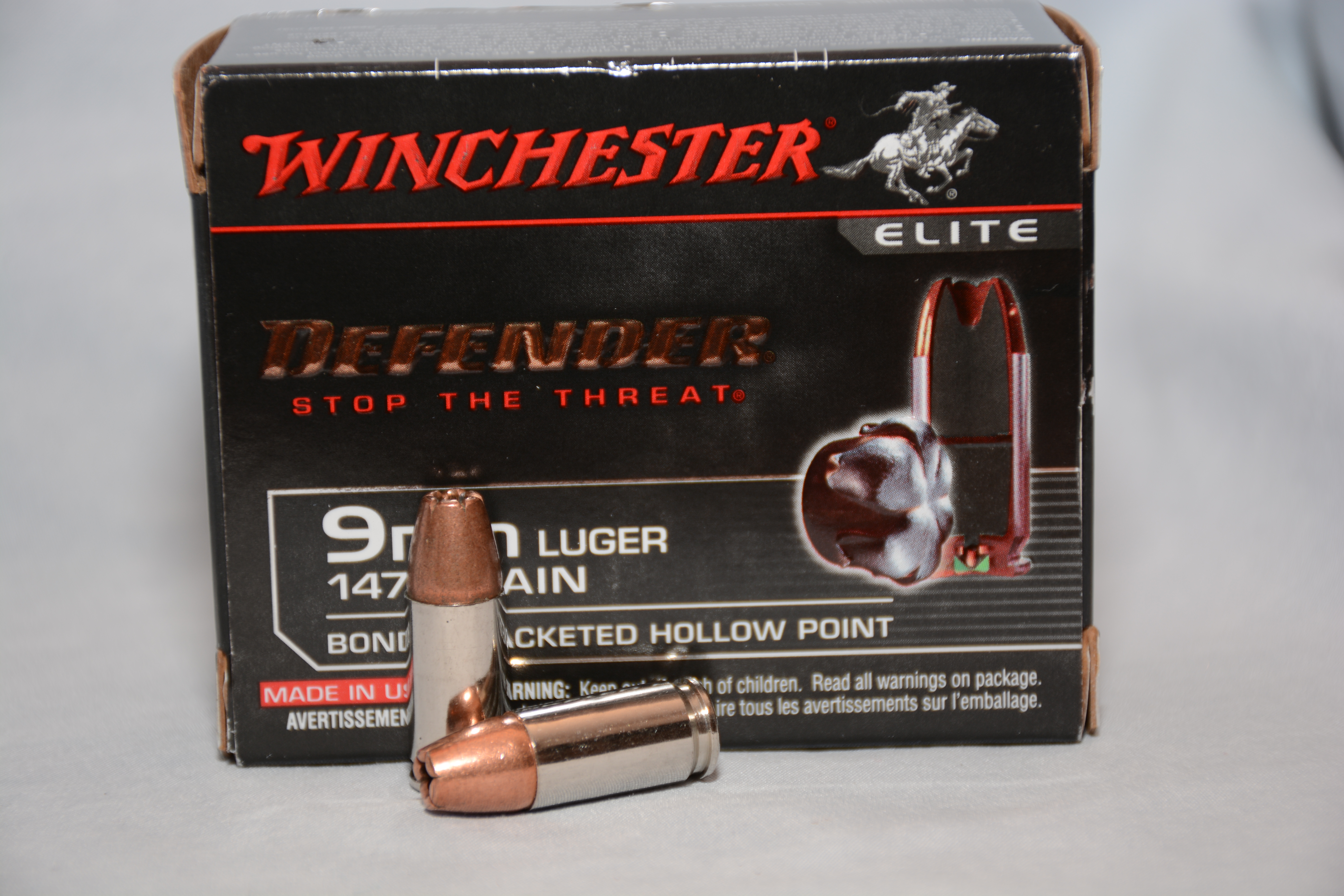

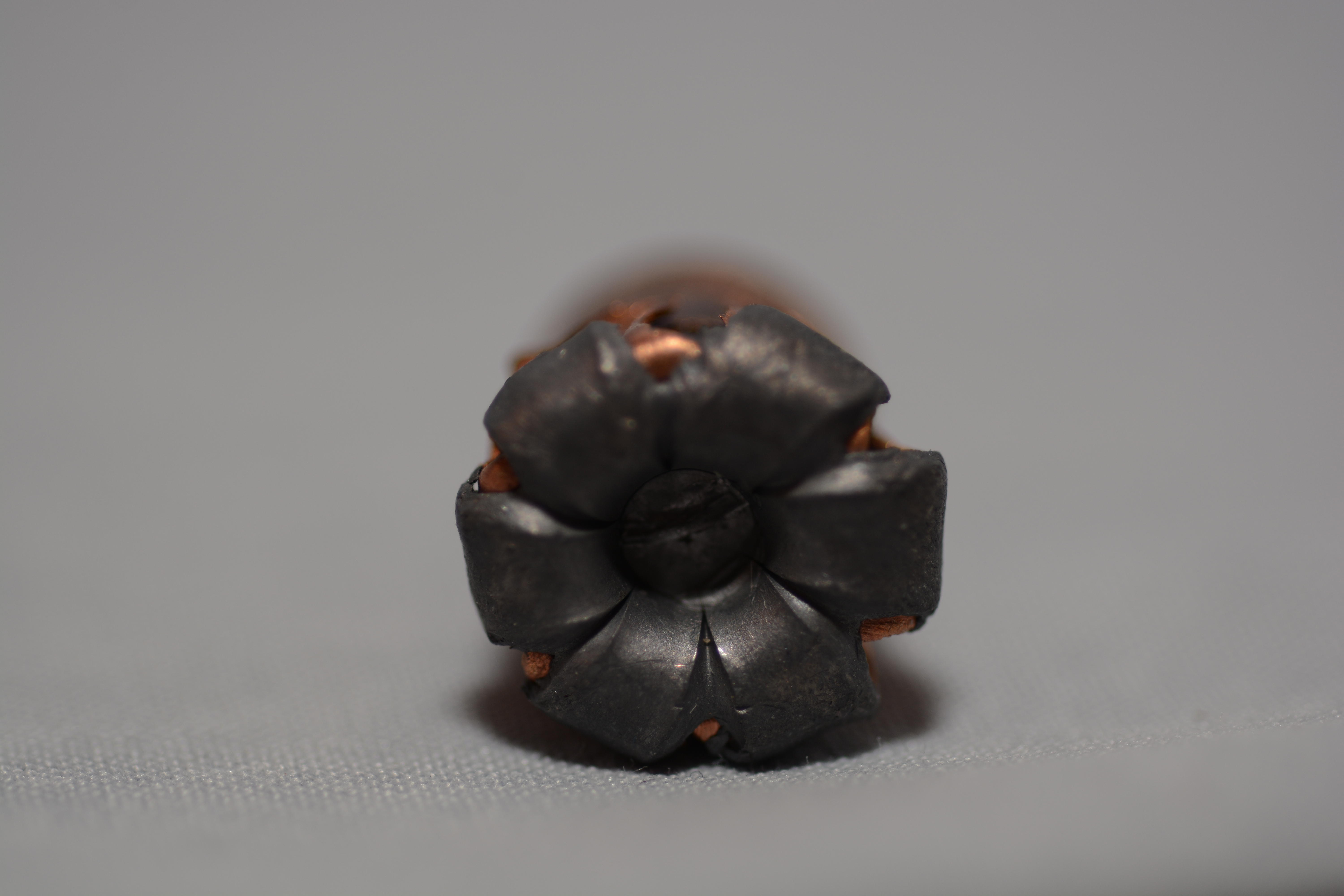

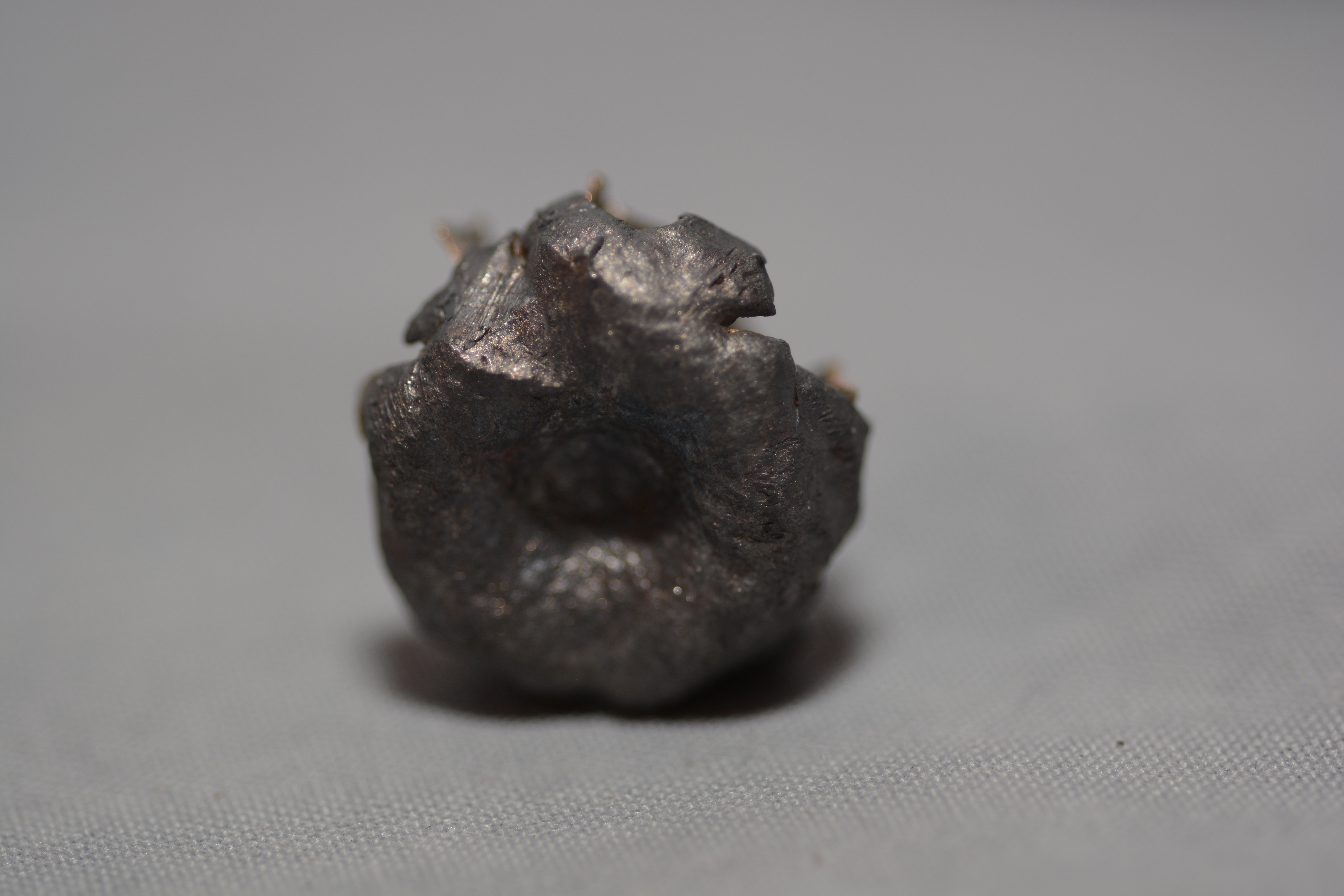

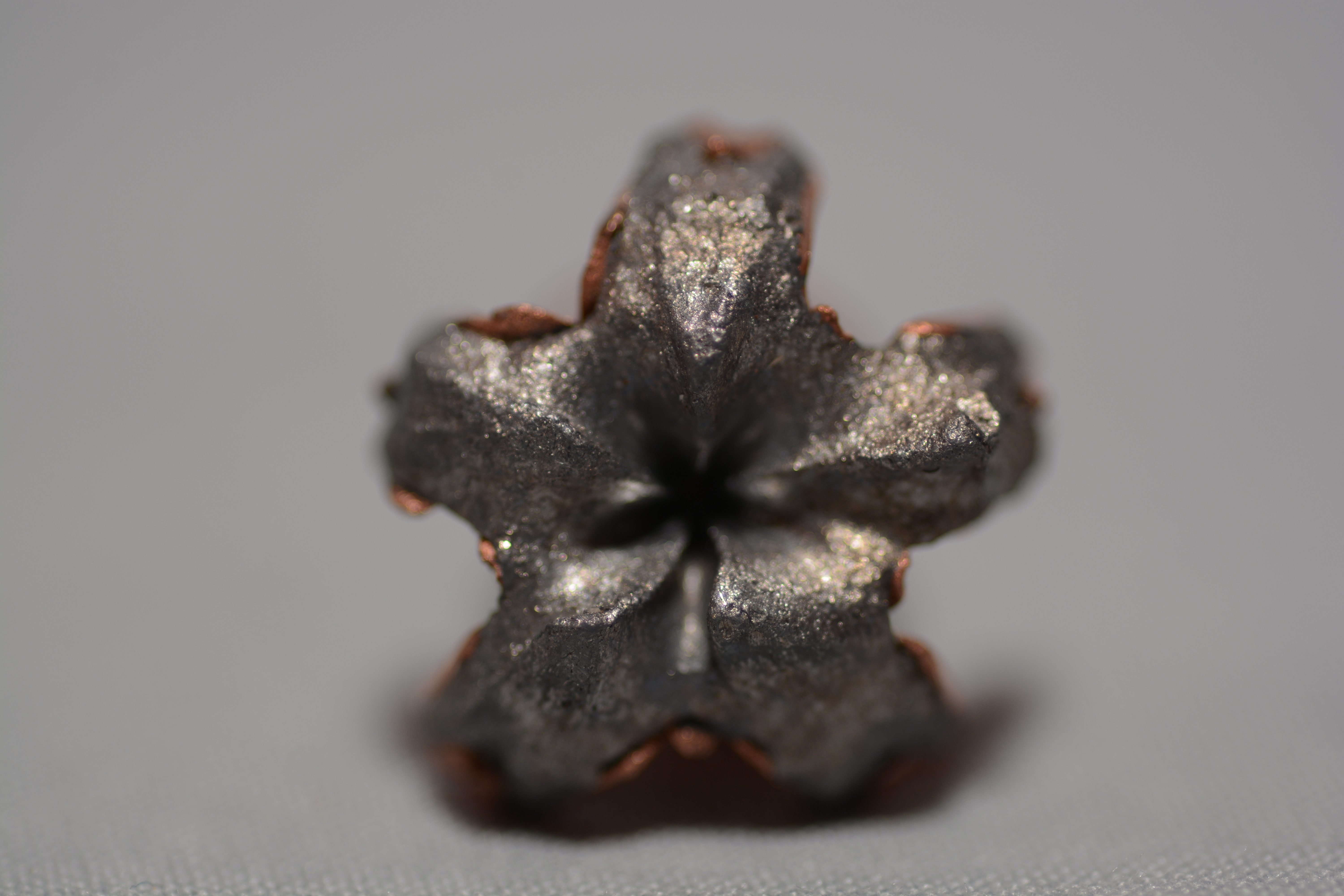

Winchester Defender 124 gr +P in Tissue Simulation

Winchester Defender 124 gr +P in Bone and Tissue Simulation

Winchester Defender 147 gr  in Tissue Simulation

Winchester Defender 147 gr  in Bone and Tissue Simulation

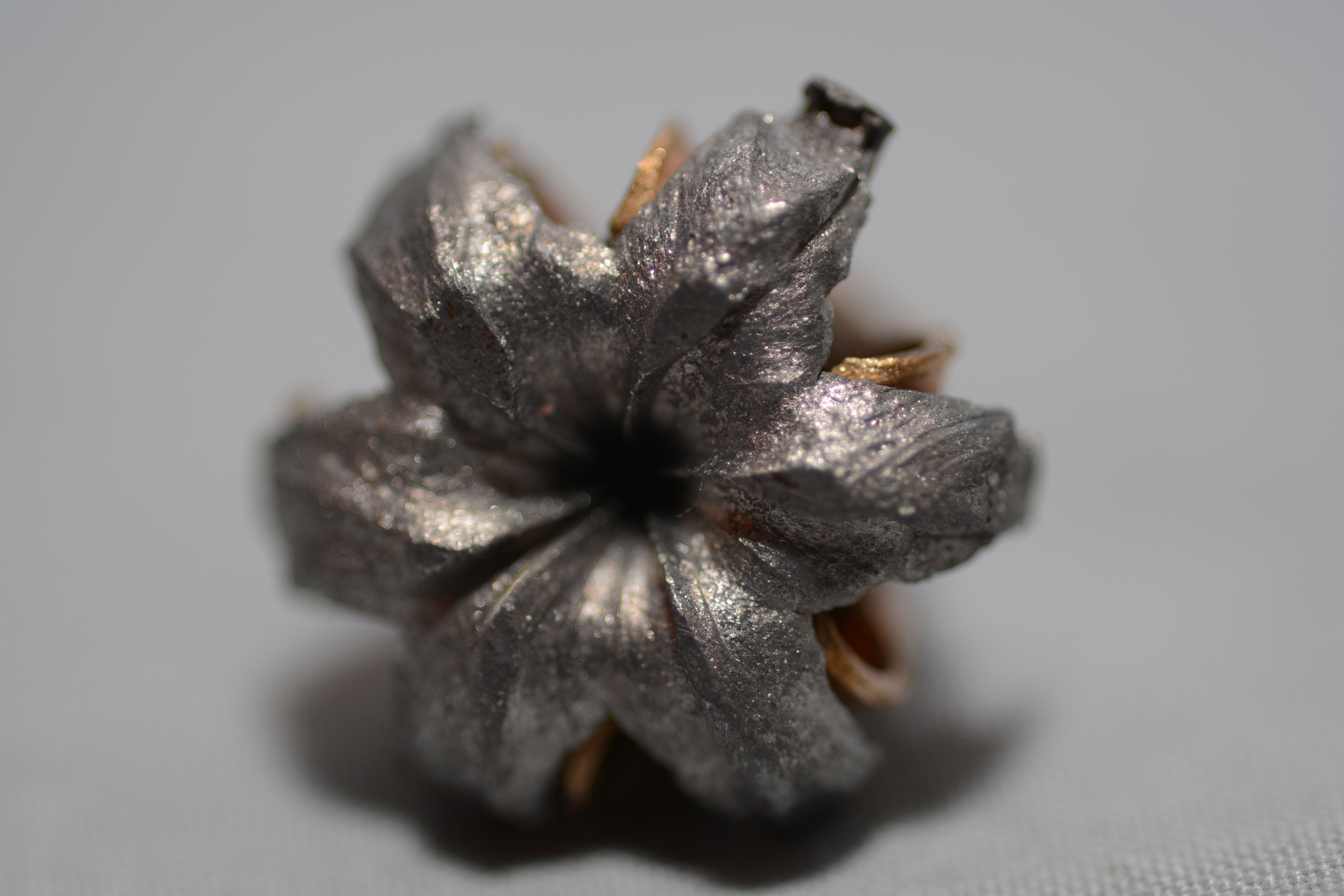

Winchester SilverTip 124 gr  in Tissue Simulation

Winchester SilverTip 124 gr  in Bone and Tissue Simulation

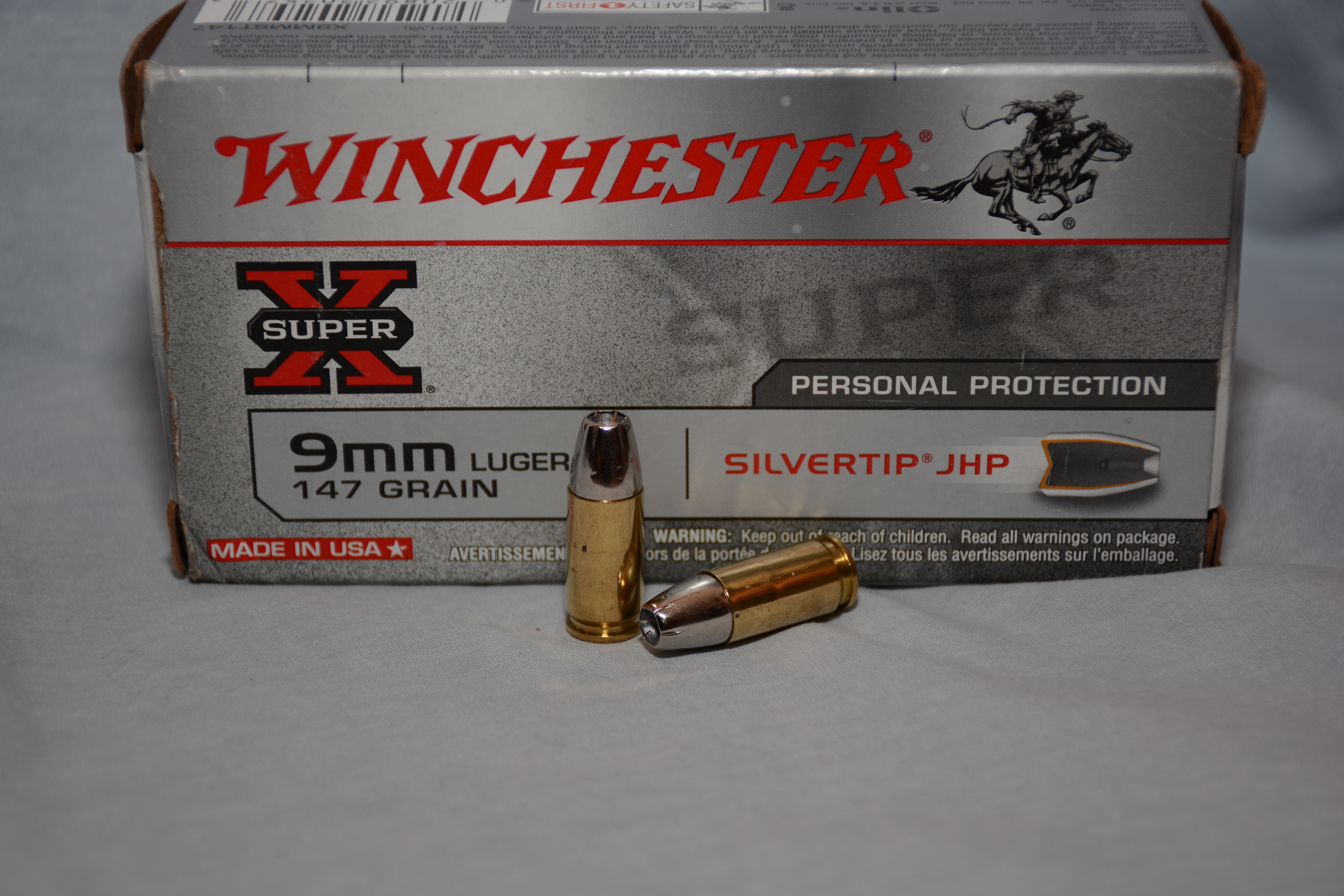

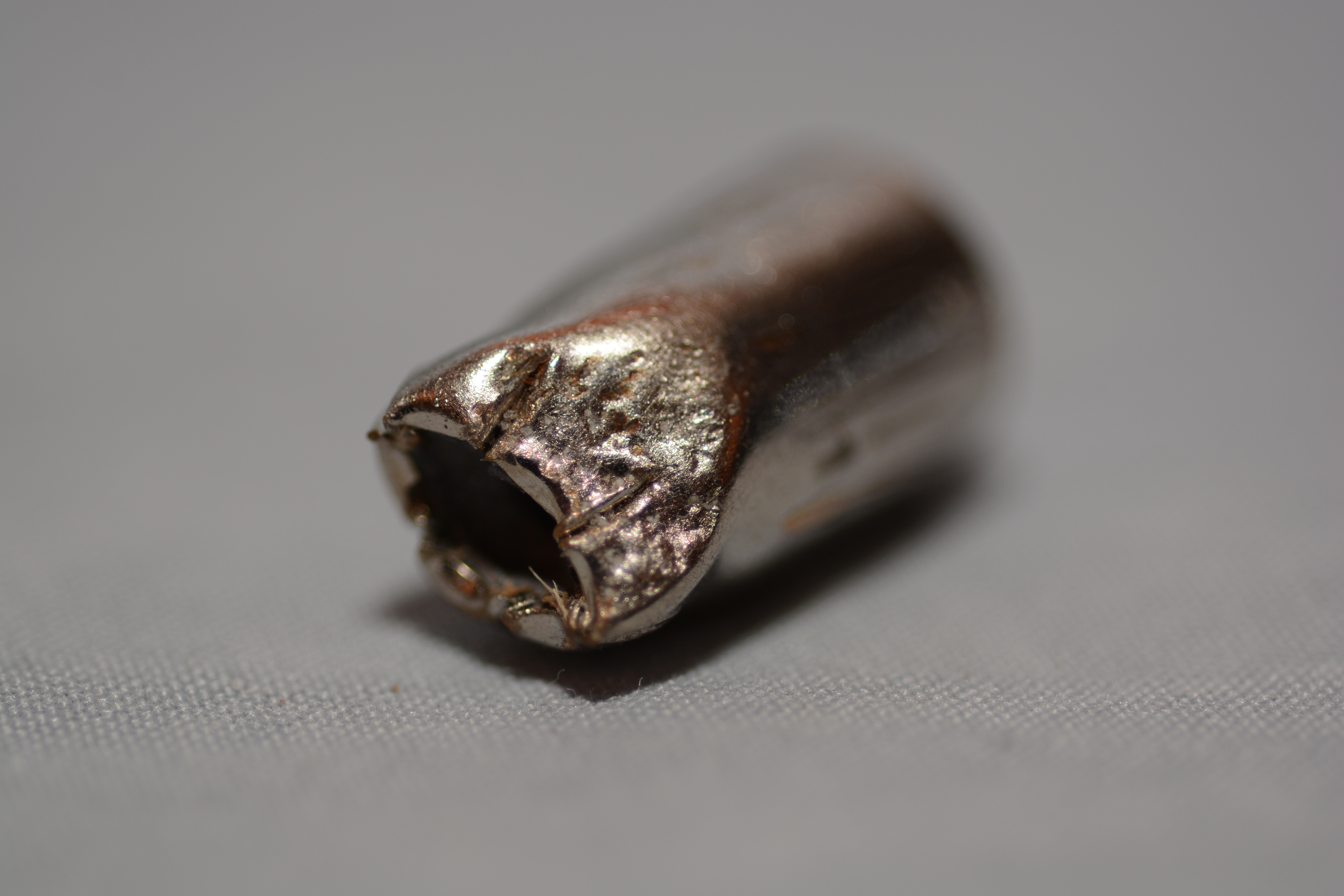

Winchester SilverTip 147 gr  in Tissue Simulation

Winchester SilverTip 147 gr  in Bone and Tissue Simulation



Again, Thank You “Tom from Northfield Township” for all this hard work you have done to help us make informed ammunition choices!
